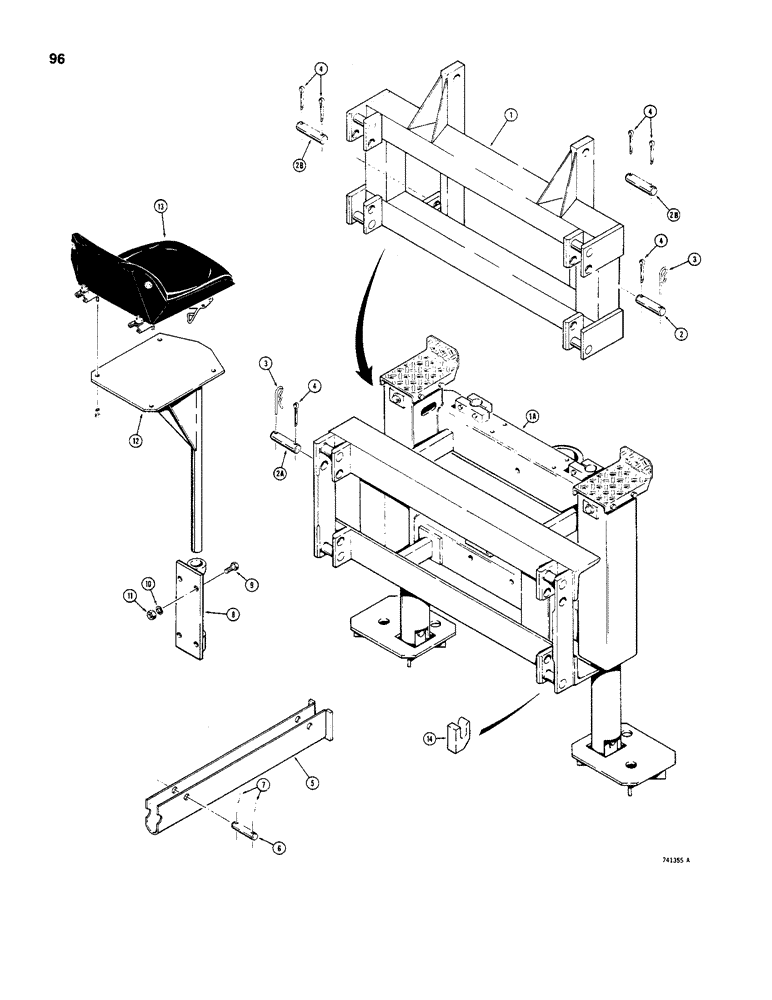

Запчасти Case D100 (7-096) - MOUNTING FRAME AND SEAT, FOR 1500 & 1700 SERIES UNI-LOADERS, ALSO FOR 150M, 170, 180 &190 UNI-LOADER

1

T40677

FRAME - backhoe mounting, used prior to tractor P.I.N. 9813301, use T41523 frame and (2) T40685 pins for service, parts list figure 105

1шт.

1a

T41523

FUNNEL

FRAME - backhoe mounting, used on tractor P.I.N. 9813301 and after, without flow control valve, used T42648 frame, parts list figure 105

1шт.

1a

T42648

FUNNEL

FRAME - backhoe mounting, used on tractor P.I.N. 9813301 and after with flow control valve, parts list figure 105

1шт.

2

T40686

PIN - T40677 frame attaching

2шт.

2a

T40685

PIN

- T41523 and T42648 frame attaching

2шт.

2b

T40685

PIN

- T40677, Serial Range: frame-backhoe

4шт.

3

T40222

SPLIT PIN/SAFETY PIN

PIN - hair, cotter

2шт.

4

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

5

T41551

STOP

STRUT - retaining, for loader lift cylinders, all 150M, 170, 180, 190, 1526, 1530, 1537 models and 1530B models without self-leveling loader

2шт.

5

D55131

STOP

STRUT - retaining, for loader lift cylinders, 1530B models with self-leveling loader and all 1700 series models

2шт.

6

T41554

PIN

- safety stop

4шт.

7

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - hair, 5/16 x 2-25/32 inch

8шт.

8

T41530

PLATE

- seat base

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

12

T40691

SEAT

FRAME - backhoe seat

1шт.

13

T40366

SEAT

- backhoe, parts list Figure 7-90

1шт.

14

T41758

HOOK

- backhoe mounting, welded to Uni-Loader main frame

4шт.
