Запчасти Case D100 (9-54) - MOUNTING FRAME AND SEAT, USED ON 380 CK LOADER BACKHOE

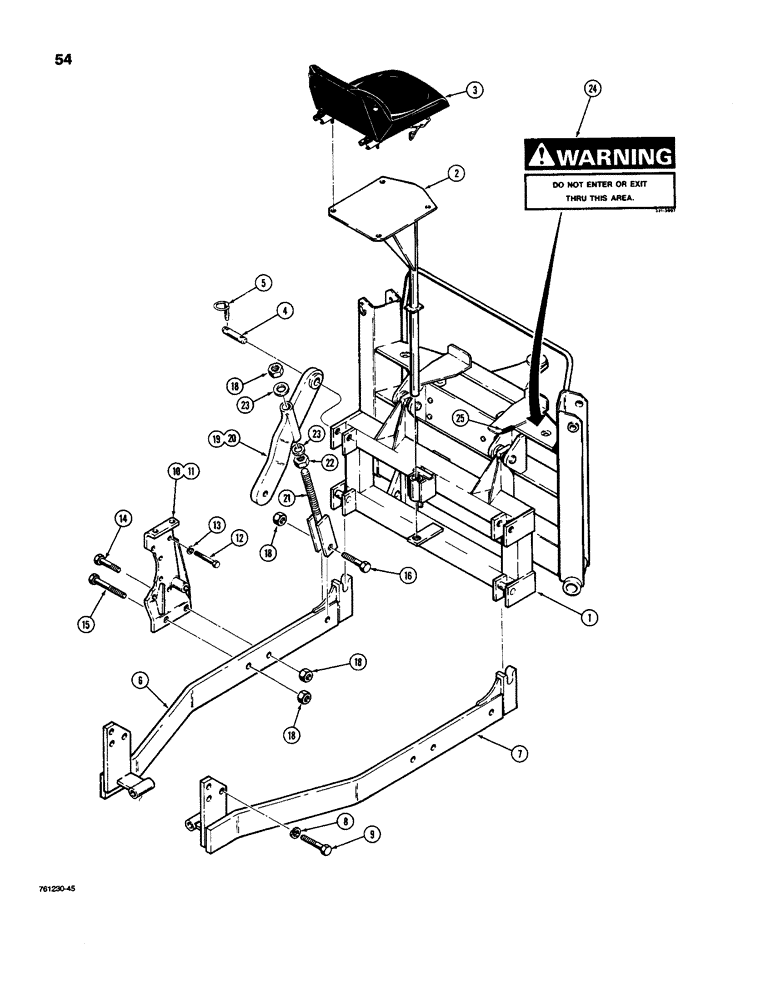

Схема запчастей Case D100 - (9-54) - MOUNTING FRAME AND SEAT, USED ON 380 CK LOADER BACKHOE
18
18
2
25
18
21
20
4
16
24
7
12
1
18
11
5
14
13
19
15
6
3
22
10
9
8
23
23

Артикул

Название

Примечание

Количество

1

D81310

FRAME

- backhoe mounting, parts list figure 9-60

1шт.

2

D76067

FRAME

- backhoe seat

1шт.

3

T40366

SEAT

- backhoe, parts list figure 9-46

1шт.

4

T42308

PIN

- link to mounting frame

2шт.

5

A30338

PIN

- lock

4шт.

6

D75984

ARM

- backhoe mount, right-hand

1шт.

7

D75985

ARM

- backhoe mount, left-hand

1шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

9

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

6шт.

10

D76007

BRACKET

- left-hand arm mount

1шт.

11

D76008

BRACKET

- right-hand arm mount

1шт.

12

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

12шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

14

113-925

BOLT,Hex, 1" - 8 x 3", Gr 5

- hex, 1 NC x 3 inch

2шт.

15

113-926

BOLT,Hex, 1" - 8 x 4", Gr 5

- hex, 1 NC x 4 inch

2шт.

16

113-907

BOLT,Hex, 1" - 8 x 3-1/4", Gr 5

- hex, 1 NC x 3-1/4 inch

2шт.

18

129-100

NUT - hex, self-locking, 1 inch NC

8шт.

19

D76554

LINK

- right-hand

1шт.

20

D76555

LINK

- left-hand

1шт.

21

D75978

ROD

- tension

2шт.

22

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

23

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

- flat, hardened

4шт.

24

321-3997

DECAL

- warning, do not enter or exit

2шт.

25

D43403

LINING

TRIM - rubber

2шт.
