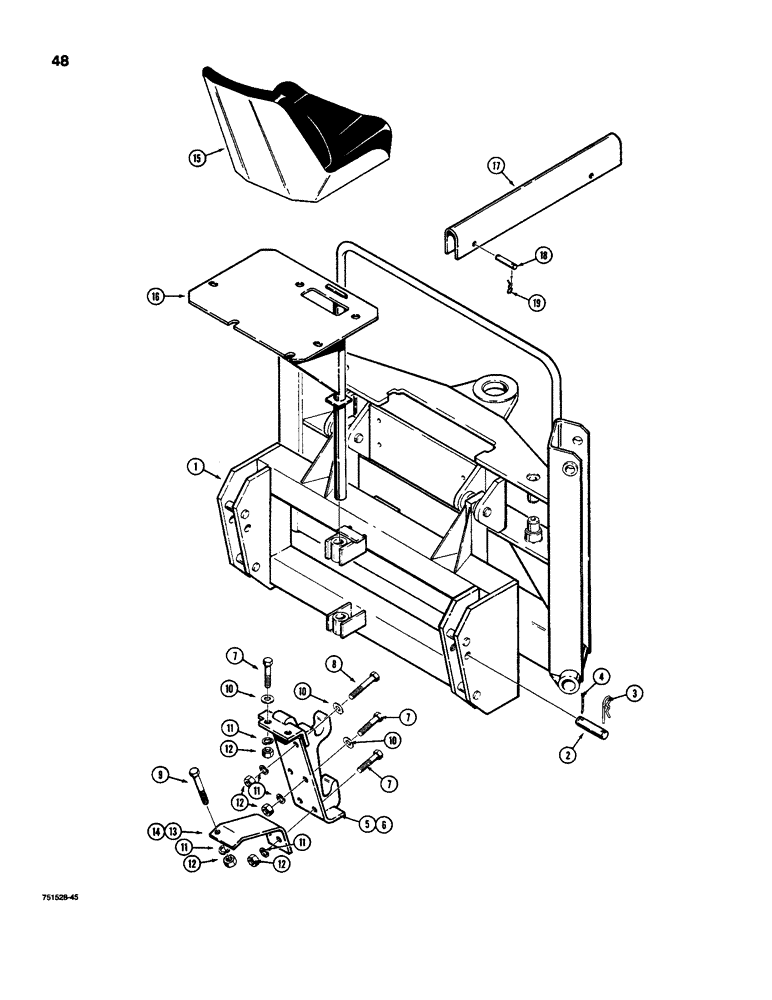

Запчасти Case D100 (9-48) - MOUNTING FRAME AND SEAT, MODEL 1845 UNI-LOADER

1

D70255

FRAME - backhoe, parts list figure 9-56

1шт.

2

T40685

PIN

- Frame attachment

2шт.

3

T40222

SPLIT PIN/SAFETY PIN

PIN - hair, cotter

2шт.

4

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

2шт.

5

D71641

HOOK

- backhoe, left-hand

1шт.

6

D71643

HOOK

- backhoe, right-hand

1шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

12шт.

8

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

9

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

10

R24323

WASHER

- flat, hardened

12шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

18шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

18шт.

13

D70531

TIE-ROD

BRACE - right-hand hook

1шт.

14

D70532

TIE-ROD

BRACE - left-hand hook

1шт.

15

D56576

SEAT

- operators, parts list figure 9-46

1шт.

16

D70380

POST

- seat

1шт.

17

D68960

STOP

STRUT - retaining, lift cylinders

2шт.

18

D63534

PIN

- stop

4шт.

19

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

8шт.
