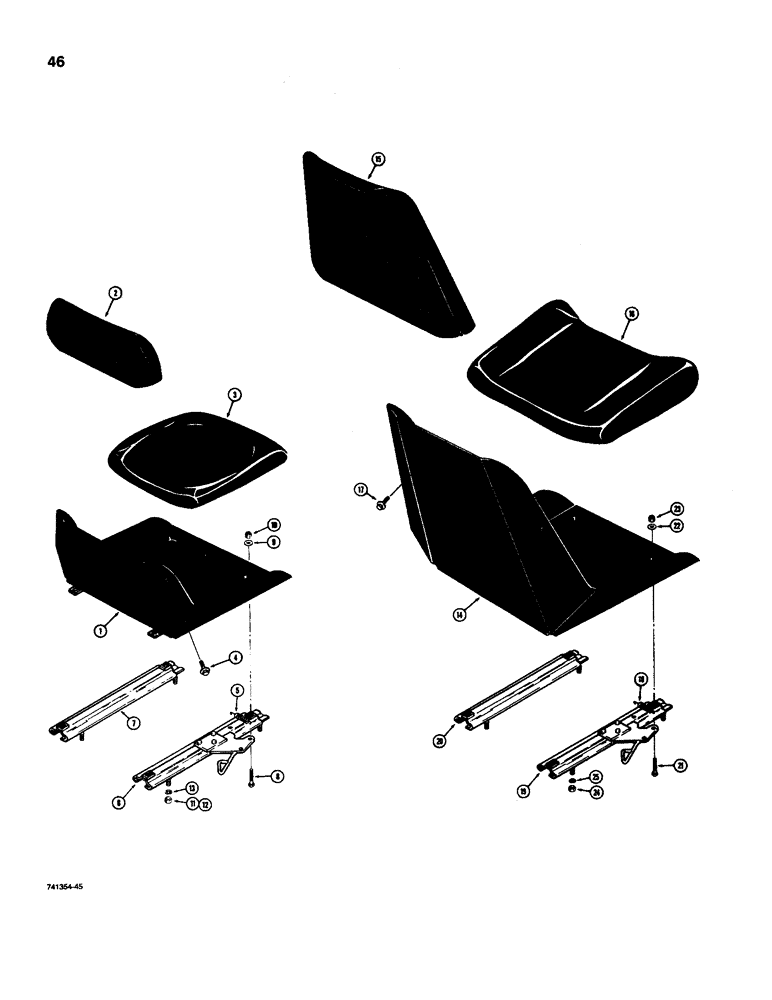

Запчасти Case D100 (9-46) - BACKHOE SEAT, USED 1500 SERIES, 1700 SERIES, 150M, 170, 180 & 190 UNI-LOADER & 380CK LOADER BACKHOE

T40366

SEAT

ASSEMBLY - backhoe operators, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

D53696

CUSHION

- back

1шт.

3

D53697

CUSHION

- bottom

1шт.

4

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

- with internal tooth lock washer, 1/4 NC x 3/4 inch

5шт.

5

D53344

SPRING

- adjuster return, 1/2 inch (13 mm) long, if used

1шт.

5

D55954

SPRING

- adjuster return, 1-11/16 inch (43 mm) long, if used

1шт.

6

D53585

CUSHION

SLIDE - seat, adjuster

1шт.

7

D53586

SLIDE

- seat, non-adjusting

1шт.

8

414-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

- hex, 5/16 NF x 7/8 inch

4шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16 inch

4шт.

10

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking, 5/16 inch NF

4шт.

11

25-115

NUT,5/16"-24, G5

- hex, 5/16" NF, if used

4шт.

12

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

4шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

D56576

SEAT

ASSEMBLY - backhoe operators, Includes: Ref. 14 - 25

1шт.

14

NSS

NOT SOLD SEPARAT

SHELL - seat, backhoe, for 1830 and 1845 uni-loaders

1шт.

15

D53583

CUSHION

- back, backhoe seat, for 1830 and 1845 uni-loaders

1шт.

16

D53584

CUSHION

- bottom, backhoe seat, for 1830 and 1845 uni-loaders

1шт.

17

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

- with internal tooth lock washer, 1/4 NC x 3/4 inch, backhoe seat, for 1830 and 1845 uni-loaders

5шт.

18

D55954

SPRING

- return, adjuster, backhoe seat, for 1830 and 1845 uni-loaders

1шт.

19

D53585

CUSHION

SLIDE - seat, adjuster, backhoe seat, for 1830 and 1845 uni-loaders

1шт.

20

D53586

SLIDE

- seat, non-adjusting, backhoe seat, for 1830 and 1845 uni-loaders

1шт.

21

414-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

- hex, 5/16 NF x 7/8 inch, backhoe seat, for 1830 and 1845 uni-loaders

4шт.

22

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16 inch, backhoe seat, for 1830 and 1845 uni-loaders

4шт.

23

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking, 5/16 inch NF, backhoe seat, for 1830 and 1845 uni-loaders

4шт.

24

25-115

NUT,5/16"-24, G5

- hex, 5/16" NF, backhoe seat, for 1830 and 1845 uni-loaders

4шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , backhoe seat, for 1830 and 1845 uni-loaders 5/16"

4шт.
