Запчасти Case D100 (9-44) - G100905 SWING CYLINDER, CYLINDER PART NUMBER STAMPED ON GLAND

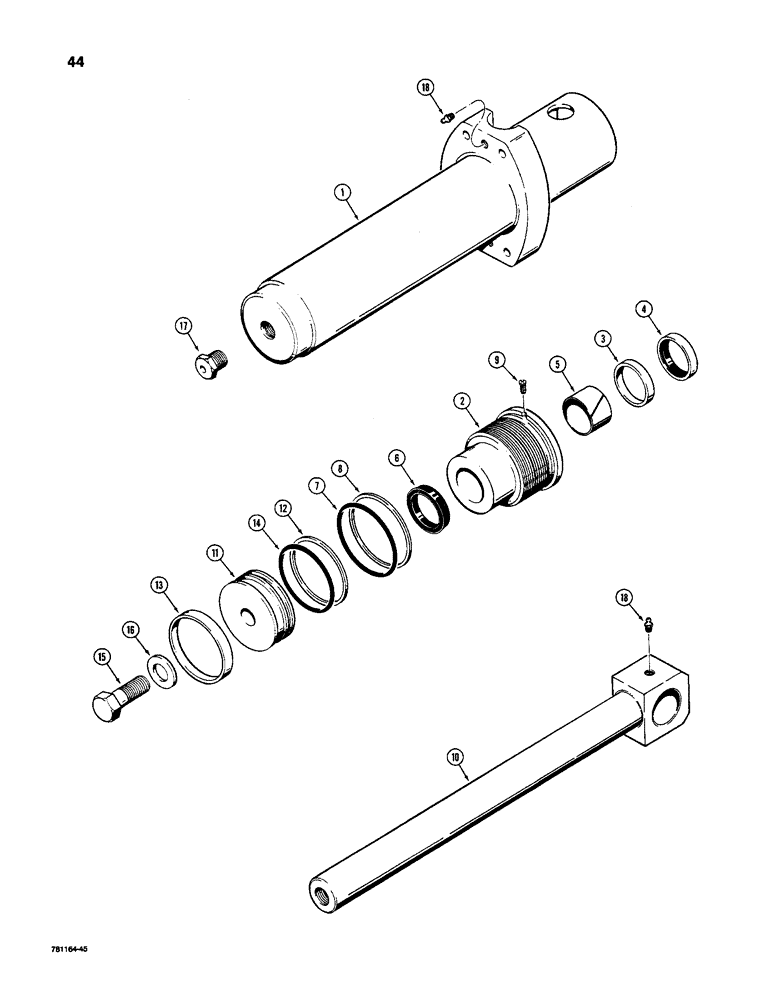

Схема запчастей Case D100 - (9-44) - G100905 SWING CYLINDER, CYLINDER PART NUMBER STAMPED ON GLAND
5
18
8
15
18
6
14
12
4
11
1
9
10
2
16
13
7
17
3

Артикул

Название

Примечание

Количество

G100905

CYLINDER ASSY.

CYLINDER - swing, 12-3/4 inch (324 mm) x 3 inch (76 mm) ID, Includes: Ref. 1 - 18

2шт.

1

G100906

TUBE,18.55" L

- cylinder

1шт.

G34328

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod

1шт.

Part of Seal Kit P/N G34656.

1шт.

5

G34302

BEARING

- center

1шт.

Part of Seal Kit P/N G34656.

1шт.

6

D36969

CUP

SEAL - rod, see G100776 for service option

1шт.

Part of Seal Kit P/N G34656.

1шт.

7

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G34656.

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34656.

1шт.

9

264-2444

SELF-TAP SCREW,Pan HD, #8 - 32 x 1/4"

SCREW - self-tapping, No. 8 NC x 1/4 inch

1шт.

10

G100912

ROD

- piston, 1-1/2 inch (38 mm) diameter

1шт.

11

G33747

PISTON

- cylinder, double groove

1шт.

12

G32034

RING

- backup

1шт.

Part of Seal Kit P/N G34656.

1шт.

13

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

1шт.

Part of Seal Kit P/N G34656.

1шт.

14

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit P/N G34656.

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

17

A43250

BREATHER

VALVE - relief

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

3шт.

G34656

SEAL

KIT - seal, Includes: Ref. 4 - 8 and 12 - 14

1шт.

G100776

SEAL

- rod, service option - extreme heat or cold, see D36969 for service option

1шт.

Выбрано товаров: 30
