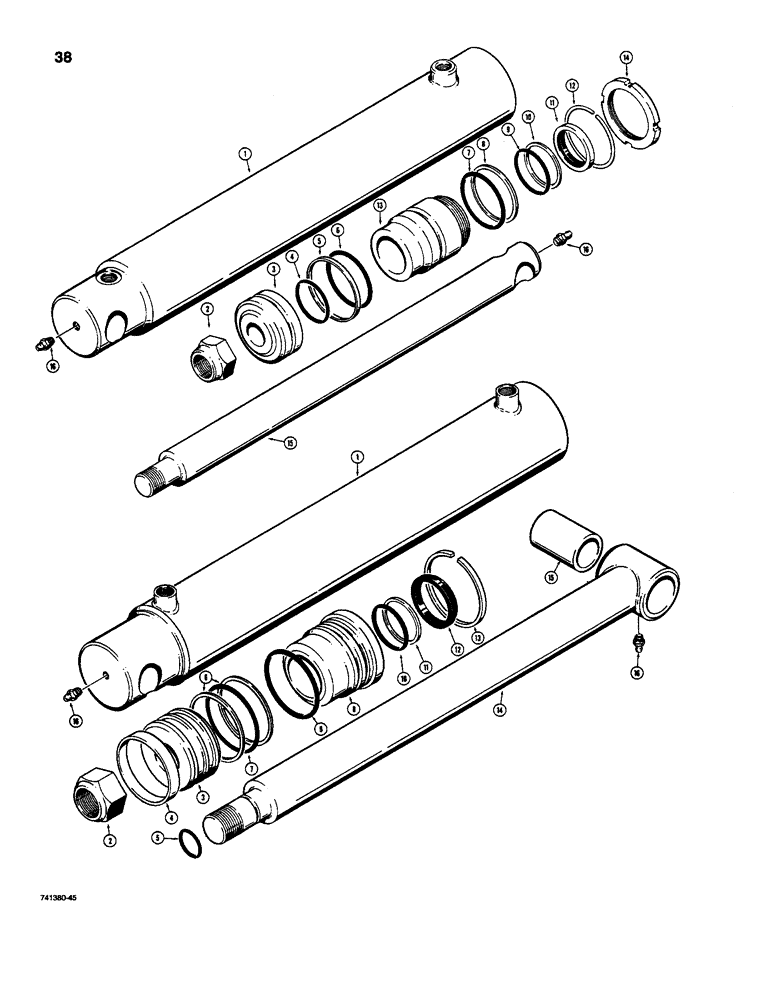

Запчасти Case D100 (9-38) - H530501 STABILIZER CYLINDER, CESSNA NO. 41094-FB (ON ROD END CYLINDER) H587782 STABILIZER CYLINDER L

H530501

CYLINDER

- stabilizer, 15 (381) stroke x 2-1/2 inch (64 mm) ID, Includes: Ref. 1 - 16

2шт.

1

H120279

CYLINDER

TUBE - cylinder

1шт.

2

131-269

NUT - hex, self-locking, 7/8 inch NF

1шт.

3

H120295

PISTON ASSY.

PISTON - cylinder

1шт.

H120311

GASKET KIT

KIT - seal, Includes: Ref. 4 - 12

1шт.

4

T55938

OIL SEAL

RING - wear, 1-1/2 ID x 1/8 inch wide (replaces 238-5222)

1шт.

5

T31057

SEAL ASSY.

RING - backup, piston

1шт.

6

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

8

H754994

RUBBER

RING - backup, gland, large

1шт.

9

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- gland, small

1шт.

10

238-5327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

Gland, large (Replaces H745695) -327, 70 Duro, 1.725" ID x .210" Thk

1шт.

11

H758672

OIL SEAL

RING - backup, gland

1шт.

12

H166314

RING

- retaining, gland

1шт.

13

T31053

BEARING

GLAND - cylinder

1шт.

14

H745786

BEARING LOCK NUT

- ring style, gland

1шт.

15

H120287

ROD

- piston

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

H587782

CYLINDER BLOCK

CYLINDER - stabilizer, 17-3/4 (451) stroke x 3 inch (76 mm) ID, Includes: Ref. 1 - 16

2шт.

1

H596098

CYLINDER

TUBE - cylinder

1шт.

2

131-1194

LOCK NUT,1 1/4"-12, GA

NUT - hex, self-locking, 1-1/4 inch NF

1шт.

3

H274050

PISTON ASSY.

PISTON - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - wear

1шт.

Part of Cylinder Repair Kit P/N H596072.

1шт.

5

H744730

O-RING

- piston, small

1шт.

Part of Cylinder Repair Kit P/N H596072.

1шт.

6

H754614

WASHER

RING - backup, piston

2шт.

Part of Cylinder Repair Kit P/N H596072.

1шт.

7

H743583

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- piston, large

1шт.

Part of Cylinder Repair Kit P/N H596072.

1шт.

8

H274068

GLAND

- cylinder

1шт.

9

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- gland, large

1шт.

Part of Cylinder Repair Kit P/N H596072.

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - gland, small

1шт.

Part of Cylinder Repair Kit P/N H596072.

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, gland

1шт.

Part of Cylinder Repair Kit P/N H596072.

1шт.

12

H223123

WIPER

- rod

1шт.

Part of Cylinder Repair Kit P/N H596072.

1шт.

13

H223263

ELECTRICAL WIRE

RING - lock, gland

1шт.

Part of Cylinder Repair Kit P/N H596072.

1шт.

14

H596080

ROD

- piston, Includes: Ref. 15

1шт.

15

H274043

BUSHING

- rod eye

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

H596072

SEAL ASSY.

KIT - cylinder repair, Includes: Ref. 4 (NSS) through 7 (H743583) and 9 (A27996) - 13 (H223263)

1шт.
