Запчасти Case D100 (9-20) - D52901 FLOW CONTROL VALVE, D64103 FLOW CONTROL VALVE

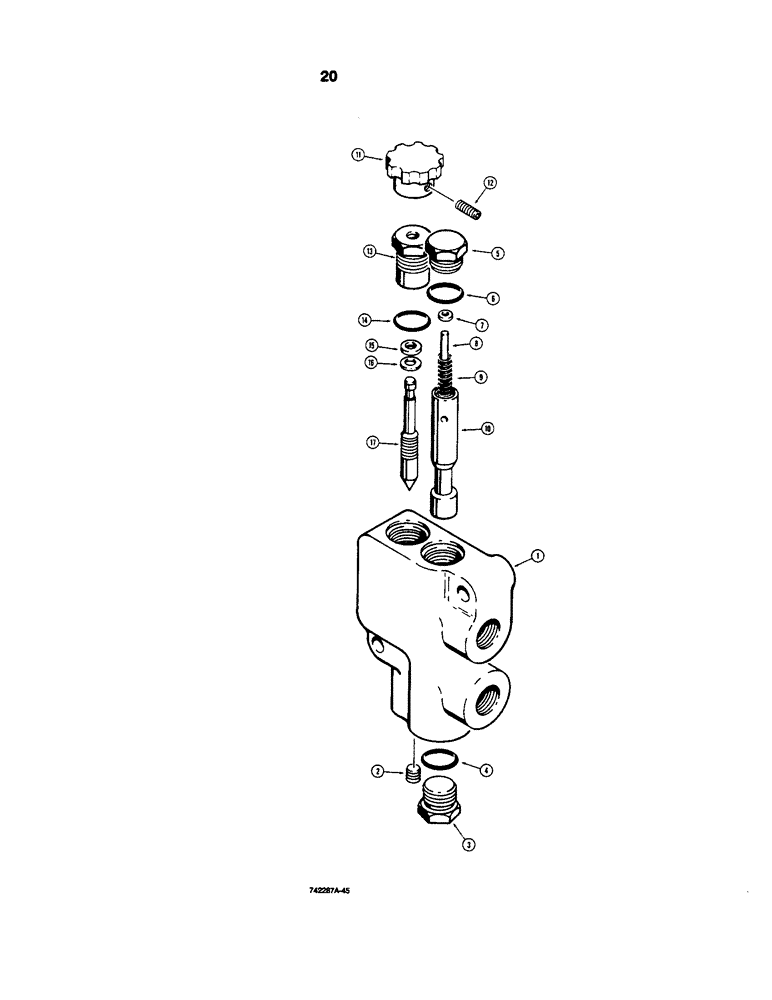

Схема запчастей Case D100 - (9-20) - D52901 FLOW CONTROL VALVE, D64103 FLOW CONTROL VALVE
6
3
15
17
7
9
16
12
8
14
10
13
4
1
5
11
2

Артикул

Название

Примечание

Количество

D52901

VALVE

- flow control, Gresen No. CFDA-50, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

3

D54275

PLUG

- special, solid

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

D54270

CAP

PLUG - special, hollow

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

D54271

SHIM

- spring

1шт.

8

D54273

GUIDE

- spring

1шт.

9

D54272

VALVE SPRING

SPRING - spool

1шт.

10

D54274

SPOOL

- floating

1шт.

11

D54188

KNOB

- flow control valve

1шт.

12

178-859

SCREW,Hdls Hex Skt, #10 - 32 x 3/4", Cup Pt

- set, hex socket headless, No. 10 NF x 3/4 inch, cup point

1шт.

13

D54189

PLUG

- special

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

R12509

RING

- backup

1шт.

16

D54268

SEAL

- needle

1шт.

17

D54269

NEEDLE

- valve

1шт.

Выбрано товаров: 18
