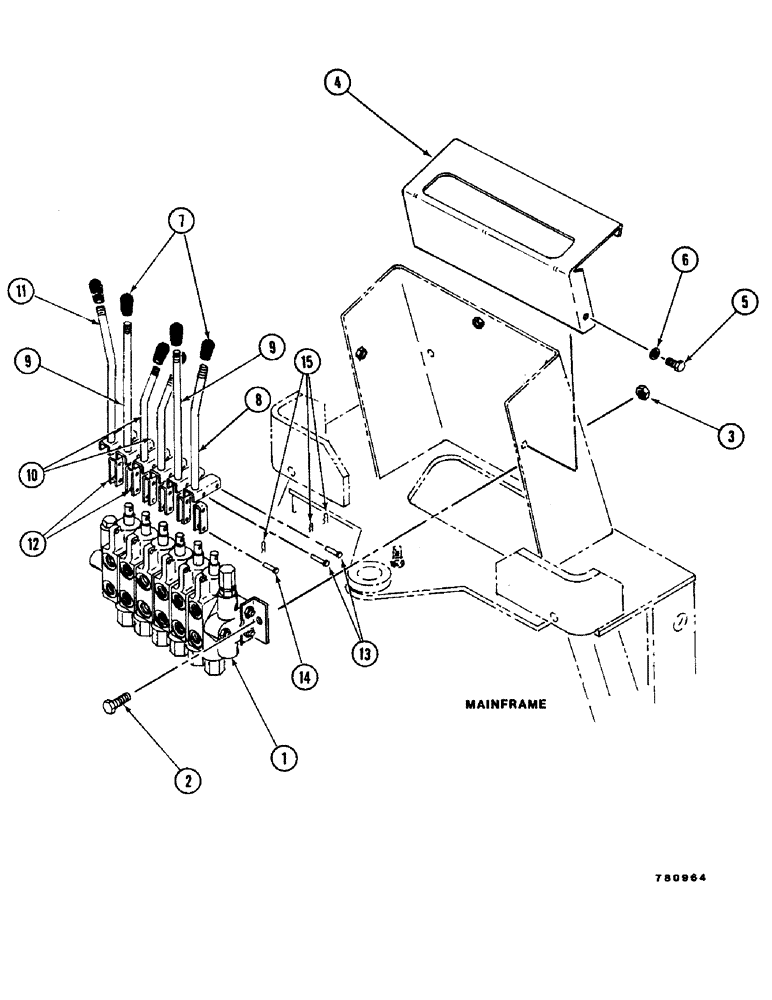

Запчасти Case D-70 (14) - D-70 CONTROLS, VALVE INSTALLATION

1

H625244

LOCK VALVE

CONTROL VALVE ASSEMBLY (See Figure36)

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

2шт.

4

H332312

COVER - valve

1шт.

5

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

BOLT - NC HH (5/16 x 3/4)

3шт.

6

195-521

WASHER,5/16", SAE

- flat (5/16)

3шт.

7

A14051

GRIP

KNOB

6шт.

8

H629717

LEVER

- boom

1шт.

9

H629709

LEVER

- swing and crowd

2шт.

10

H629782

LEVER

- stabilizer

2шт.

11

H629691

LEVER

- bucket

1шт.

12

H339176

DRAG LINK

LINK - valve

6шт.

13

H343822

AXLE PIN

PIN - valve lever

12шт.

14

H344648

AXLE PIN

PIN - link

6шт.

15

136-151

COTTER PIN,Int, 1/16" x .036"

PIN - hair

18шт.
