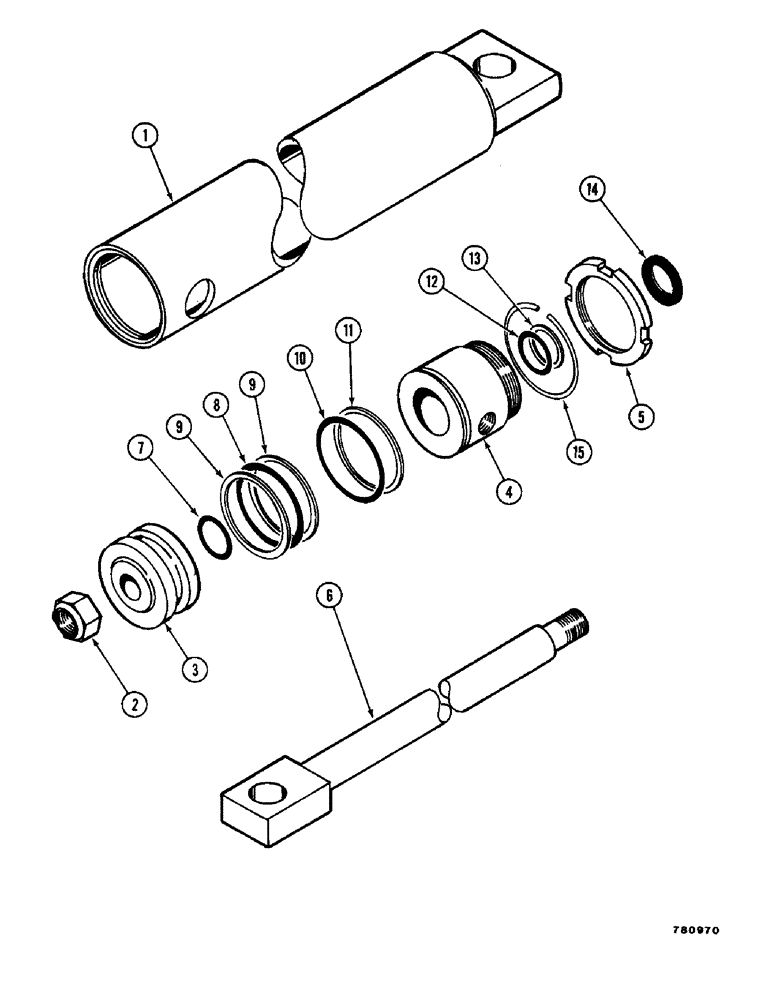

Запчасти Case D-70 (48) - BACKFILL BLADE LIFT AND ANGLE CYLINDER ASSEMBLY

H504076

CYLINDER BLOCK

BACKFILL LIFT AND ANGLE CYLINDER ASSEMBLY

2шт.

1

H072215

BARREL

1шт.

2

131-172

LOCK NUT,3/4"-16, GA

NUT - hex (3/4-16)

1шт.

3

A35897

PISTON ASSY.

PISTON

1шт.

4

H070078

BEARING

1шт.

5

H745786

BEARING LOCK NUT

- bearing

1шт.

6

H066571

ROD - piston

1шт.

H507350

GASKET KIT

KIT - seal repair

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rod static

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - bearing static

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

15

NSS

NOT SOLD SEPARAT

WIRE - lock

1шт.
