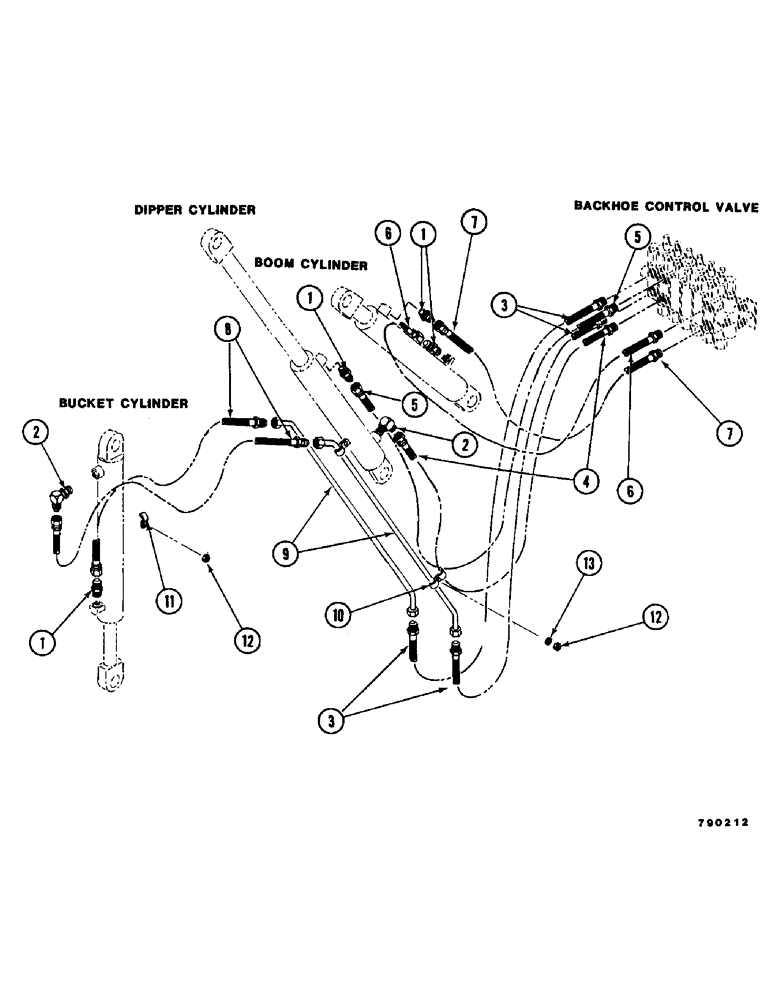

Запчасти Case D-70 (32) - D-70 BOOM, DIPPER, BUCKET HYDRAULIC LINES

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB x 9/16 JIC M)

4шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

2шт.

3

H384396

HOSE ASSY.

HOSE - 3/8 x 41 (9/16 ORB x 9/16 JIC M)

2шт.

4

H384412

HOSE

- 3/8 x 63 (9/16 ORB x 9/16 JIC Fe Sw)

1шт.

5

H384404

HOSE

- 3/8 x 78 (9/16 ORB x 9/16 JIC Fe Sw)

1шт.

6

H384438

HOSE ASSY.

HOSE - 3/8 x 36 (9/16 ORB x 9/16 JIC Fe Sw)

1шт.

7

H384420

HOSE ASSY.

HOSE - 3/8 x 48 (9/16 ORB x 9/16 JIC Fe Sw)

1шт.

8

H384388

HOSE ASSY.

HOSE - 3/8 x 48 (9/16 JIC M x 9/16 JIC Fe Sw)

2шт.

9

H627554

TUBE,0.375" OD

(3/8 OD)

2шт.

10

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

2шт.

11

H349720

CLAMP

4шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

6шт.

13

195-525

WASHER,3/8", SAE

- Flat (3/8)

4шт.
