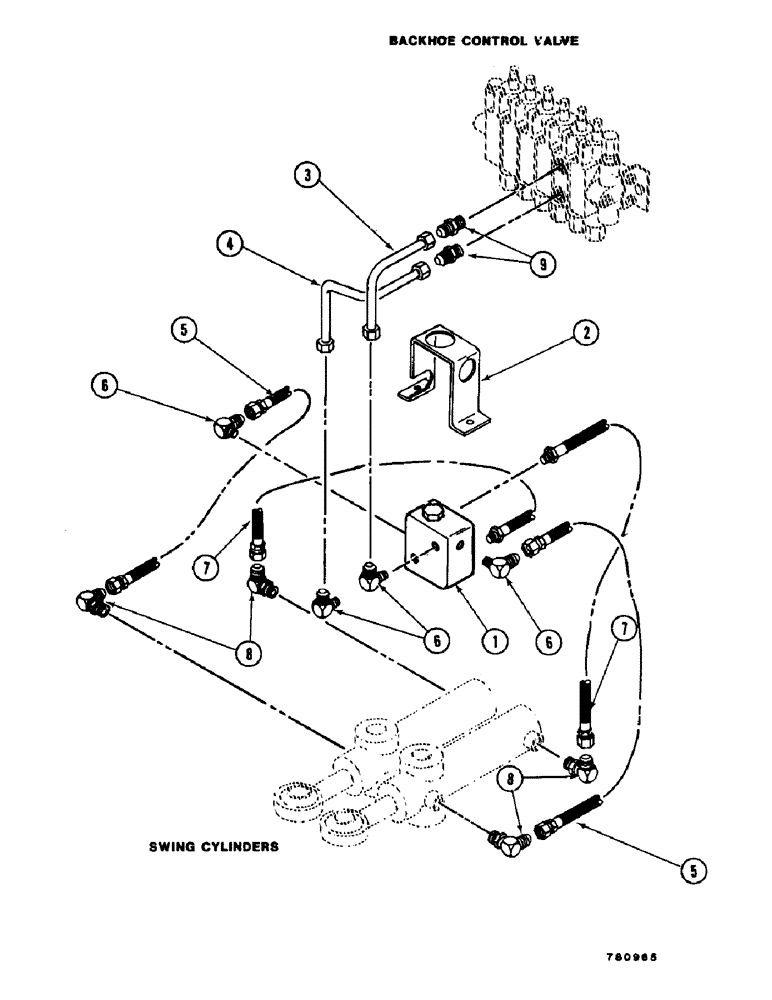

Запчасти Case D-70 (28) - D-70 SWING HYDRAULIC LINES

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

VALVE - relief and anti-cavitation (see page 38)

1шт.

2

H335117

BRACKET

- valve

1шт.

3

H627562

TUBE,0.375" OD x 3, 2.62" L

- 3/8 OD

1шт.

4

H627570

TUBE,0.375" OD

- 3/8 OD

1шт.

5

H168658

HYDRAULIC HOSE,6.35 mm ID x 508.00 mm, SAE 100R1

6.35 mm ID x 508.00 mm

2шт.

6

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees (1/4 MP x 9/16 JIC M)

4шт.

7

H169599

HOSE ASSY.

HOSE - 1/4 x 16 (1/4 MP x 9/16 JIC Fe Sw)

2шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

4шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB x 9/16 JIC M)

2шт.
