(14) - BACKHOE BUCKETS (OPTIONAL TYPES), 24" TRENCHING BUCKET (MACHINERY ITEM)

Запчасти Case 36 (14) - BACKHOE BUCKETS (OPTIONAL TYPES), 24" TRENCHING BUCKET (MACHINERY ITEM)

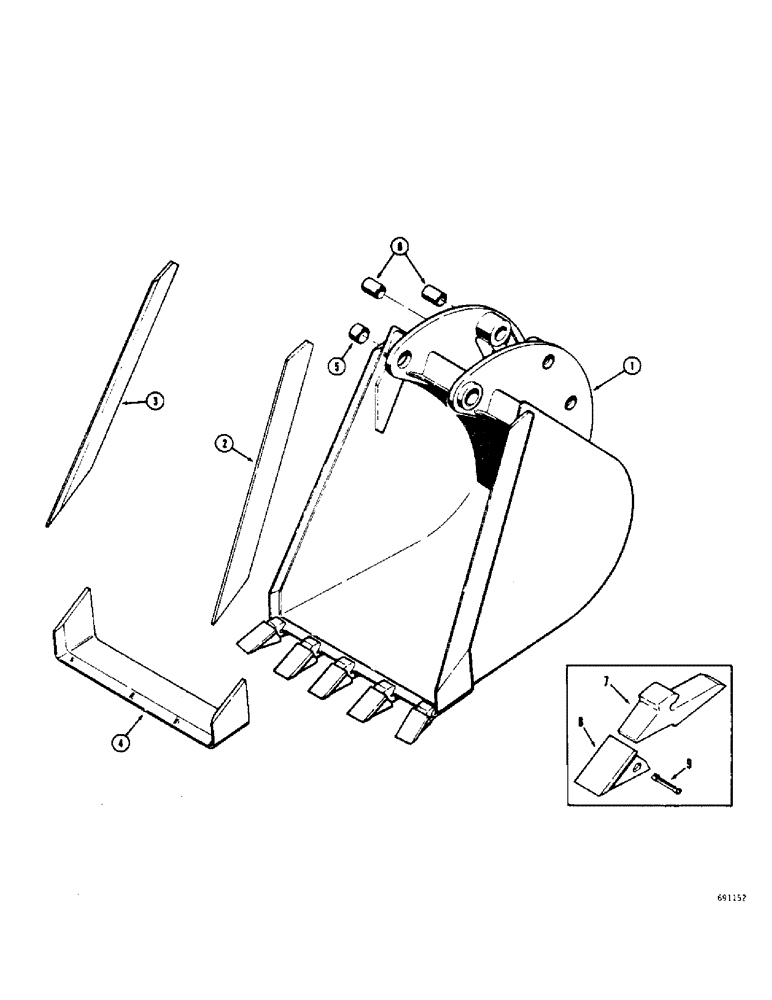

Схема запчастей Case 36 - (14) - BACKHOE BUCKETS (OPTIONAL TYPES), 24" TRENCHING BUCKET (MACHINERY ITEM)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D41569

BUCKET ASSEMBLY - backhoe, trenching (24" wide) When replacing complete bucket, order L51104 bucket and L80499 kit for service, Includes: Ref. 1 - 9

1шт.

L80499 kit consists of (2) L52209 links and (1) L51109 pin which are listed on figure 12.

1шт.

L51104

BUCKET ASSEMBLY - backhoe, trenching (24" wide high capacity), Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - backhoe, trenching (24" wide)

1шт.

2

D41675

BLADE

- cutting, R.H. side

1шт.

3

D41674

BLADE - cutting, L.H. side

1шт.

4

D41673

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket ear, at dipper arm

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- bucket ear, at bucket link pin holes

4шт.

D48035

TOOTH

ASSEMBLY - backhoe bucket, Includes: Ref. 7 - 9

5шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D39093

TOOTH

POINT - tooth

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point

1шт.

D41570

BUCKET ASSEMBLY - backhoe, trenching (30" wide) When replacing complete bucket, order L53132 bucket and L80499 kit for service, Includes: Ref. 1 - 9

1шт.

L80499 kit consists of (2) L52209 links and (1) L51109 pin which are listed on figure 12.

1шт.

L53132

BUCKET ASSEMBLY - backhoe, trenching (30" wide high capacity), Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - backhoe, trenching (30" wide)

1шт.

2

D41675

BLADE

- cutting, R.H. side, trenching bucket

1шт.

3

D41674

BLADE - cutting, L.H. side, trenching bucket

1шт.

4

D41870

EDGE, CUTTING

BLADE - cutting, center, trenching bucket

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket ear, at dipper arm, trenching

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- bucket ear, at bucket link pin holes, trenching

4шт.

D48035

TOOTH

ASSEMBLY - backhoe bucket, trenching, Includes: Ref. 7 - 9

6шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth, trenching bucket

1шт.

8

D39093

TOOTH

POINT - tooth, trenching bucket

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point, trenching bucket

1шт.
