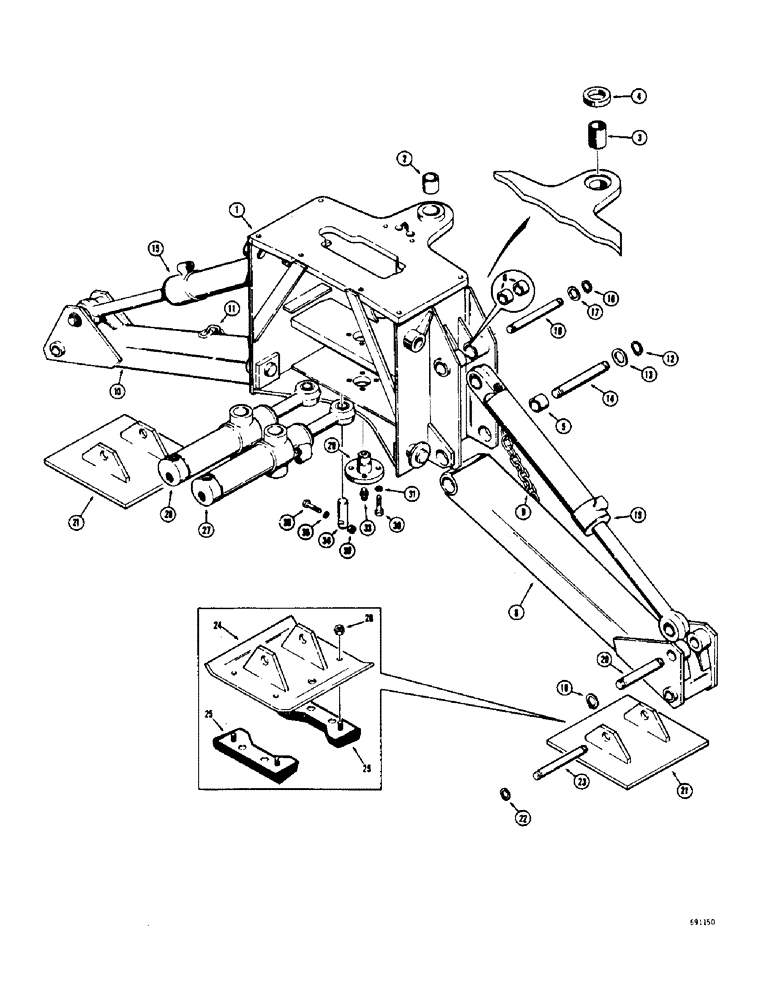

Запчасти Case 36 (08) - BACKHOE MOUNTING FRAME AND STABILIZERS

1

D45568

FRAME - backhoe mounting, Includes: Ref. 2 - 6

1шт.

2

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- upper, frame to swing tower

1шт.

3

D43508

BUSHING

- lower, frame to swing tower

1шт.

4

D44613

SPACER

WASHER - special, lower mounting

1шт.

5

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- stabilizer leg mounting

4шт.

6

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer cylinder mounting

4шт.

8

D43292

SUPPORT ASSY.

LEG - stabilizer, R.H. (When stock is exhausted, order L55058 leg for service), Includes: Ref. 9

1шт.

8

L55058

SUPPORT ASSY.

LEG - stabilizer, R.H., Includes: Ref. 9

1шт.

9

D43895

CHAIN (AG)

CHAIN - transport

1шт.

10

D43291

SUPPORT ASSY.

LEG - stabilizer, L.H. (When stock is exhausted, order L55058 leg for service), Includes: Ref. 11

1шт.

10

L55058

SUPPORT ASSY.

LEG - stabilizer, L.H., Includes: Ref. 11

1шт.

11

D43895

CHAIN (AG)

CHAIN - transport

1шт.

12

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

13

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel (2-1/16")

4шт.

14

D45523

PIN,50.8mm OD x 276.35mm L

- stabilizer to mounting frame

2шт.

15

REF

INSTRUCTION

CYLINDER - hydraulic, stabilizer (4" I.D. x 21-3/8" stroke) See figure 58 for proper cylinder

2шт.

16

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

17

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, steel (1-5/16")

4шт.

18

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - stabilizer cylinder, closed end

2шт.

19

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

20

D42912

AXLE PIN

PIN - stabilizer cylinder, rod end

2шт.

21

D42767

PAD

FOOT - stabilizer, cleated

2шт.

22

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

23

D42785

AXLE PIN

PIN - stabilizer foot

2шт.

24

D43295

FOOT - stabilizer, street and cemetery pad (Optional)

2шт.

25

D40469

SHOE (ASSY)

PAD - rubber, D43295 stabilizer foot (Optional)

4шт.

26

D29712

SPECIAL NUT

- hex., special

8шт.

27

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. swing (4-1/2" I.D. x 11-3/8" stroke) See figure 58 for proper cylinder

1шт.

28

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. swing (4-1/2" I.D. x 11-3/8" stroke) See figure 58 for proper cylinder

1шт.

29

D48220

PIN

- swing, Serial Range: cylinder-frame

4шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

16шт.

31

92-8

LOCK WASHER,1/2"

16шт.

32

219-39

FITTING

- grease, 45 degrees (1/8" NPT) Upper (Not shown)

2шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) Lower

2шт.

34

D47866

PIN,38.1mm OD x 139.7mm L

- swing cylinder to swing tower

2шт.

35

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

2шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

37

25-1010

NUT,5/8"-11, G5

2шт.
