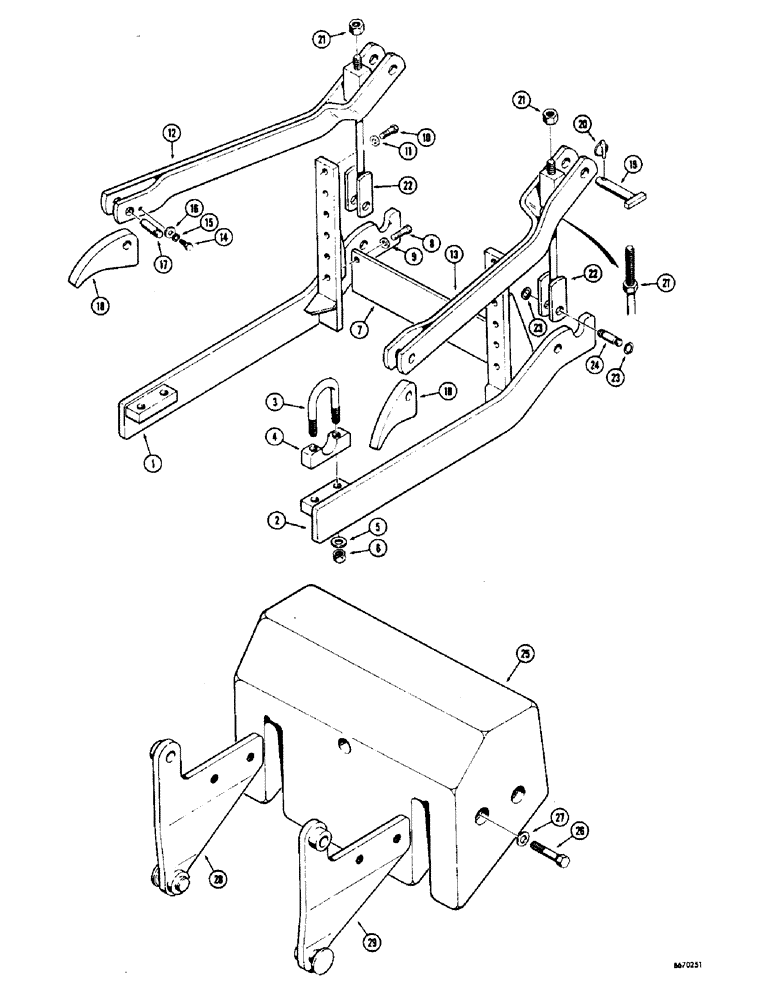

Запчасти Case 36 (06) - BACKHOE MOUNTING PARTS AND COUNTERWEIGHT, BACKHOE MOUNTING

1

D37322

SUPPORT ARM - lower (R.H.)

1шт.

2

D37323

SUPPORT ARM - lower (L.H.)

1шт.

3

D38924

"U" BOLT - support

2шт.

4

D31787

CLAMP

- pivot shaft

2шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

6

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

4шт.

7

D37319

PLATE - center, R.H. to L.H. lower support arm

1шт.

8

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

2шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

10

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

10шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

10шт.

12

D39496

SUPPORT ARM - upper (R.H.)

1шт.

13

D39497

SUPPORT ARM - upper (L.H.)

1шт.

14

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

15

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

2шт.

17

D39423

PIN - mounting

2шт.

18

D39422

LUG - main frame

2шт.

19

D38709

PIN

- anchor, upper support arm to backhoe mounting frame

2шт.

20

D33805

PIN

KLIK PIN - pin retaining

2шт.

21

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

4шт.

22

D37097

ROD

TENSION ROD - upper to lower support arm

2шт.

23

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

24

D33816

PIN

- mounting rod to lower support arm

2шт.

25

D38567

COUNTERWEIGHT - rear, 2500 lbs.

1шт.

26

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, , Counterweight Hex, 1"-8 x 5", G5

4шт.

27

195-53

WASHER,1" x 2" x .134"

- plain (1"), counterweight

4шт.

28

D38885

BRACKET - counterweight mounting (L.H.)

1шт.

29

D38886

BRACKET - counterweight mounting (R.H.)

1шт.
