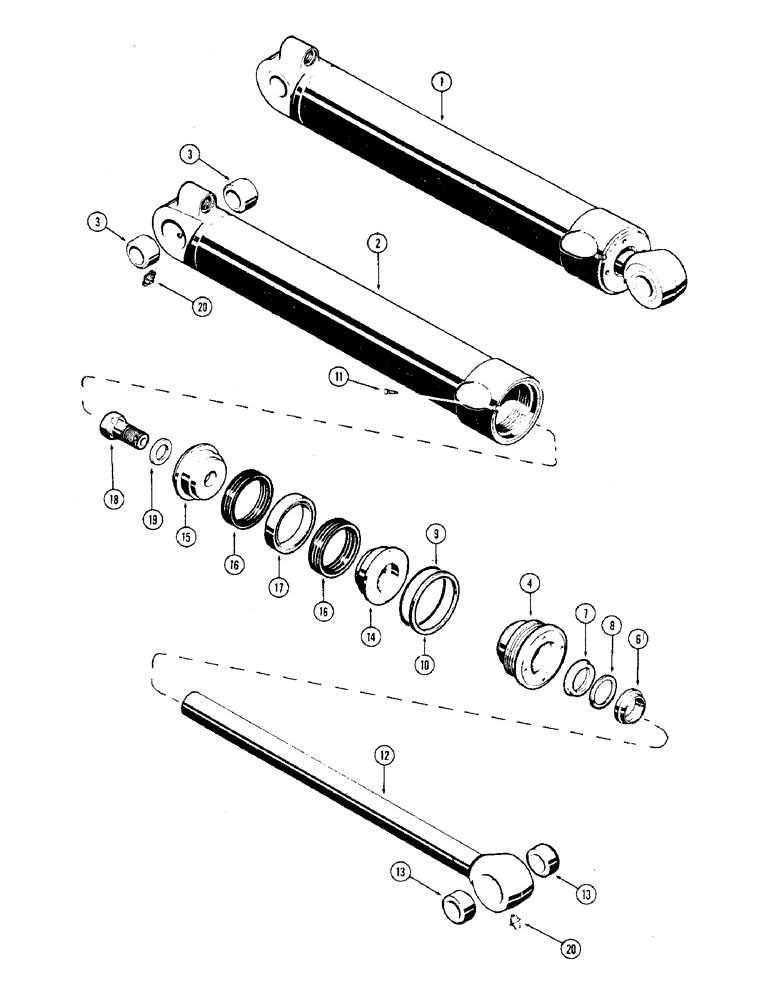

Запчасти Case 36 (88) - D42628 BUCKET CYL. 4" DIA. CYL. W/27-1/4" STROKE W/STEP TYPE OUTER WIPER & INNER BUSHING

1

D42628

CYLINDER

ASSY. - bucket, Includes: Ref. 2 - 20

1шт.

2

D43351

CYLINDER

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

D39368

GLAND

ASSY. - w/bushing

1шт.

D42877

GLAND

REPAIR KIT - gland, Includes: Ref. 6 - 11

1шт.

6

D39360

WIPER

- piston rod, outer (Step type)

1шт.

7

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4 x 2-3/4 x 7/16")

1шт.

8

D39539

RING

- rod seal back-up

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

10

D27382

RING

- gland "O" ring back-up

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

D38957

PISTON ROD

ROD ASSY. - piston (2-1/4" dia.), Includes: Ref. 13

1шт.

13

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

14

D49168

PISTON

- split (Rod end) (Replaces D38958)

1шт.

15

D46930

PISTON

- split (Bolt end) (Replaces D28370)

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

19

D36434

WASHER

- piston bolt

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.
