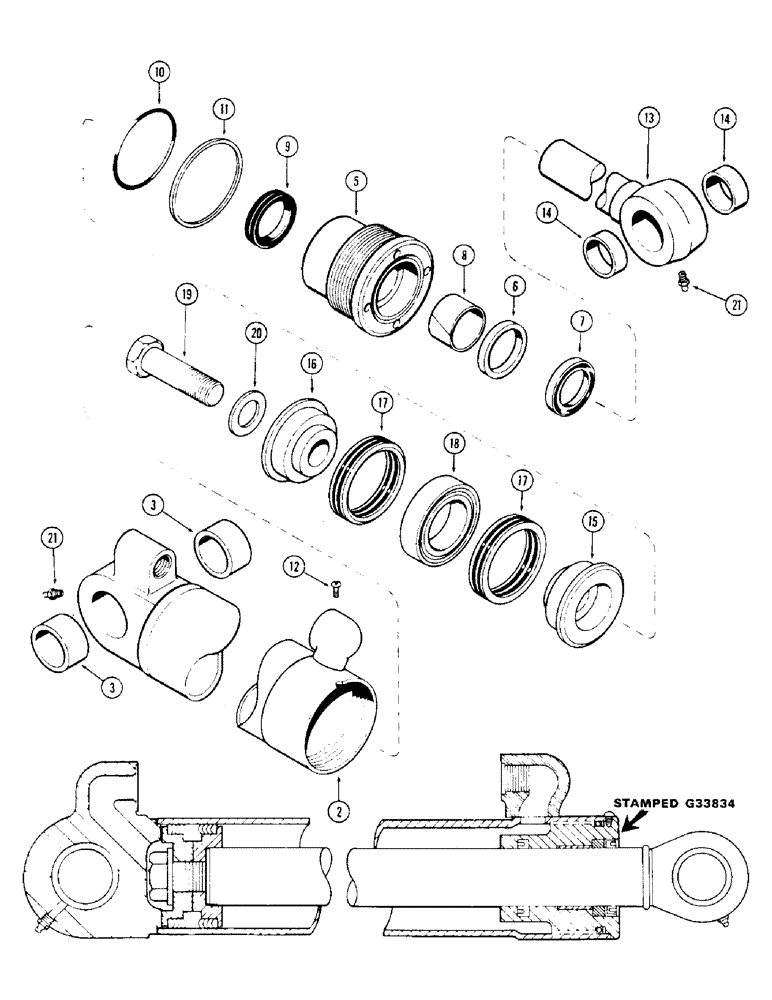

Запчасти Case 36 (86) - G33834 BUCKET CYL. 4" DIA. CYL. W/27-1/4" STROKE GLAND W/CENTER BEARING

G33834

CYLINDER

ASSY. - bucket (Stamped G33834 on gland), Includes: Ref. 2 - 21

1шт.

2

G33835

TUBE

ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G34635

GLAND

ASSY. - (Hand stamp for identification), Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod (2-1/4 x 2-3/4 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G34638

1шт.

8

G34620

BUSHING

BEARING - center

1шт.

Part of cylinder repair seal kit P/N G34638

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4 x 2-3/4 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G34638

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G34638

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of cylinder repair seal kit P/N G34638

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G34002

ROD

ASSY. - piston (2-1/4" dia.), Includes: Ref. 14

1шт.

14

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

1шт.

15

D49168

PISTON

- split (Rod end)

1шт.

16

D46930

PISTON

- split (Bolt end)

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type), Includes: Ref. 18

2шт.

Part of cylinder repair seal kit P/N G34638

1шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

20

G32351

WASHER

- piston bolt (1-3/8 x 2-1/2 x 1/8")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

G34638

CYLINDER ASSY.

SEAL KIT - cylinder repair, Includes: Ref. 7 thru 11 and 17

1шт.
