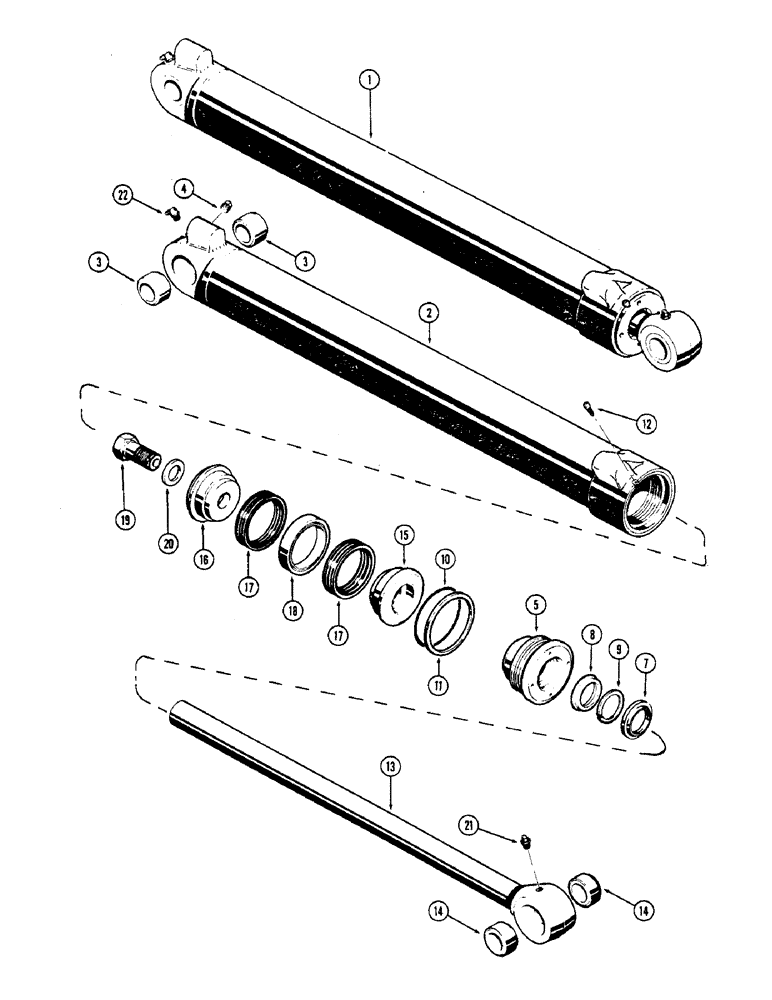

Запчасти Case 36 (84) - D44658 CROWD CYL. 4-1/2" DIA. CYL. W/40-1/8" STROKE W/STEP TYPE OUTER WIPER & INNER BUSHING

1

D44658

CYLINDER ASSY. - crowd (Order G322683), Includes: Ref. 2 - 22

1шт.

2

D44661

CYLINDER

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

221-11

PLUG,Sq Hd, 1/8"-27

- tube (1/8" P.T., sq. hd.)

1шт.

5

D44663

GLAND

1шт.

D42878

GLAND

REPAIR KIT - gland, Includes: Ref. 7 - 12

1шт.

7

D39360

WIPER

- piston rod, outer (Step type)

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4 x 2-3/4 x 7/16")

1шт.

9

D39539

RING

- rod seal back-up

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

11

D38932

BACK-UP RING

RING - gland "O" ring back-up

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

D44659

ROD

ASSY. - piston (2-1/4" dia.), Includes: Ref. 14

1шт.

14

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

15

D46425

PISTON

- split (Rod end)

1шт.

16

D46931

PISTON

- split (Bolt end)

1шт.

17

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

20

D36434

WASHER

- piston bolt

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
