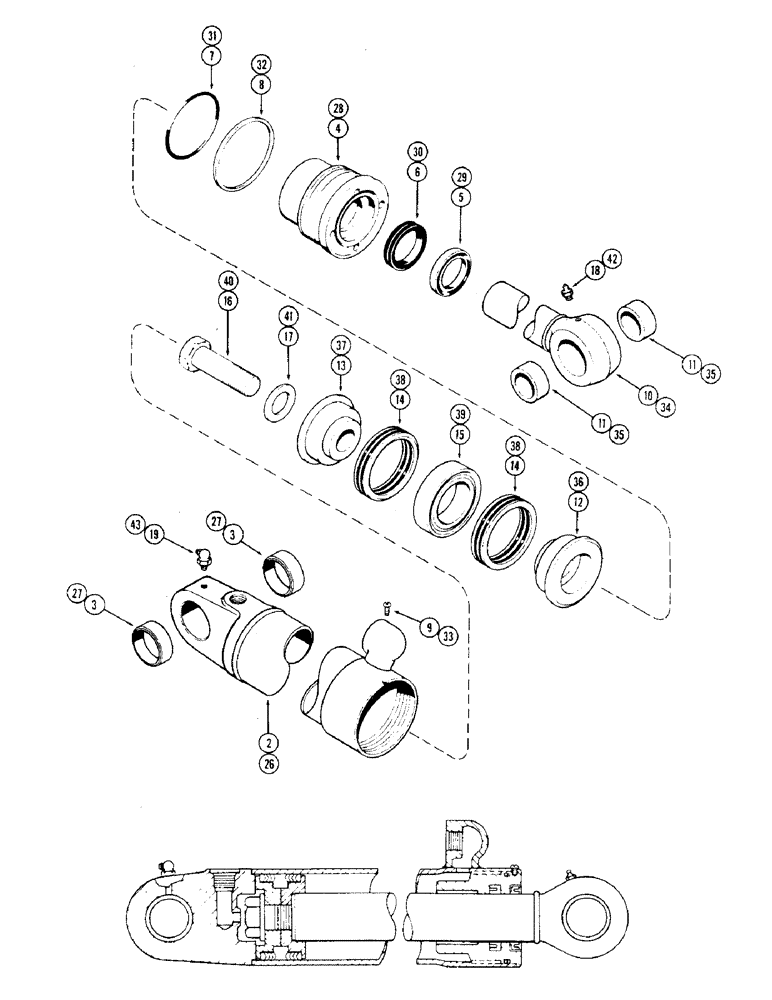

Запчасти Case 36 (81A) - G34323 CROWD CYL. 4-1/2" DIA. CYL. W/40-1/8" STROKE & 2-1/2" DIA. ROD GLAND W/O ENTER BEARING

G34323

CYLINDER ASSY. - crowd, Includes: Ref. 2 - 19

1шт.

2

G34256

TUBE,49.56" L

ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

G34329

GLAND

ASSY. - w/bushing, Includes: Ref. 5 - 8

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer (2-1/2 x 3 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32567

1шт.

6

D45571

ROD

SEAL - piston rod (2-1/2 x 3 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32567

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING- gland (4-1/2 x 4-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32567

1шт.

8

G32284

BACK-UP RING

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32567

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

10

G34324

ROD

ASSY. - piston (2-1/2" dia.), Includes: Ref. 11

1шт.

11

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

12

D49163

PISTON

- split (Rod end)

1шт.

13

D46931

PISTON

- split (Bolt end)

1шт.

14

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

Part of cylinder repair seal kit P/N G32567

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

16

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

17

G32351

WASHER

- piston bolt (1-3/8 x 2-1/2 x 5/32")

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G32567

SEAL

KIT - cylinder repair, Includes: Ref. 5 thru 8 and 14

1шт.

G34255

CYLINDER ASSY. - crowd, G34255, 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod, Includes: Ref. 26 - 43

1шт.

26

G34256

TUBE,49.56" L

ASSY. - cylinder body, G34255 crowd, 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod, Includes: Ref. 27

1шт.

27

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube, G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

2шт.

28

G32731

GLAND

ASSY. - w/bushing, G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod, Includes: Ref. 29 - 32

1шт.

29

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16"), G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

30

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston rod (2-1/4 x 2-3/4 x 7/16"), G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

31

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8"), G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

32

G32284

BACK-UP RING

- gland "O" ring back-up, G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

33

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

1шт.

34

D44659

ROD

ASSY. - piston (2-1/4" dia.), G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia , Includes: Ref. 35

1шт.

35

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod, G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia

2шт.

36

D46425

PISTON

- split (Rod end), G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia

1шт.

37

D46931

PISTON

- split (Bolt end), G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

1шт.

38

D47205

PACKING

ASSY. - piston ("V" type), G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

2шт.

Part of cylinder repair seal kit P/N G32285

1шт.

39

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing, G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

1шт.

40

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston, G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

1шт.

41

G32351

WASHER

- piston bolt (1-3/8 x 2-1/2 x 5/32"), G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

1шт.

43

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod 90º, 1/8" NPT x .84" lg

1шт.

G32285

SEAL

KIT - cylinder repair, Includes: Ref. 29 thru 32 and 38, G34255 crowd cylinder 4 - 1/2" dia. cyl. with 40 - 1/8" stroke & 2 - 1/4" dia rod

1шт.
