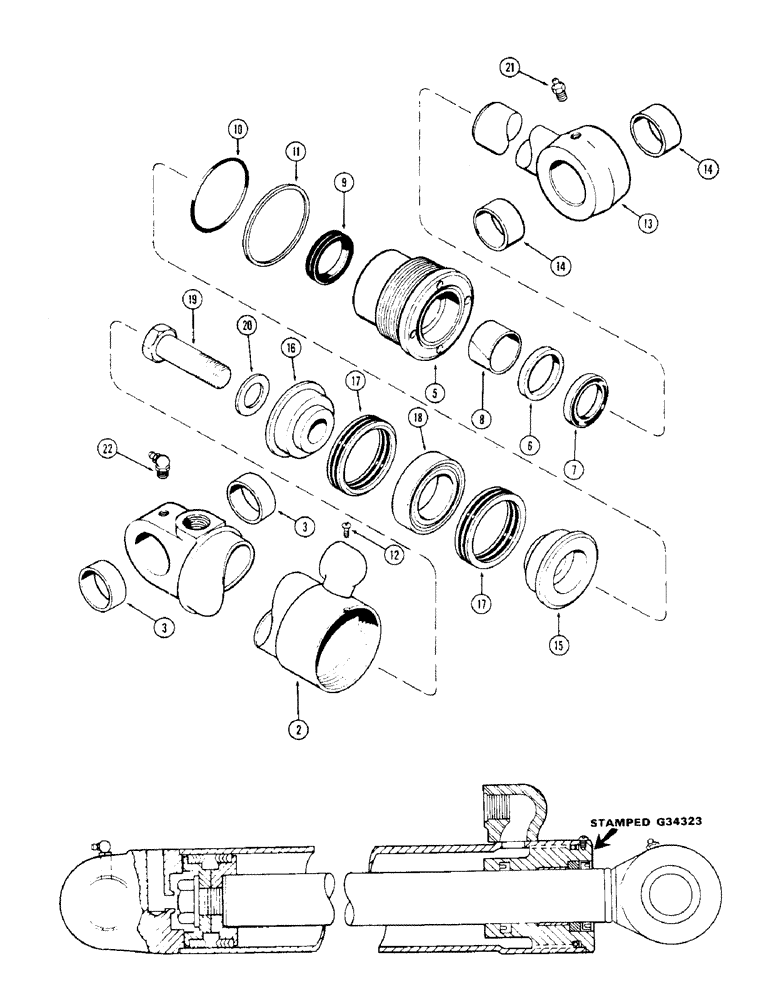

Запчасти Case 36 (80) - G34323 CROWD CYL. 4-1/2" CYL. W/40-1/8" STROKE GLAND W/CENTER BEARING
№
Артикул
Название
Примечание
Количество
G34323
CYLINDER ASSY. - crowd (Stamped G34323 gland), Includes: Ref. 2 - 22
1шт.
2
G34256
TUBE,49.56" L
ASSY. - cylinder body, Includes: Ref. 3
1шт.
3
D38943
BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L
- tube
2шт.
G34329
GLAND
ASSY. - (Hand stamp for identification), Includes: Ref. 5 - 11
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND
1шт.
6
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
7
D95146
WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk
WIPER - piston rod (2-1/2 x 3 x 5/16")
1шт.
Part of cylinder repair seal kit P/N G34333
1шт.
8
G34307
BEARING - center
1шт.
Part of cylinder repair seal kit P/N G34333
1шт.
9
D45571
ROD
SEAL - piston rod (2-1/2 x 3 x 7/16")
1шт.
Part of cylinder repair seal kit P/N G34333
1шт.
10
A23316
O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro
"O" RING - gland (4-1/2 x 4-3/4 x 1/8")
1шт.
Part of cylinder repair seal kit P/N G34333
1шт.
11
G32284
BACK-UP RING
- gland "O" ring back-up
1шт.
Part of cylinder repair seal kit P/N G34333
1шт.
12
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping)
1шт.
13
G34324
ROD
ASSY. - piston (2-1/2" dia.), Includes: Ref. 14
1шт.
14
D38943
BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L
- piston rod
2шт.
15
D49163
PISTON
- split (Rod end)
1шт.
16
D46931
PISTON
- split (Bolt end)
1шт.
17
D47205
PACKING
ASSY. - piston ("V" type)
2шт.
Part of cylinder repair seal kit P/N G34333
1шт.
18
D47210
BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk
RING - center bearing
1шт.
19
28-2044
BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8
- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston
1шт.
20
G32351
WASHER
- piston bolt (1-3/8 x 2-1/2 x 1/8")
1шт.
21
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T. str.)
1шт.
22
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
G34333
SEAL
KIT - cylinder repair, Includes: Ref. 7 thru 11 and 17
1шт.
