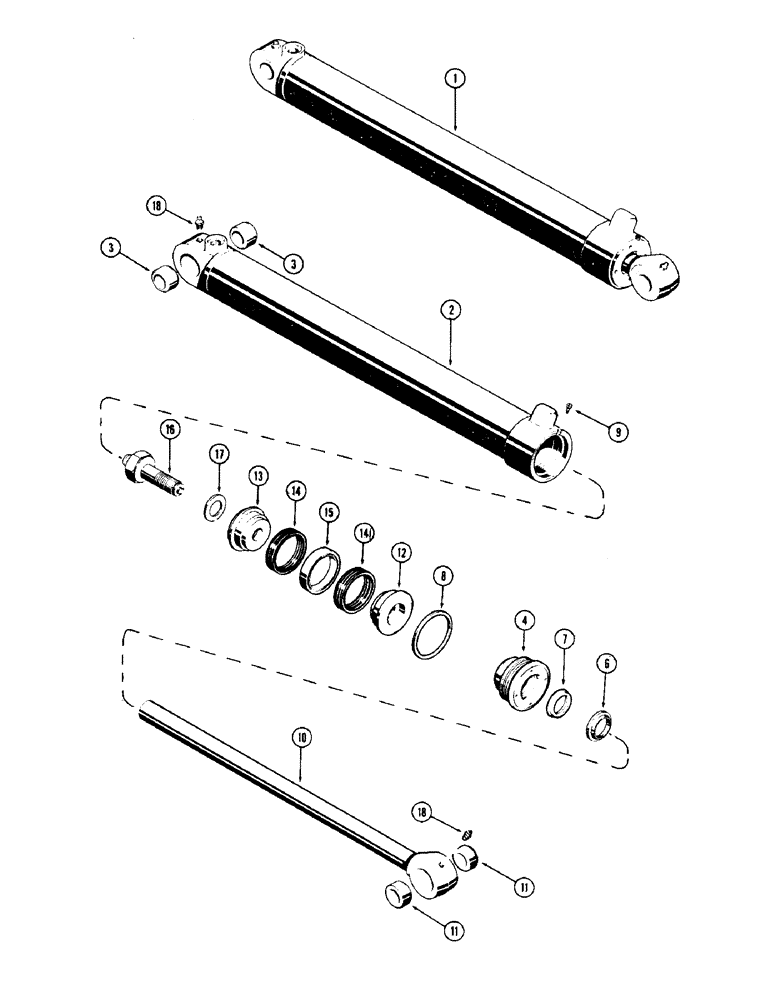

Запчасти Case 36 (78) - D45313 BOOM CYL. 5" DIA. CYL. W/39-3/16" STROKE W/STEP TYPE OUTER WIPER & INNER BUSHING

1

D45313

WASHER

CYLINDER ASSY. - boom, Includes: Ref. 2 - 18

1шт.

2

D45314

BODY

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

D44584

GLAND

ASSY. - w/bushing

1шт.

D47650

KIT

REPAIR KIT - gland, Includes: Ref. 6 - 9

1шт.

6

D39360

WIPER

- piston rod, outer (Step type)

1шт.

7

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

piston rod (2-1/4 x 2-3/4 x 7/16")

1шт.

8

D44723

SEAL

- gland (5 x 5-9/32 x 3/16" sq. edge)

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

10

D44581

ROD

ASSY. - piston (2-1/4" dia.), Includes: Ref. 11

1шт.

11

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

12

D46426

PISTON

- split (Rod end)

1шт.

13

D46932

PISTON

- split (Bolt end)

1шт.

14

D47206

PACKING

ASSY. - piston ("V" type) (Replaces D42594)

2шт.

15

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing (Replaces D43546)

1шт.

16

G33243

HARDWARE

BOLT - piston & relief (Replaces D45879)

1шт.

17

D36434

WASHER

- piston bolt

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.
