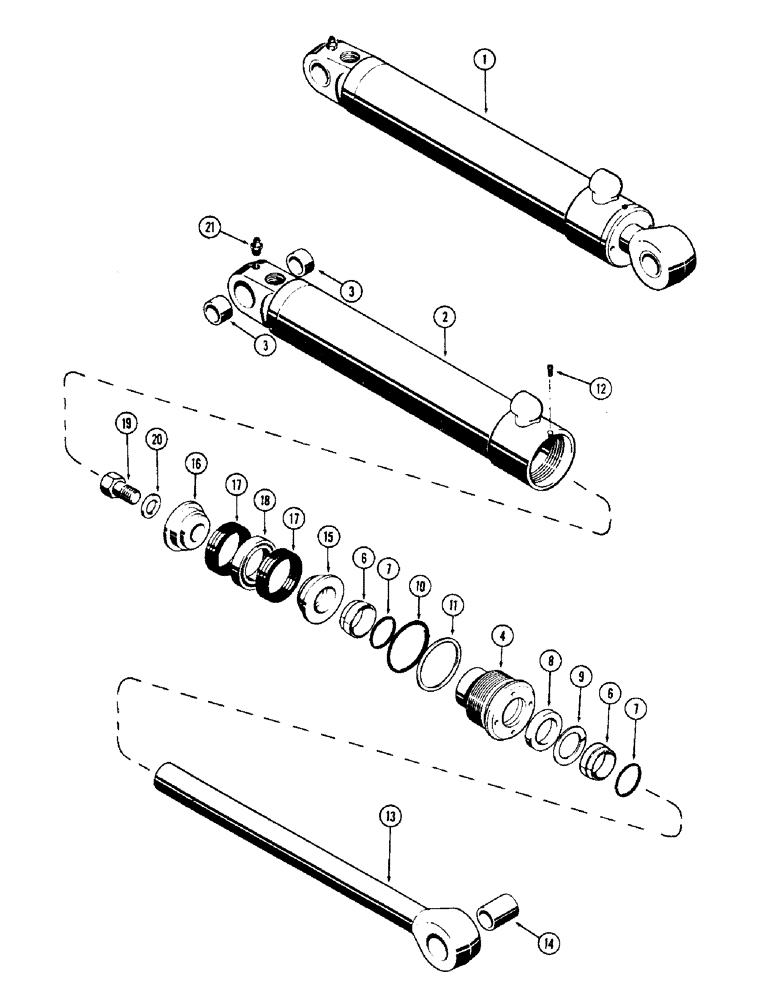

Запчасти Case 36 (74) - D42708 STABILIZER CYLINDER

1

D42708

CYLINDER ASSY. - stabilizer, Includes: Ref. 2 - 21

2шт.

2

D42707

CYLINDER

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

D45071

GLAND

1шт.

D42876

GLAND

REPAIR KIT - gland, Includes: Ref. 6 - 12

1шт.

6

D27380

SCRAPER RING

WIPER - piston rod, inner & outer (Split type)

2шт.

7

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - wiper (2-1/8 x 2-3/8 x 1/8")

2шт.

8

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

9

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- piston rod seal back-up

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

11

D36095

BACK-UP RING

- gland "O" ring back-up

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

D42703

ROD ASSY.

- piston (2" dia.), Includes: Ref. 14

1шт.

14

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

- piston rod (2-1/4" long) (If equipped)

1шт.

14

D35071

BUSHING

- piston rod (1-1/8" long) (If equipped)

2шт.

15

D46424

PISTON

- split (Rod end) (Replaces D28371)

1шт.

16

D46930

PISTON

- split (Bolt end) (Replaces D28371)

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

20

D36434

WASHER

- piston bolt

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.
