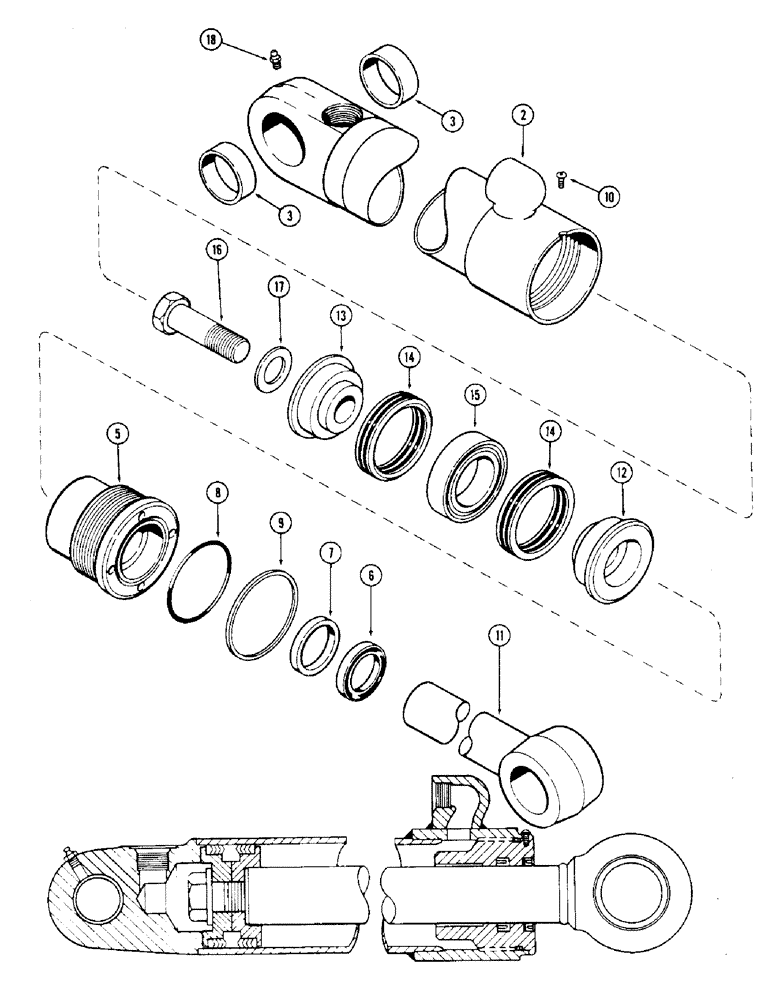

Запчасти Case 36 (71A) - G33828 STABILIZER CYLINDER

G33828

CYLINDER

ASSY. - stabilizer, Includes: Ref. 2 - 18

2шт.

2

G33829

TUBE

ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G33190

GLAND

ASSY. - w/bushing, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring)

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32615

1шт.

7

D36971

RING

SEAL - piston rod (2 x2-1/2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32615

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32615

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of cylinder repair seal kit P/N G32615

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33831

ROD

- piston (2" dia.) (w/identification ring)

1шт.

12

G33159

PISTON

- split (Rod end) (w/identification ring)

1шт.

13

D46930

PISTON

- split (Bolt end)

1шт.

14

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

Part of cylinder repair seal kit P/N G32615

1шт.

15

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

16

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

Piston Hex, 1 1/4"-12 x 2 1/2", G8

1шт.

17

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

G32615

KIT

SEAL KIT - cylinder repair, Includes: Ref. 6 thru 9 and 14

1шт.
