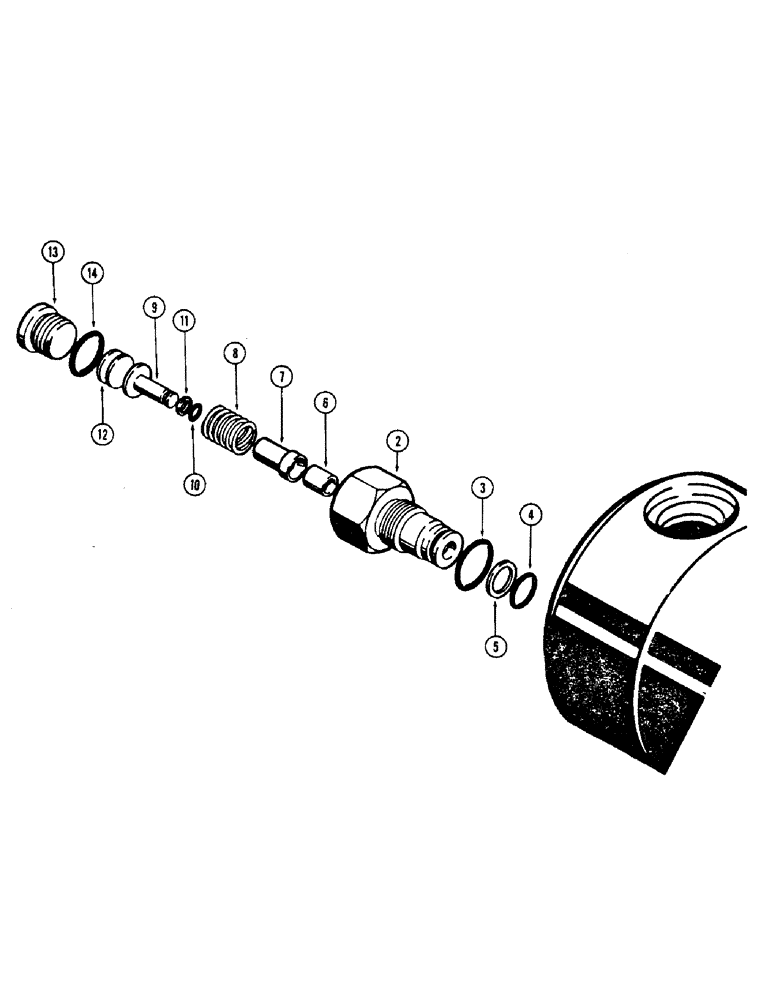

Запчасти Case 36 (68) - D44766 RELIEF VALVE, NON-ADJUSTABLE

D44766

VALVE

ASSY. - relief (Non-adjustable), Includes: Ref. 2 - 14

1шт.

2

D47667

CAP

BODY - valve

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - body (3/4 x 15/16 x 3/32")

1шт.

4

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

"O" RING - body (9/16 x 11/16 x 1/16")

1шт.

5

D37071

RING

- body "O" ring back-up

1шт.

6

D37075

SEAT

- plunger

1шт.

7

D37074

PLUNGER

- valve

1шт.

8

D37148

SPRING

- plunger return

1шт.

9

D37073

GUIDE

- spring

1шт.

10

D40356

O-RING

"O" RING - guide

1шт.

11

D40357

RING

- guide "O" ring back-up

1шт.

12

D40355

SHIM,.005" Thk

Spring guide .005" Thk

1шт.

12

16917

SHIM

- spring guide (.010")

1шт.

13

D40354

PLUG

ASSY. - valve, Includes: Ref. 14

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - plug (5/8 x 13/16 x 1/16")

1шт.
