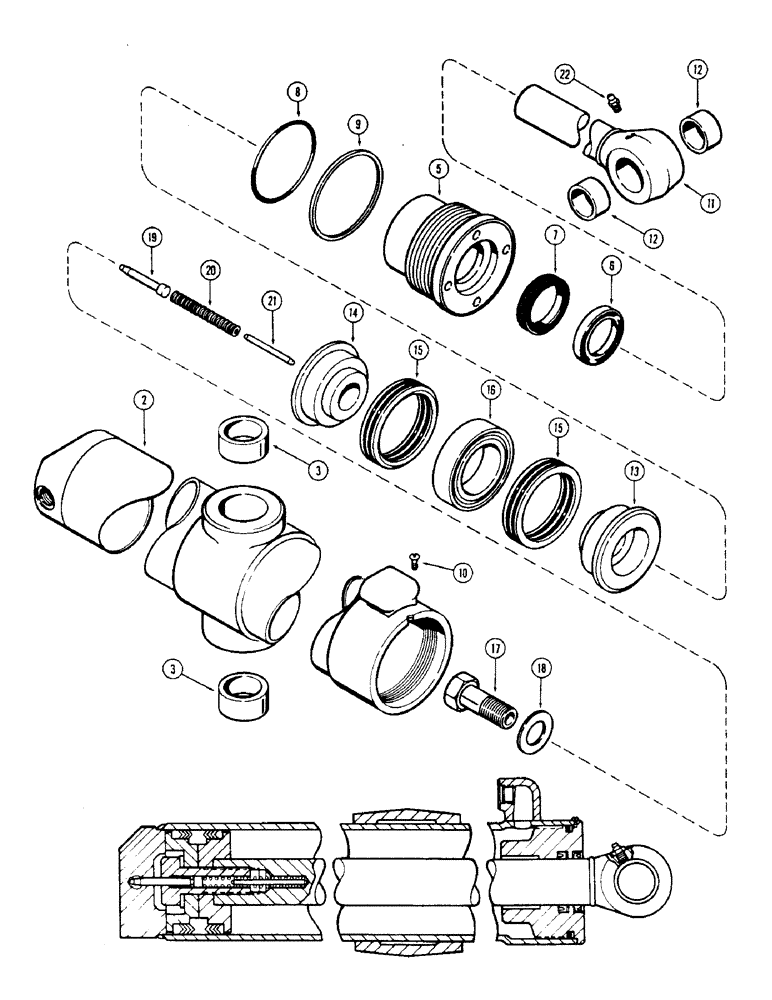

Запчасти Case 36 (61A) - G33628 AND G33629 SWING CYLINDERS

G33628

CYLINDER

ASSY. - swing, right hand, Includes: Ref. 2 - 22

1шт.

G33629

CYLINDER BLOCK

CYLINDER ASSY. - swing, left hand, Includes: Ref. 2 - 22

1шт.

2

G32882

TUBE,19.37" L

ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

2

G32883

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

3

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

- tube trunnion

2шт.

G33641

GLAND

ASSY. - w/bushing, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - w/identification ring

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32885

1шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32885

1шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32885

1шт.

9

G32284

BACK-UP RING

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32885

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33630

ROD

ASSY. - piston (2" dia.) (w/identification ring), Includes: Ref. 12

1шт.

12

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

13

G33634

PISTON

- split (Rod end) (w/identification ring)

1шт.

14

D46931

PISTON

- split (Bolt end)

1шт.

15

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

Part of cylinder repair seal kit P/N G32885

1шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

17

D44557

BOLT

- piston & restrictor pin

1шт.

18

G32351

WASHER

- piston pin (1-3/8 x 2-3/4 x 1/8")

1шт.

19

D46171

AXLE PIN

PIN - restrictor

1шт.

20

D44554

VALVE SPRING

SPRING - restrictor pin

1шт.

21

D46155

SPACER

- pin bumper & spring guide

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G32885

KIT

SEAL KIT - cylinder repair, Includes: Ref. 6 thru 9 and 15

1шт.
