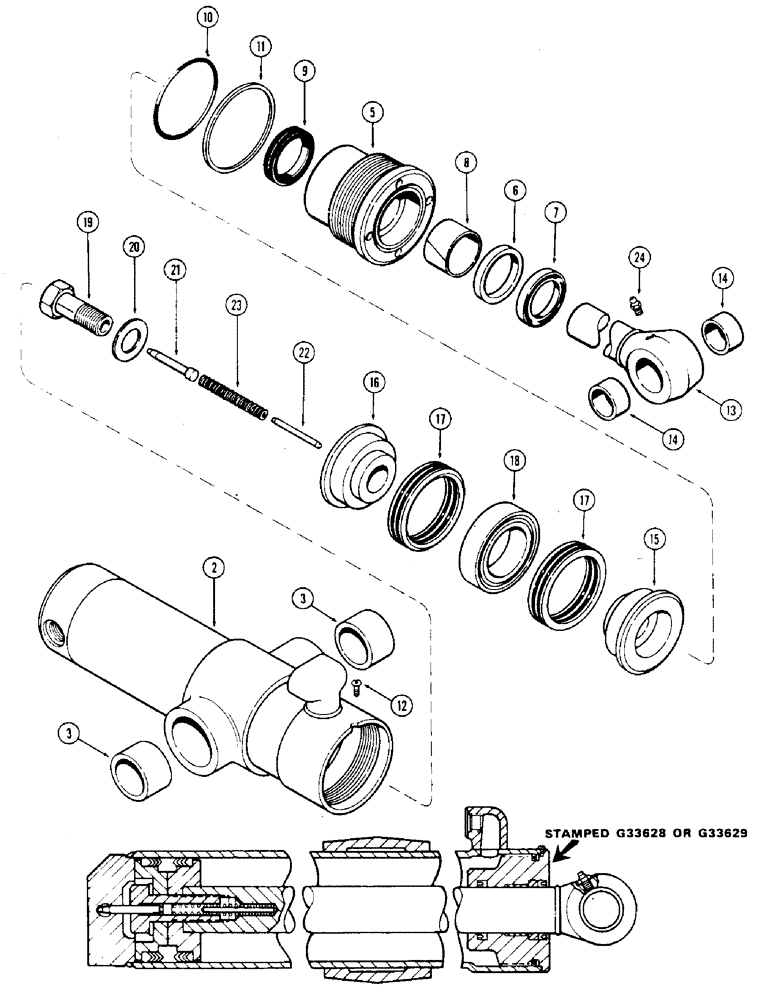

Запчасти Case 36 (60) - G33628 & G33629 SWING CYL., 4-1/2" DIA. CYL. W/ 11-3/8" STROK -GLAND W/ CENTER BEARING-

G33628

CYLINDER

ASSY. - swing, right hand (Stamped G33628 on gland), Includes: Ref. 2 - 24

1шт.

G33629

CYLINDER BLOCK

CYLINDER ASSY. - swing, left hand (Stamped G33629 on gland), Includes: Ref. 2 - 24

1шт.

2

G32882

TUBE,19.37" L

ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

2

G32883

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

3

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

- tube trunnion

2шт.

G34397

GLAND

ASSY. - (Hand stamp for identification), Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod (2 x 2-1/2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G34644

1шт.

8

G34322

BEARING

- center

1шт.

Part of cylinder repair seal kit P/N G34644

1шт.

9

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G34644

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G34644

1шт.

11

G32284

BACK-UP RING

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G34644

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G33630

ROD

ASSY. - piston (2" dia.), Includes: Ref. 14

1шт.

14

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

15

G33634

PISTON

- split (Rod end)

1шт.

16

D46931

PISTON

- split (Bolt end)

1шт.

17

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

Part of cylinder repair seal kit P/N G34644

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

D44557

BOLT

- piston

1шт.

20

G32351

WASHER

- piston bolt (1-3/8 x 2-1/2 x 1/8")

1шт.

21

D46171

AXLE PIN

PIN - cushion

1шт.

22

D46155

SPACER

- cushion pin

1шт.

23

D44554

VALVE SPRING

SPRING - cushion (5-5/16" free length)

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G34644

SEAL

KIT - cylinder repair, Includes: Ref. 7 thru 11 and 17

1шт.
