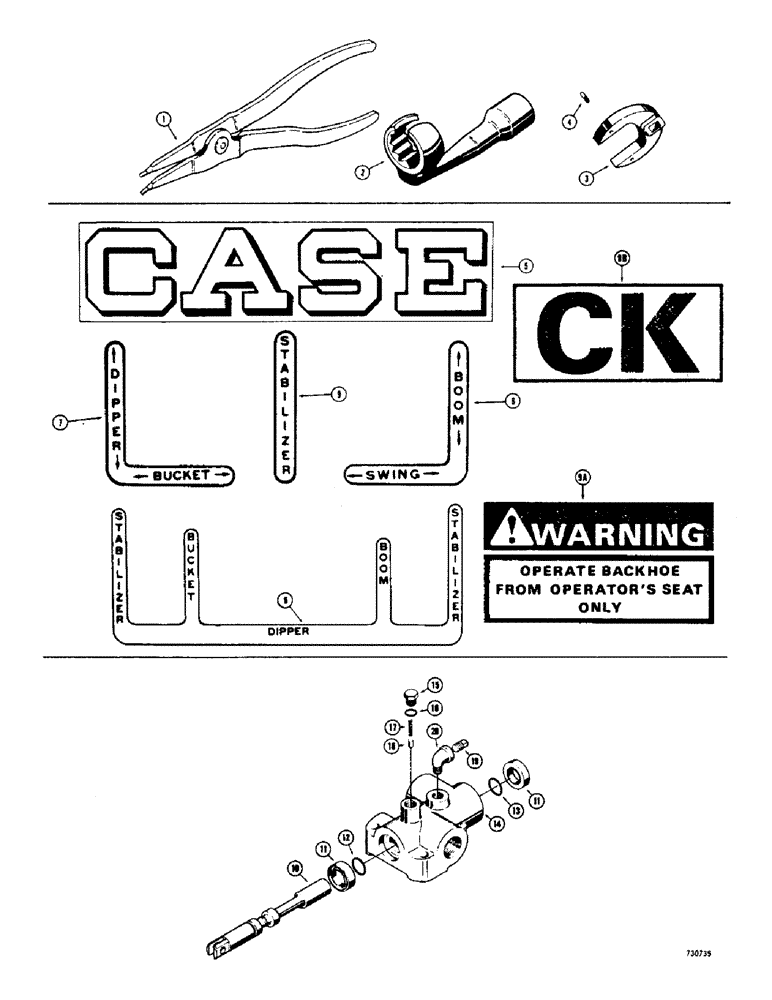

Запчасти Case 36 (56) - TOOLS

1

D32049

TOOL

PLIERS - snap ring

1шт.

2

D38971

TOOL

WRENCH - crow foot, 1/2" drive (For 1" backhoe hose fittings)

1шт.

2

D27216

TOOL

WRENCH - crow foot, 1/2" drive (For 1-1/16" backhoe hose fittings)

1шт.

2

D28774

TOOL ASSY.

WRENCH - crow foot, 1/2" drive (For 1-1/4" backhoe hose fittings)

1шт.

D44110

OPEN END WRENCH

WRENCH SET - spanner (For removal and installation of threaded cylinder packing glands), Includes: Ref. 3 and 4

1шт.

3

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinders with 1-1/4" or 1-1/2" piston rod, Includes: Ref. 4

1шт.

3

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rod, Includes: Ref. 4

1шт.

3

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" piston rod, Includes: Ref. 4

1шт.

3

D44114

OPEN END WRENCH

WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" piston rods, Includes: Ref. 4

1шт.

3

D44115

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinders with 2" or 2-1/4" piston rods, Includes: Ref. 4

1шт.

3

D44116

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" I.D. cylinders with 2-1/2" piston rods, Includes: Ref. 4

1шт.

4

D30107

PIN

- spanner wrench (Used in all wrenches except D44116)

3шт.

4

D44118

SPARE PART

PIN - spanner wrench (Used in D44116 wrench only)

3шт.

5

321-1440

DECAL

- Case trademark on boom and console (Reflective) When stock is exhausted, order 321-1572 decal for service

3шт.

5

321-1572

DECAL

- Case trademark, on boom and console (Non-reflective)

3шт.

6

321-921

DECAL

- control console (Individual lever with foot swing only)

1шт.

7

321-917

DECAL

- control console, dipper and bucket lever (Twin lever only)

1шт.

8

321-918

DECAL

- control console, boom and swing lever (Twin lever only)

1шт.

9

321-919

DECAL

- control console, stabilizer lever (Twin lever only)

1шт.

9a

321-2091

DECAL

- backhoe warning

1шт.

9b

321-1482

DECAL

- "CK" (Both sides of dipper)

2шт.

A19957

VALVE

- diverter, A19957, Includes: Ref. 10 - 20

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - valve, A19957 Diverter valve

1шт.

A19958

SEAL KIT

KIT - seal, repair, A19957 Diverter valve, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - spool, A19957 Diverter valve

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, spool, A19957 Diverter valve

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, housing, A19957 Diverter valve

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - valve, A19957 Diverter valve

1шт.

15

76349

PLUG,9/16" - 18 ORB

Housing, A19957 Diverter valve, Incl. Ref. 16 Hex Hd, 9/16"-18 ORB

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

SEAL - "O" ring, 6-1, 90 Duro, .468" ID x .078" Thk, plug, A19957 Diverter valve

1шт.

17

A7032

SPRING

- valve plunger, A19957 Diverter valve

1шт.

18

A19166

PLUNGER - valve detent, A19957 Diverter valve

1шт.

19

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT), A19957 Diverter valve

1шт.

20

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- street, 90 degrees (1/4" NPT), A19957 Diverter valve

1шт.
