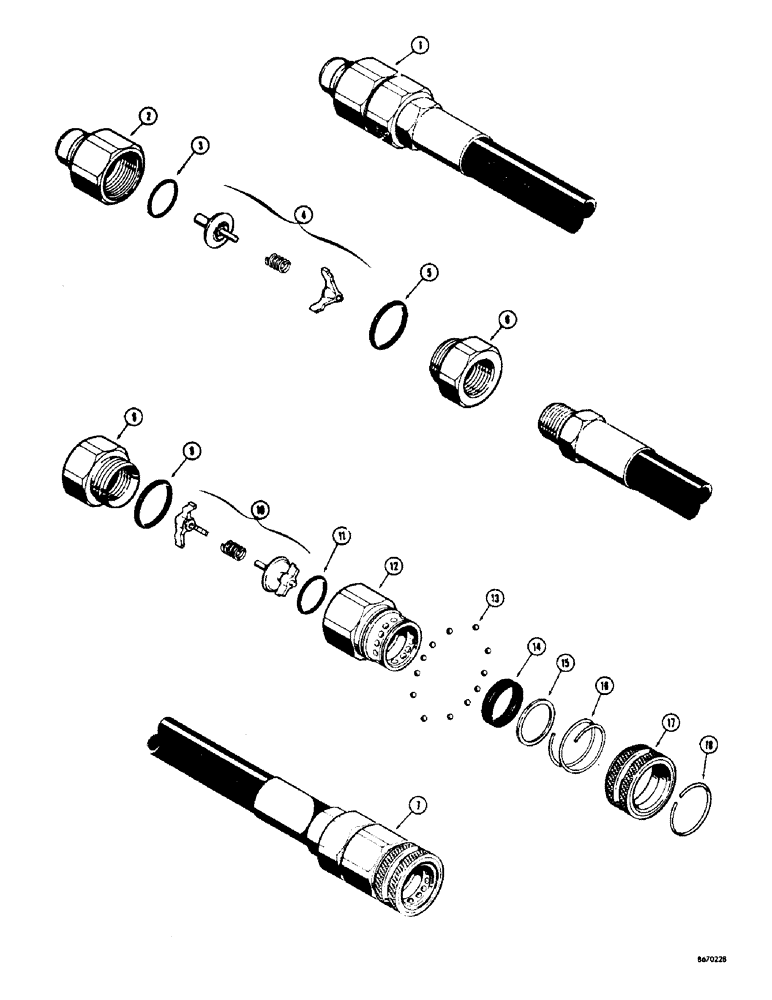

Запчасти Case 36 (42) - HYDRAULIC COUPLINGS

1

D37223

COUPLING - male (Snap-tite), Includes: Ref. 2 - 6

1шт.

2

D41804

BODY - male coupling

1шт.

3

D41803

O-RING

SEAL - "O" ring, valve

1шт.

4

D41805

VALVE ASSEMBLY - male coupling

1шт.

5

D41802

SEAL - "O" ring, fitting

1шт.

6

D41801

FITTING - end

1шт.

7

D37222

COUPLING

- female (Snap-tite), D37222 hydraulic coupling, Includes: Ref. 8 - 18

1шт.

8

D41801

FITTING - end, D37222 hydraulic coupling

1шт.

9

D41802

SEAL - "O" ring, fitting, D37222 hydraulic coupling

1шт.

10

D41806

VALVE ASSEMBLY - female coupling, D37222 hydraulic

1шт.

11

D41803

O-RING

SEAL - "O" ring, valve, D37222 hydraulic coupling

1шт.

12

D41807

BODY - female coupling, D37222 hydraulic

1шт.

13

D41810

X

BALL KIT - includes 12 balls, D37222 hydraulic coupling

1шт.

D42852

SEAL ASSY.

SEAL KIT - female coupling, D37222 hydraulic, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - ring, special, D37222 hydraulic coupling

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, D37222 hydraulic coupling

1шт.

16

D41808

VALVE SPRING

SPRING - sleeve, D37222 hydraulic coupling

1шт.

17

D41809

SLEEVE - ball retaining, D37222 hydraulic coupling

1шт.

18

D41811

RING - retaining, D37222 hydraulic coupling

1шт.
