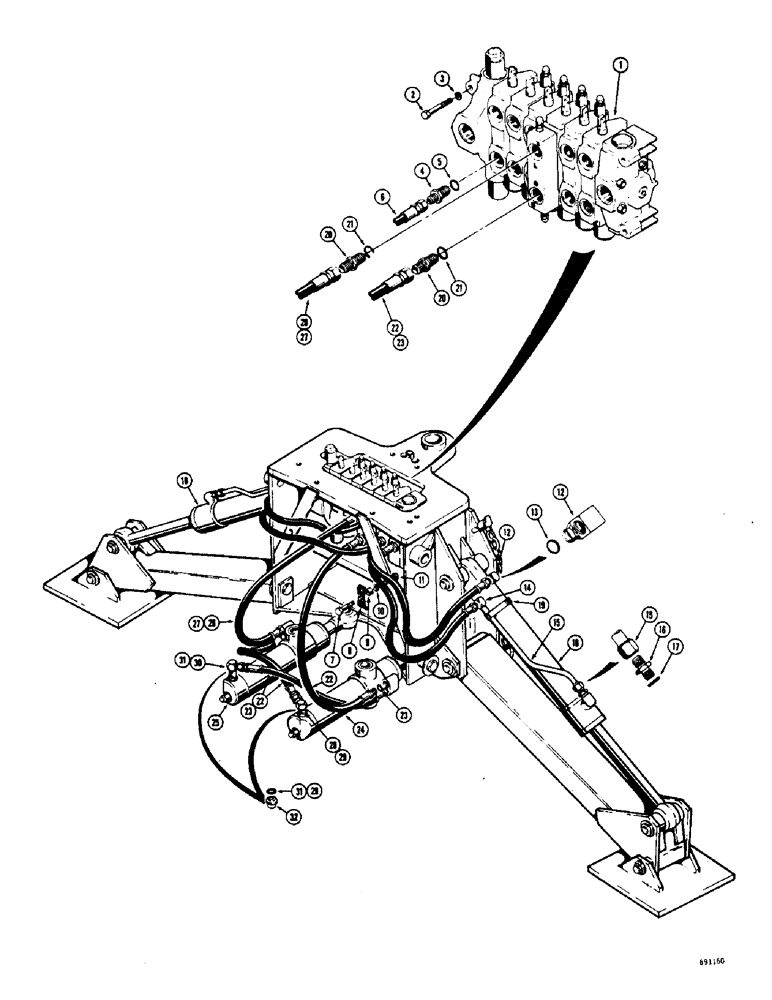

Запчасти Case 36 (36) - SWING AND STABILIZER CYLINDER HYDRAULICS

1

D38705

VALVE - backhoe control (Parts list figure 44)

1шт.

2

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

(Lower mounting hole in valve inlet section) Hex, 1/2"-13 x 4", G5

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

(Upper mounting hole in valve inlet section, mounting hole in valve outlet section) Hex, 1/2"-13 x 4 1/4", G5

2шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, stabilizer cylinder hydraulics, Includes: Ref. 5

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, stabilizer cylinder hydraulics

1шт.

6

D40809

HOSE

- valve to stabilizer cylindes (33-1/2" long), hydraulics

4шт.

7

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Stabilizer cylinder hydraulics Hex, 5/16"-18 x 2 1/4", G5

2шт.

8

D33316

CLAMP

- hose, stabilizer cylinder hydraulics

2шт.

9

D33829

BUSHING

SPACER - clamp, stabilizer cylinder hydraulics

2шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16"), stabilizer cylinder hydraulics

2шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), stabilizer cylinder hydraulics

2шт.

12

D23974

ELBOW

- adjustable, 90 degrees (Stabilizer cylinder - closed end), hydraulics, Includes: Ref. 13

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cylinder hydraulics

1шт.

14

218-1081

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-18, NPTF

- female, 90 degrees, stabilizer cylinder hydraulics

2шт.

15

D43621

TUBE

- valve to stabilizer cylinder, rod end, hydraulics

2шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, stabilizer cylinder hydraulics, Includes: Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cylinder hydraulics

1шт.

18

REF

INSTRUCTION

CYLINDER - hydarulic, stabilizer (4" I.D. x 21-3/8" stroke) See figure 58 for proper cylinder

2шт.

19

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose, stabilizer cylinder hydraulics

2шт.

20

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, swing cylinder hydraulics, Includes: Ref. 21

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, swing cylinder hydraulics

1шт.

22

D37219

HOSE

- valve to R.H. swing cylinder and swing cylinder crossover (30" long), hydraulics, Includes: Ref. 23

3шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, swing cylinder hydraulics

1шт.

24

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. swing (4-1/2" I.D. x 11-3/8" stroke) See figure 58 for proper cylinder

1шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. swing (4-1/2" I.D. x 11-3/8" stroke) See figure 58 for proper cylinder

1шт.

26

D45558

HOSE ASSY.

HOSE - valve to L.H. swing cylinder (35" long), hydraulics, Includes: Ref. 27

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, swing cylinder hydraulics

1шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees (R.H. swing cylinder), hydraulics, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Swing cylinder hydraulics

1шт.

30

D36934

FITTING

ELBOW - adjustable, 90 degrees (L.H. swing cylinder), hydraulics, Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Swing cylinder hydraulics

1шт.

32

D45555

FITTING

RESTRICTOR - flow control, swing cylinder hydraulics

2шт.
