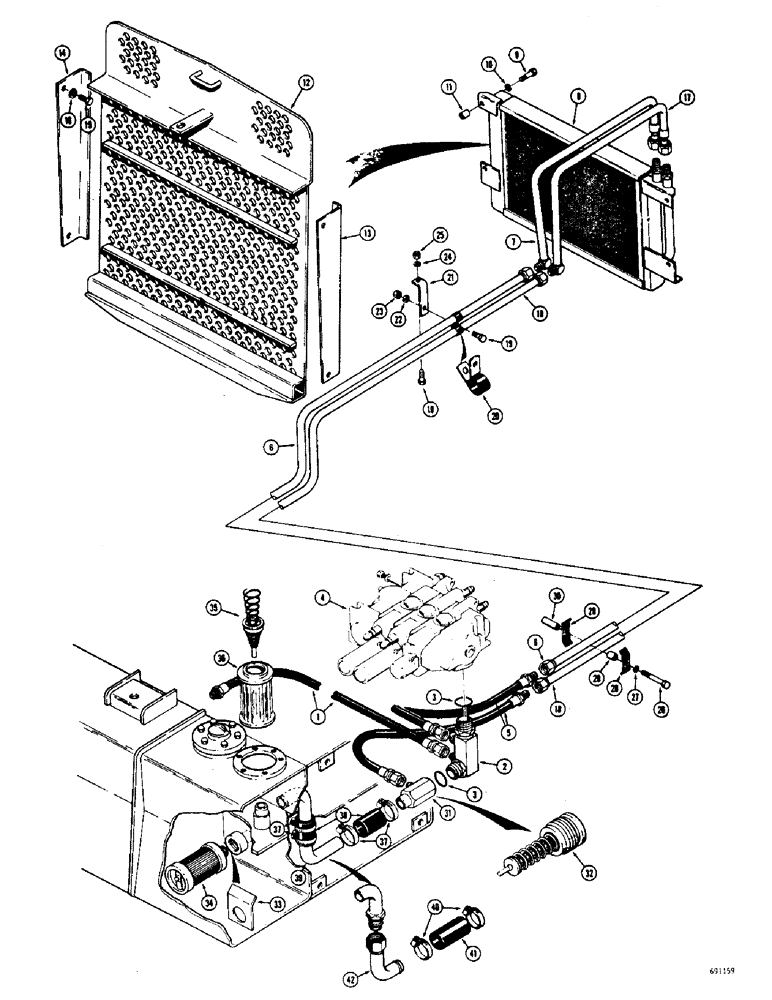

Запчасти Case 36 (34) - HYDRAULIC OIL COOLING SYSTEM, USED BEFORE TRACTOR SERIAL NO.

1

D47231

HOSE

- return from backhoe control valve (68-1/2" long)

1шт.

2

D44237

MANIFOLD

- special (When stock is exhausted, order R29626 manifold for service), Includes: Ref. 3

1шт.

2

R29626

MANIFOLD - special, Includes: Ref. 3

1шт.

3

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

4

REF

INSTRUCTION

VALVE - equipment control (See 1150 crawler parts catalog for proper valve)

1шт.

5

D30850

HOSE ASSY.

HOSE - cooler intake and return (43" long)

2шт.

6

D44369

TUBE - cooler intake, rear

1шт.

7

D44373

TUBE - cooler intake, front

1шт.

8

D46968

COOLER - oil

1шт.

9

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

4шт.

10

92-5

LOCK WASHER,5/16"

4шт.

11

D44594

SPACER

- cooler mounting

4шт.

12

D46976

GRILLE

- radiator and oil cooler protecting

1шт.

13

D46961

BRACE

- grille, R.H.

1шт.

14

D46962

BRACE

- grille, L.H.

1шт.

15

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

4шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

D44371

TUBE - cooler return, front

1шт.

18

D44367

TUBE - cooler return, rear

1шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

20

49855

CLAMP

- tube

2шт.

21

D44365

BRACKET - tube mounting

1шт.

22

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

23

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

26

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS - 5/16" - 18 NC x 3-3/4"

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

D33316

CLAMP

- tube

2шт.

29

D36040

BUSHING

SPACER - tube

1шт.

30

D44595

SPACER -, Serial Range: tube-panel

1шт.

D44406

VALVE - bypass, Includes: Ref. 31 and 32

1шт.

31

D44407

HOUSING - bypass

1шт.

32

D44564

VALVE - bypass

1шт.

33

D48678

DEFLECTOR

- hydraulic oil

1шт.

34

D42995

FILTER

- hydraulic tank, suction line

1шт.

35

L51620

VALVE

- pressure relief

1шт.

36

D35995

STRAINER ELEMENT

FILTER - hydraulic tank, return line

1шт.

37

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

used before tractor S/N 7109332 #28, 1.31/2.25 Type F Worm

4шт.

38

D42942

HOSE

- low pressure, used before tractor ser. no. 7109332

2шт.

39

D44496

TUBE - valve to hydraulic reservoir, used before tractor ser. no. 7109332

1шт.

40

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

used on tractor S/N 7109332 and after #28, 1.31/2.25 Type F Worm

2шт.

41

D47536

LARGE HOSE

HOSE - low pressure, used on tractor ser. no. 7109332 and after

1шт.

42

D46977

TUBE - valve to hydraulic reservoir, used on tractor ser. no. 7109332 and after

1шт.
