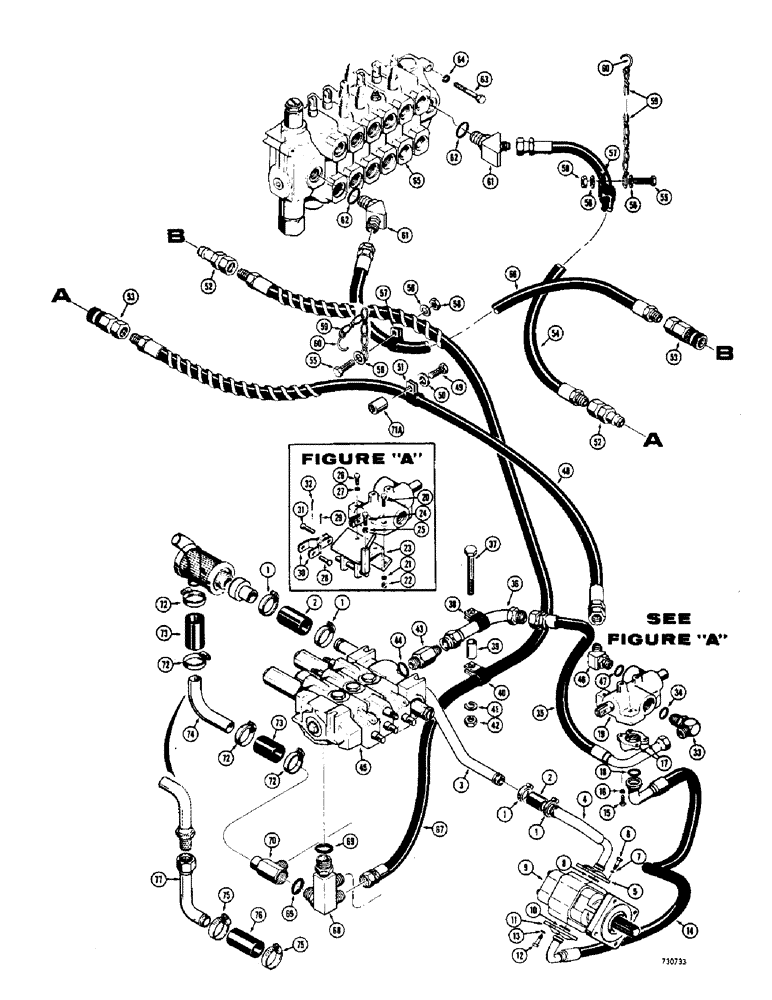

Запчасти Case 36 (30) - BASIC BACKHOE HYDRAULICS

1

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

2

D43354

HOSE

- low pressure

2шт.

3

D43330

TUBE - hydraulic reservoir to pump, suction

1шт.

4

D45873

TUBE

- special

1шт.

5

A14157

FLANGE

- split

2шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

9

D43382

HYDRAULIC PUMP

PUMP - hydraulic, 45 G.P.M at 1850 R.P.M. at 1250 P.S.I. (Dozer models only) See model 1150 crawler parts catalog for breakdown

1шт.

D43363

PUMP

- hydraulic, 54 G.P.M. at 1850 R.P.M. at 1650 P.S.I. (Loader models only) See model 1150 crawler parts catalog for breakdown

1шт.

10

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

11

A14157

FLANGE

- split

2шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

D44514

HOSE - special, pump to diversion valve (32" long)

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

A12306

FLANGE

- split

2шт.

18

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

19

A19957

VALVE

- diversion (Parts list figure 56)

1шт.

20

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.

22

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

23

D36564

BRACKET

- valve mounting (Before tractor SN 7300854), Includes: Ref. 24 and 25

1шт.

23

R24019

BRACKET - valve mounting (Tractor SN 7300854 and after), Includes: Ref. 24 and 25

1шт.

24

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - link

1шт.

29

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

30

D36557

DRAG LINK

LINK -, Serial Range: valve-lever

2шт.

31

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Link 5/16" x .940"

1шт.

32

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

33

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

male, Incl. Ref. 34 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

35

D44513

HOSE - diversion valve to equipment control valve (39" long)

1шт.

36

NLS

NO LONGER SERVICED

TUBE - diversion valve to equipment control valve

1шт.

37

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

38

D43364

CLAMP

- tube

1шт.

39

D34061

SPACER - clamp

1шт.

40

R14057

CLAMP

- hose

1шт.

41

92-8

LOCK WASHER,1/2"

1шт.

42

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

43

D43379

ADAPTER

CONNECTOR - male, special, Includes: Ref. 44

1шт.

44

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

45

REF

INSTRUCTION

VALVE - loader or dozer control (See model 1150 crawler parts catalog for proper valve)

1шт.

46

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 45 degrees, Includes: Ref. 47

1шт.

47

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

48

D47232

HOSE ASSY.

HOSE - diversion valve to backhoe control valve (62-1/2" long)

1шт.

49

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

50

92-8

LOCK WASHER,1/2"

1шт.

51

R14057

CLAMP

- hose

1шт.

52

D37223

COUPLING - quick disconnect, male (Parts list figure 42)

2шт.

53

D37222

COUPLING

- quick disconnect, female (Parts list figure 42)

2шт.

54

D41528

HOSE ASSY.

HOSE - backhoe control valve, inlet (24" long)

1шт.

55

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

56

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

57

R14057

CLAMP

- hose

2шт.

58

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

59

35393

AXLE-SHAFT, ARTICULA

CHAIN - hose suspension

2шт.

60

A30706

HOOK - chain

2шт.

61

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 45 degrees, Includes: Ref. 62

2шт.

62

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

63

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

(Lower mounting hole in valve inlet section) Hex, 1/2"-13 x 4", G5

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

(Upper mounting hole in valve inlet section, mounting hole in valve outlet section) Hex, 1/2"-13 x 4 1/4", G5

2шт.

64

92-8

LOCK WASHER,1/2"

3шт.

65

D38705

VALVE - backhoe control (Parts list figure 44)

1шт.

66

D41530

HOSE ASSY.

HOSE - backhoe control valve, outlet (26-1/2" long)

1шт.

67

D47231

HOSE

- backhoe control valve, outlet (68-1/2" long)

1шт.

68

D44237

MANIFOLD

- special (When stock is exhausted, order R29626 manifold for service), Includes: Ref. 69

1шт.

68

R29626

MANIFOLD - special, Includes: Ref. 69

1шт.

69

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

D44406

VALVE - bypass, Includes: Ref. 70 and 70A

1шт.

70

D44407

HOUSING - bypass

1шт.

70a

D44564

VALVE - bypass (Not illustrated)

1шт.

71

D47250

PLATE - backhoe operator, engine R.P.M. (Not illustrated)

1шт.

71a

D33944

BLOCK - tapped, clamped mounting

1шт.

72

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

used before tractor S/N 7109332 #28, 1.31/2.25 Type F Worm

4шт.

73

D42942

HOSE

- low pressure, used before tractor ser. no. 7109332

2шт.

74

D44496

TUBE - valve to hydraulic reservoir, used before tractor ser. no. 7109332

1шт.

75

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

used on tractor S/N 7109332 and after #28, 1.31/2.25 Type F Worm

2шт.

76

D47536

LARGE HOSE

HOSE - low pressure, used on tractor ser. no. 7109332 and after

1шт.

77

D46977

TUBE - valve to hydraulic reservoir, used on tractor ser. no. 7109332 and after

1шт.
