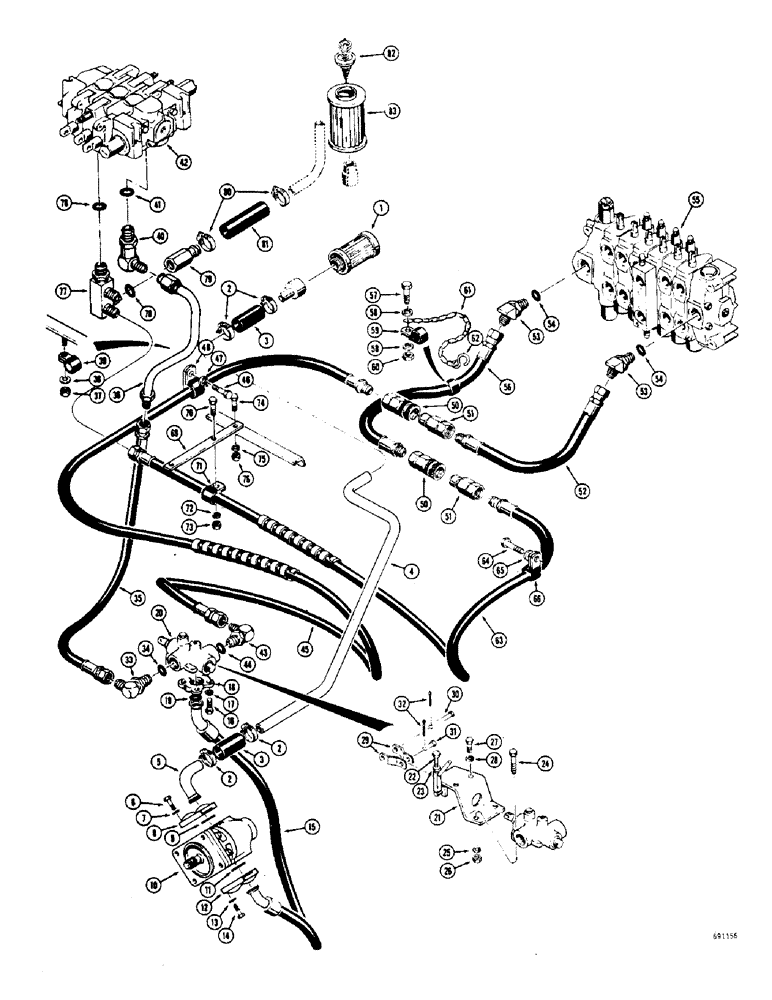

Запчасти Case 36 (24) - BASIC BACKHOE HYDRAULICS

1

D33557

FILTER, ELEMENT

FILTER - hydraulic tank, suction line

1шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R14169

HOSE

- low pressure

2шт.

4

D39764

TUBE

- tank to pump, suction

1шт.

5

D35993

FITTING

STEM - hose, 90 degrees

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

A14157

FLANGE

- split

2шт.

9

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, pump inlet

1шт.

10

D42531

HYDRAULIC PUMP

PUMP - hydraulic, 37 G.P.M. at 1780 R.P.M. at 2000 P.S.I. (Tyrone #20250-CG) See 850 parts catalog for parts list

1шт.

11

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring, pump outlet

1шт.

12

A12301

CLAMP,Half

- split

2шт.

13

92-7

LOCK WASHER,7/16"

4шт.

14

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

15

D39132

HOSE ASSY.

HOSE - special, pump to diversion valve (32" long)

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

A12306

FLANGE

- split

2шт.

19

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

20

A19957

VALVE

- diversion (Parts list page 56)

1шт.

21

D36564

BRACKET

ASSEMBLY - valve mounting (Used before tractor SN 7074130), Includes: Ref. 22 and 23

1шт.

21

R24019

BRACKET ASSEMBLY - valve mounting (Tractor SN 7074130 and after), Includes: Ref. 22 and 23

1шт.

22

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

24

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

D36557

DRAG LINK

LINK -, Serial Range: valve-lever

2шт.

30

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - link

1шт.

31

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Link 5/16" x .940"

1шт.

32

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

33

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 90 degrees, Includes: Ref. 34

1шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

35

D47197

HOSE - diversion valve to equipment valve (38" long)

1шт.

36

D46842

TUBE

-, Serial Range: pump-valve

1шт.

37

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

38

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

39

49789

CLAMP

- tube

1шт.

40

R20720

FITTING

ELBOW - adjustable, 90 degrees (Special), Includes: Ref. 41

1шт.

41

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

42

REF

INSTRUCTION

VALVE - equipment control (See 850 crawler parts catalog for proper valve)

1шт.

43

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Incl. Ref. 44 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

44

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

45

D47232

HOSE ASSY.

HOSE - diversion valve to backhoe control (62-1/2" long)

1шт.

46

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

1шт.

47

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

48

D47198

CLAMP

- hose

1шт.

50

D37222

COUPLING

- quick disconnect, female (Parts list figure 42)

2шт.

51

D37223

COUPLING - quick disconnect, male (Parts list figure 42)

2шт.

52

D41528

HOSE ASSY.

HOSE - quick disconnect to inlet section at backhoe control valve (24" long)

1шт.

53

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 45 degrees, Includes: Ref. 54

2шт.

54

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

55

D38705

VALVE - backhoe control (Parts list figure 44)

1шт.

56

D41530

HOSE ASSY.

HOSE - outlet section of backhoe control valve to quick disconnect (26-1/2" long)

1шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

58

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

59

R14057

CLAMP

- hose

2шт.

60

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

61

35393

AXLE-SHAFT, ARTICULA

CHAIN - hose suspension

2шт.

62

A30706

HOOK - chain

2шт.

63

D47231

HOSE

- quick disconnect to equipment control valve (68-1/2" long)

1шт.

64

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

1шт.

65

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

66

D47198

CLAMP

- hose

1шт.

69

D43276

BRACKET - hose

1шт.

70

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

71

R14057

CLAMP

- hose

1шт.

72

92-8

LOCK WASHER,1/2"

1шт.

73

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

74

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

75

92-6

LOCK WASHER,3/8"

2шт.

76

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

77

D44237

MANIFOLD

- special (When stock is exhausted, order R29626 manifold for service), Includes: Ref. 78

1шт.

77

R29626

MANIFOLD - special, Includes: Ref. 78

1шт.

78

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

79

D45616

LOCK VALVE

VALVE - bypass

1шт.

80

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

81

D40107

HOSE

- low pressure

1шт.

82

D35996

VALVE PRESSURE RELIE

VALVE - pressure relief

1шт.

83

D35995

STRAINER ELEMENT

FILTER - hydraulic tank, return line

1шт.

84

D47249

PLATE - backhoe operation, engine RPM (Not illustrated)

1шт.
