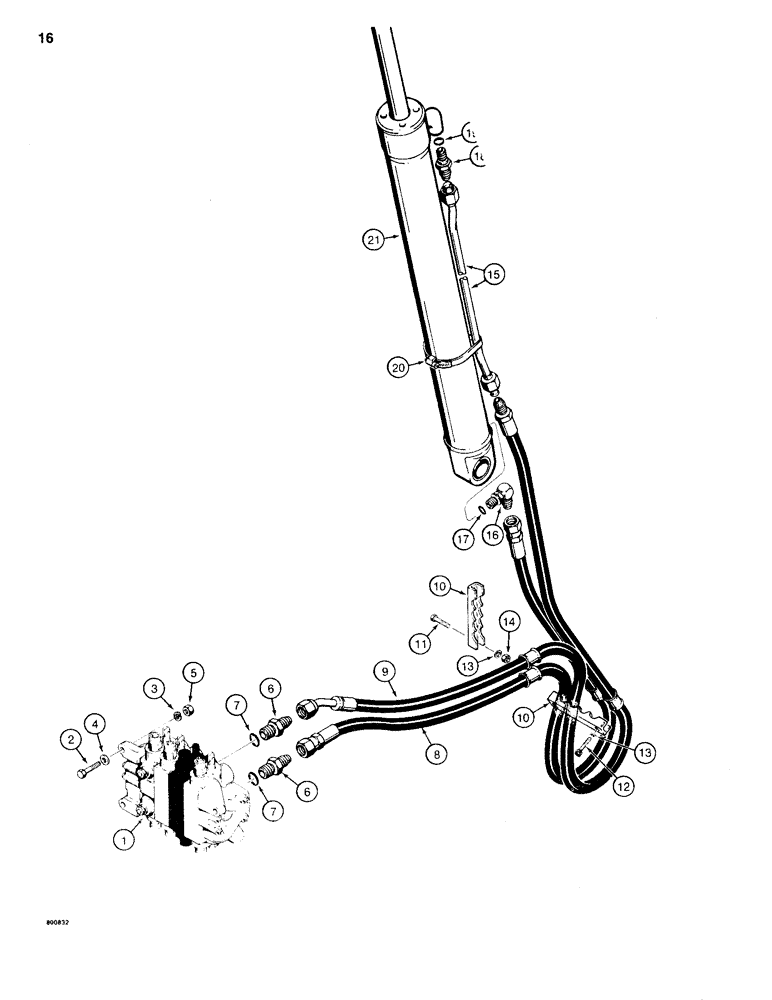

Запчасти Case 35WL (16) - DIPPER CYLINDER HYDRAULIC CIRCUIT

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Fig. 26, for mounting plate see Fig. 8

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref.#7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

8

D88976

HOSE,15.88mm ID x 1820mm L, SAE 100R2

- to closed end of dipper cylinder, 71-5/8" (1820 mm) long

1шт.

9

D88975

HOSE,15.88mm ID x 2000mm L, SAE 100R2

- to rod end of dipper cylinder, 78-3/4" (2000 mm) long

1шт.

10

D92721

CLAMP

- hoses

2шт.

11

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex socket head, 1/2" - 13 NC x 1-3/4"

2шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

15

D50379

TUBE

- to rod end of cylinder

1шт.

16

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, Includes: Ref.#17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

18

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref.#19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

20

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - cylinder tube

1шт.

21

REF

INSTRUCTION

CYLINDER - dipper, see Fig. 48 or 50 for the correct assembly and components

1шт.
