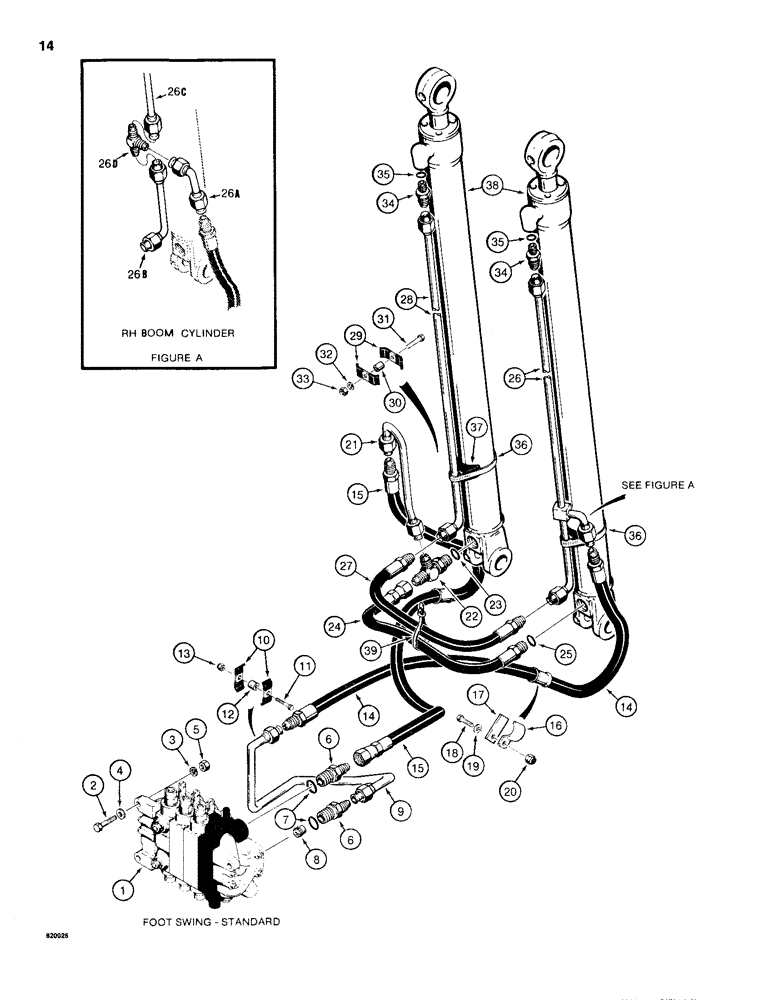

Запчасти Case 35WL (14) - BOOM CYLINDER HYDRAULIC CIRCUIT

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Fig. 26, for mounting plate see Fig. 8

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. #7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

8

D77182

FITTING

RESTRICTOR - check, lower port

1шт.

9

D88964

TUBE,0.75" OD

- bottom port

1шт.

10

D40236

CLAMP

- boom tube to swing tube

2-4шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1-2шт.

12

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

1-2шт.

13

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

1-2шт.

14

D88977

HOSE,15.88mm ID x 1300mm L, SAE 100R2

- to right-hand cylinder, 51-1/8" (1300 mm) long

1-2шт.

15

D88978

HOSE,15.88mm ID x 1350mm L, SAE 100R2

- to left-hand cylinder, 53-5/32" (1350 mm) long

1шт.

16

D93472

CLAMP

- hose, at swing tower

2шт.

17

D93471

PLATE

- clamp

2шт.

18

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

19

D41740

WASHER

- flat, 3/8", special

4шт.

20

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

21

D69421

HYD TUBE,0.75" OD

TUBE - closed end of left-hand cylinder, Includes: Ref. #23

1шт.

22

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, male

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

24

D50732

HOSE,12.7mm ID x 652.78mm L, SAE 100R2

- crossover, closed end circuit, 25.7" (653 mm) long, Includes: Ref.#25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose end

1шт.

26

D69237

TUBE

- to rod end of right-hand cylinder, one piece design, see Ref.#26A, 26B

1шт.

26a

D121777

TUBE

- hose to right-hand cylinder tee, if used

1шт.

26b

D121779

TUBE

- tee at right-hand cylinder to crossover hose, if used

1шт.

26c

S207953

TUBE,19.05 mm OD x 760 mm L

- to rod end of right-hand cylinder, if used

1шт.

26d

218-596

TEE,1 1/16"-12 37 Degree

- right-hand cylinder tubes, if used, Includes: Ref.#23

1шт.

27

D65886

HOSE,12.7mm ID x 457.2mm L, SAE 100R2

- crossover, rod end circuit, 18" (457 mm) long

1шт.

28

D69234

HYD TUBE,0.75" OD x 41.4, 2.75" L

TUBE - to rod end of left-hand cylinder

1шт.

29

D40236

CLAMP

- tube

2шт.

30

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

1шт.

31

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

34

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref.#35

2шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

36

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - cylinder tube

2шт.

37

D38648

BLOCK

SPACER - clamp

2шт.

38

REF

INSTRUCTION

CYLINDER - boom, see Fig. 44 or 46 for the correct assembly and components

2шт.

39

L18331

CABLE TIE,375.9mm L, Nylon

TIE STRAP - hoses

1шт.
