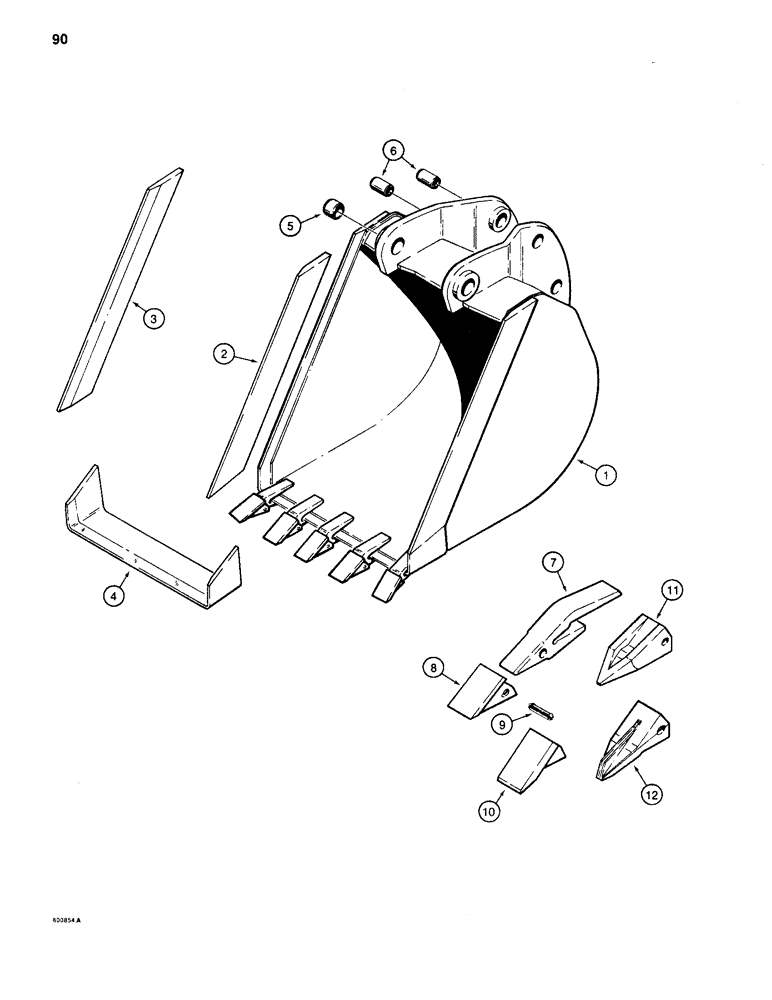

Запчасти Case 35WL (90) - BUCKETS, TRENCHING BUCKETS - HEAVY DUTY

1

D57546

BUCKET

- 18 inch (457 mm), machinery item - see Fig. 2 for ordering, Includes: Ref.#2 - 6

1шт.

2

D57550

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D57551

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D57594

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

1

D57544

BUCKET

- 24 inch (610 mm), machinery item - see Fig.2 for ordering, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D57551

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D57591

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

1

D57543

BUCKET

- 30 inch (762 mm), machinery item - see Fig. 2 for ordering, Includes: Ref.#2- 6

1шт.

2

D57550

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D57551

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D57559

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

1

D57545

BUCKET

- 36 inch (914 mm), machinery item - see Fig. 2 for ordering, Includes: Ref.#2 - 6

1шт.

2

D57550

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D57551

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D57595

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

D48035

TOOTH

ASSEMBLY - heavy duty bucket only, Includes: Ref.#7 - 9

1шт.

7

D48212

SHANK

- tooth, ASSEMBLY

1шт.

8

D39093

TOOTH

POINT - tooth , ASSEMBLY

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point , ASSEMBLY

1шт.

10

D44193

TOOTH

POINT - tooth, heavy duty, flat end, service option , TOOTH ASSEMBLY

1шт.

11

D80119

TOOTH

POINT - tooth, heavy duty, pointed end, service option , TOOTH ASSEMBLY

1шт.

12

D79100

TOOTH

POINT - tooth, heavy duty, star point, service option , TOOTH ASSEMBLY

1шт.
