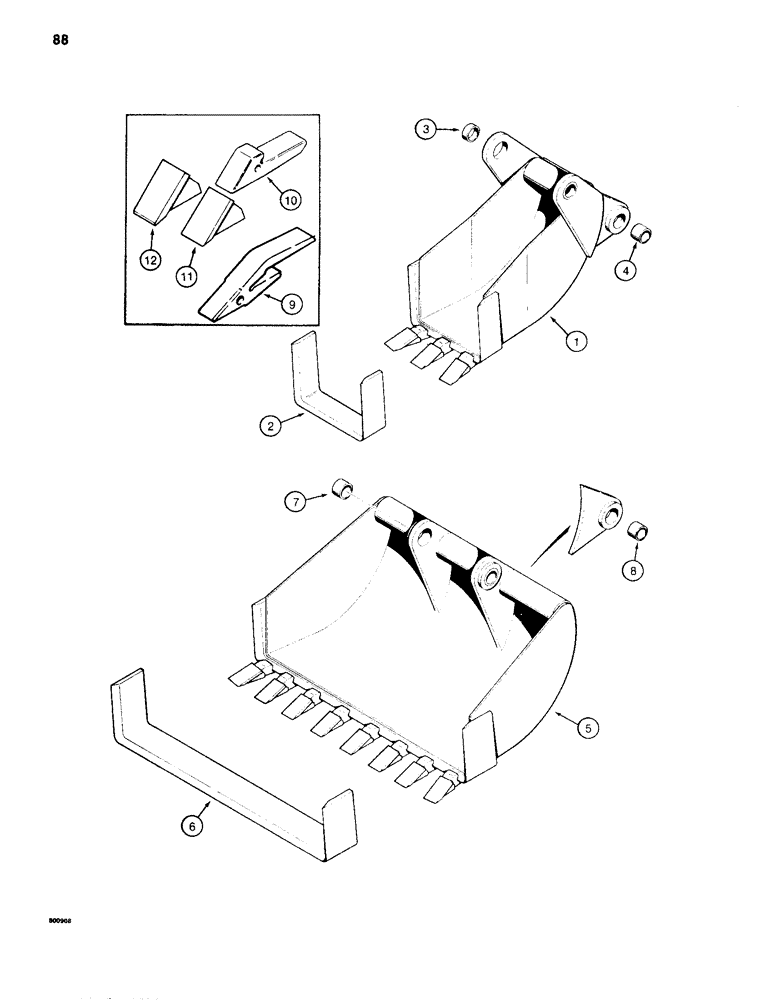

Запчасти Case 35WL (88) - BUCKETS, BELL HOLE BUCKETS

1

D41547

BUCKET

- 12 inch (305 mm) machinery item - see Fig. 2 for ordering, Includes: Ref.#2 - 4

1шт.

2

D37490

KNIFE

CUTTING EDGE - bucket

1шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

2шт.

1

D41548

BUCKET

- 16 inch (406 mm) machinery item - see Fig. 2 for ordering, Includes: Ref.#2 - 4

1шт.

2

D37518

EDGE, CUTTING

CUTTING EDGE - bucket

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

2шт.

1

D41549

BUCKET

- 30 inch (762 mm) machinery item - see Fig. 2 for ordering, Includes: Ref.# 2 - 4

1шт.

2

D37515

EDGE

CUTTING EDGE - bucket

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

2шт.

5

D41550

BUCKET

- 36 inch (914 mm) machinery item - see Fig. 2 for ordering , COMBINATION BELLHOE AND GRAVEYARD, Includes: Ref.#6 - 8

1шт.

6

NLS

NO LONGER SERVICED

CUTTING EDGE - bucket , COMBINATION BELLHOE AND GRAVEYARD

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper , COMBINATION BELLHOE AND GRAVEYARD

2шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole , COMBINATION BELLHOE AND GRAVEYARD

2шт.

9

D58499

SUPPORT

SHANK - tooth, service option , BUCKET TEETH

1шт.

10

D26368

SUPPORT

SHANK - tooth, original equipment , BUCKET TEETH

1шт.

11

D27748

TOOTH

POINT - tooth, standard , BUCKET TEETH

1шт.

12

D36720

TOOTH

POINT - tooth, heavy duty service option, BUCKET TEETH

1шт.
