Запчасти Case 35WL (82) - EXTENDABLE DIPPER

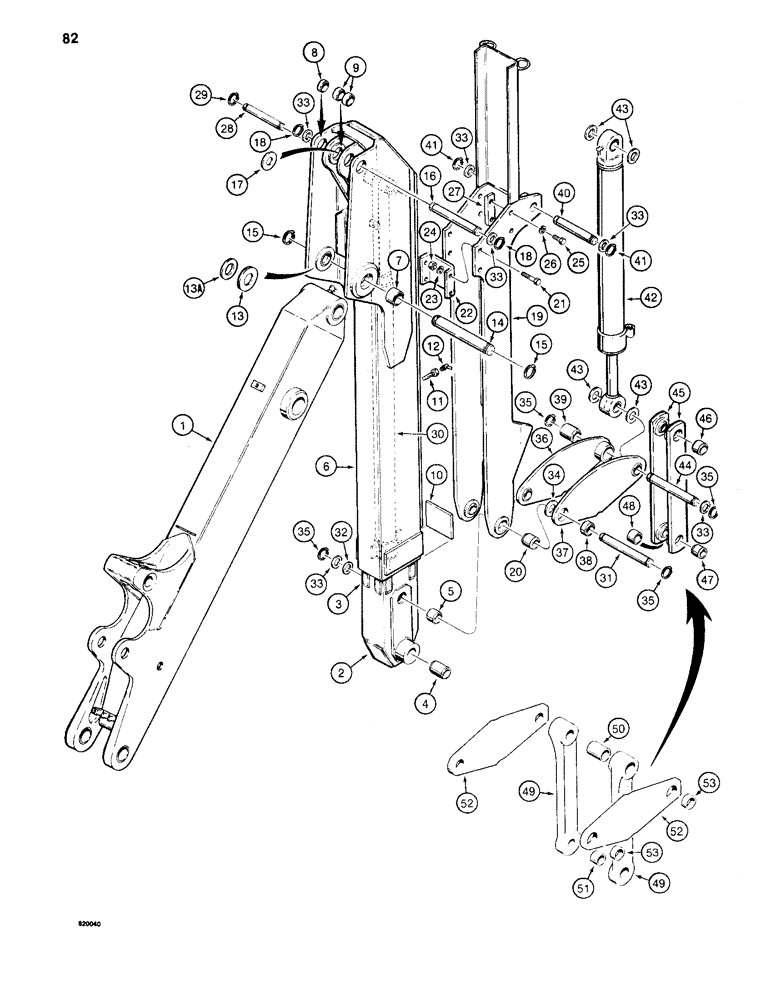

Схема запчастей Case 35WL - (82) - EXTENDABLE DIPPER

Артикул

Название

Примечание

Количество

1

D121393

LOWER LINK

BOOM - backhoe, see Fig. 72

1шт.

2

D55727

ARM

DIPPER ASSEMBLY - extension, Includes: Ref.#3 - 5

1шт.

3

D55688

STRIP

WEAR STRIP - dipper slide, steel

8шт.

Part of wear strip service kit P/N D16615

1шт.

4

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- dipper at bucket

2шт.

5

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper, at bucket link

2шт.

D73826

COVER

DIPPER HOUSING ASSEMBLY, Includes: Ref.#6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - dipper

1шт.

7

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at boom

2шт.

8

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- at dipper cylinder, left-hand side plate, if used

1шт.

9

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- dipper cylinder, inner plate

2шт.

10

D61708

BLOCK

- stop

1шт.

11

219-107

NOZZLE CAP

NOZZLE - extension, grease fitting, used with Ref.#12 to lubricate dipper slide

1шт.

Part of wear strip service kit P/N D16615

1шт.

12

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT, used with Ref.#11 to lubricate dipper slide

1шт.

Part of wear strip service kit P/N D16615

1шт.

13

D81915

BUSHING

SPACER - dipper housing to boom, 3/8" (10 mm) thick, if used

4шт.

13a

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer .035" Thk

1шт.

14

D45034

PIN

- dipper, Serial Range: housing-boom

1шт.

15

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

16

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - dipper cylinder to dipper housing

1шт.

17

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat

2шт.

18

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

19

D61744

ARM

EXTENSION ASSEMBLY - dipper, Includes: Ref.#20

1шт.

20

D52521

BUSHING,44.68mm ID x 57.15mm OD x 26.92mm L

- bucket link pin

2шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

22

D61701

BRACE

PLATE - guide

1шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

D54095

BLOCK

- guide

2шт.

28

D44882

PIN,38.1mm OD x 203.2mm L

- extension, Serial Range: cylinder-housing

1шт.

29

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

30

G101183

CYLINDER

- dipper extension, parts list Fig. 54

1шт.

31

D53818

PIN,44.45mm OD x 278.89mm L

- dipper and dipper extension to bucket links

1шт.

31

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, bucket link to extension, . 105" (2.7 mm) thick

1шт.

D16615

STRIP

KIT - service, wear strip, includes four wears strips, one grease fitting, one adapter, and installation instructions

1шт.

33

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - spacer, 1/16" (1.5 mm) thick

1шт.

34

D77725

WASHER

- spacer, 5/16" (7.9 mm) thick

2шт.

35

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

36

D61088

LINK

- dipper and extension to dump links, left-hand, welded assembly, used with Ref.# 45

1шт.

Links must be used together on the same backhoe. Ref.#49 cast links and Ref. # 52 links must be used together on the same backhoe.

1шт.

37

D61087

LINK

- dipper and extension to dump links, right-hand, welded assembly, used with Ref.# 45, Includes: Ref.#38 & 39

1шт.

Links must be used together on the same backhoe. Ref.#49 cast links and Ref. # 52 links must be used together on the same backhoe.

1шт.

38

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link, at dipper

1шт.

39

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

- link, at bucket cylinder

1шт.

40

D37602

PIN

- bucket cylinder to dipper extension

1шт.

41

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

42

G101176

CYLINDER

- bucket, parts list Fig. 52

1шт.

43

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, bucket cylinder to links

1шт.

44

D53818

PIN,44.45mm OD x 278.89mm L

- bucket cylinder

1шт.

45

D61244

LINK

- bucket cylinder to bucket, welded assembly, used with Ref.# 36 & 37,Includes: Ref.#46 & 47

2шт.

Links must be used together on the same backhoe. Ref.#49 cast links and Ref. # 52 links must be used together on the same backhoe.

1шт.

46

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- link, at cylinder, part of Ref.# 45

1шт.

47

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket, part of Ref.#45

1шт.

48

D93227

BUSHING

SPACER - bucket link

1шт.

49

D120755

LINK

- bucket cylinder to bucket, used with Ref.#52, cast type, Includes: Ref.#50 & 51

50шт.

Links must be used together on the same backhoe. Ref.#49 cast links and Ref.#52 links must be used together on the same backhoe.

1шт.

50

D121845

BUSHING,44.68mm ID x 57.15mm OD x 70mm L

- at cylinder

1шт.

51

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at bucket

1шт.

52

D89620

LINK

- bucket cylinder to dipper, used with Ref.#53

2шт.

Links must be used together on the same backhoe. Ref.#49 cast links and Ref.#52 links must be used together on the same backhoe.

1шт.

53

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link

2шт.
