Запчасти Case 35WL (76) - BOOM LATCH, W14 LOADER ONLY

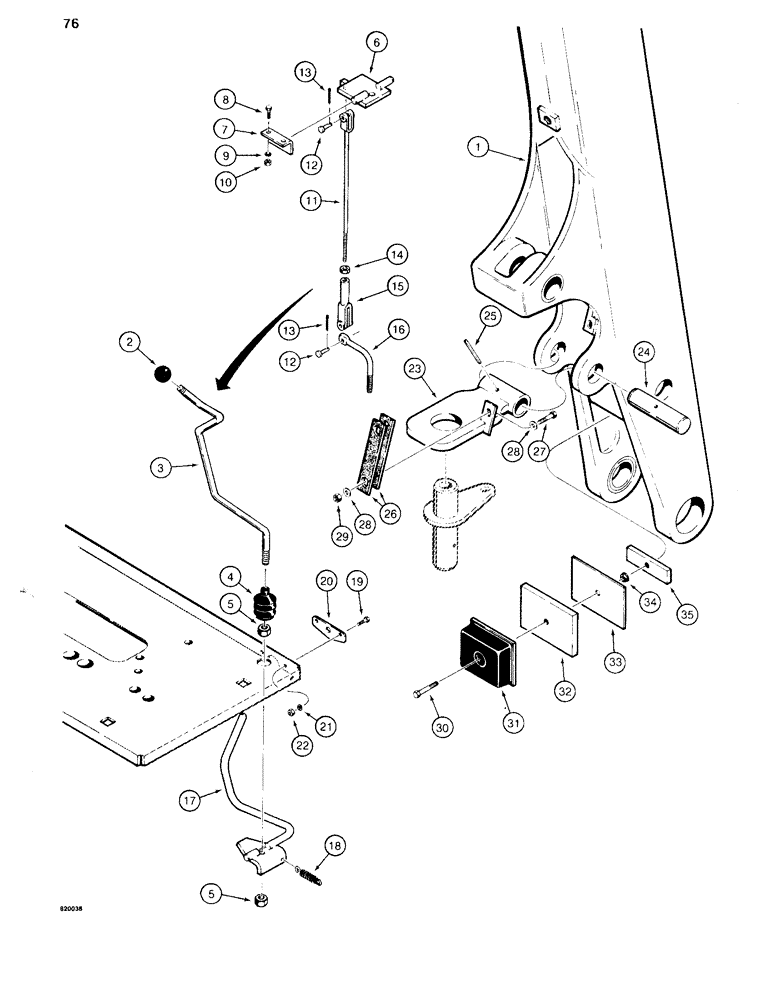

Схема запчастей Case 35WL - (76) - BOOM LATCH, W14 LOADER ONLY

Артикул

Название

Примечание

Количество

1

D121393

LOWER LINK

BOOM - backhoe, parts list Fig. 72

1шт.

2

D59912

KNOB

- lever, latch release

1шт.

3

D91102

LEVER

- boom latch release

1шт.

4

D85869

BELLOWS

BOOT - rubber, lever

1шт.

5

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

2шт.

6

L108506

SUPPORT

BRACKET - boom lock, backhoe

1шт.

7

L108444

SUPPORT

BRACKET - boom lock, pivot

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

11

L108483

ROD

- boom lock

1шт.

12

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

13

132-26

COTTER PIN

- Split (Cotter), 3/32" x 3/4"

2шт.

14

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF

1шт.

15

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - 5/16"

1шт.

16

L108484

ROD

- backhoe, lock

1шт.

17

D91098

ROD

- latch release

1шт.

18

D91097

SPRING

- rod

1шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

20

D90398

PLATE

- rod support

1шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

23

D90687

LATCH

- backhoe boom

1шт.

24

D89366

PIN,38.1mm OD x 145mm L

- boom latch

1шт.

25

138-144

LOCK PIN,1/4" x 2 1/2", Slotted

PIN, 1/4" x 2 1/2", Slotted

1шт.

26

L73300

STRAP

- boom latch

2шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

28

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

29

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

30

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

31

D90990

GUARD

BUMPER - rubber, boom

1шт.

32

D90970

PLATE

- boom stop

1шт.

33

D92254

SHIM

- plate

1шт.

34

D66017

SPACER

- plate

1шт.

35

D90971

PLATE

- support

1шт.

Выбрано товаров: 35
