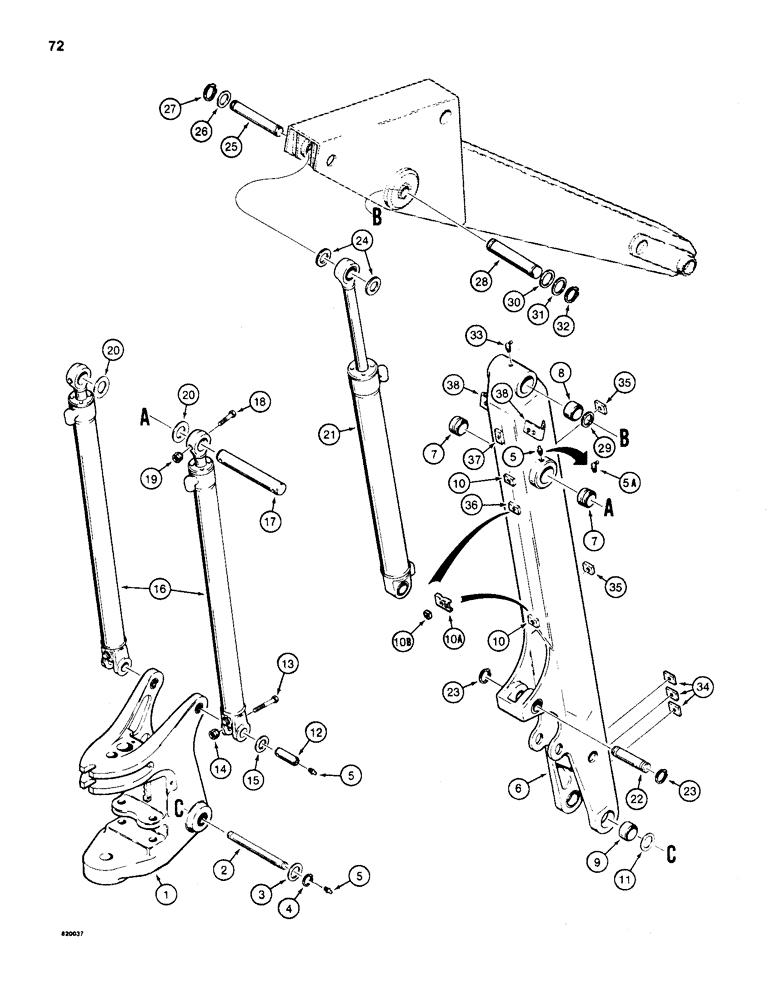

Запчасти Case 35WL (72) - SWING TOWER AND BOOM

1

REF

INSTRUCTION

SWING TOWER - for bushings, see Fig. 70

1шт.

2

D91240

PIN,50.8mm OD x 402mm L

- boom to swing tower

1шт.

3

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2" (51 mm) ID

2шт.

4

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4-6шт.

5a

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT, if used

2шт.

6

D121393

LOWER LINK

BOOM - backhoe, Includes: Ref.#7 - 10

1шт.

7

D95362

BUSHING

- boom cylinder mounting, top

2шт.

8

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- dipper pivot

2шт.

9

D50698

BUSHING,51.03mm ID x 69.98mm OD x 40.64mm L

- boom pivot

2шт.

10

D50004

BLOCK

- tapped, welded to boom, if used

2шт.

10a

D88417

CAGE ASSY.

CAGE - weld to boom for retaining Ref.#10B, if used

1шт.

10b

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC, if used

1шт.

11

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer, between swing tower and boom .035" Thk

1шт.

12

D49866

PIN,38.1mm OD x 96.52mm L

- boom cylinder to swing tower

2шт.

13

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex head, 3/8" - 16 NC x 3-3/4"

2шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

15

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer, flat, 1-1/2" (38 mm) ID

1шт.

16

REF

INSTRUCTION

CYLINDER - boom, see Fig. 44 or 46 for the correct assembly and components

2шт.

17

D49865

PIN,50.8mm OD x 304.8mm L

- boom, Serial Range: cylinder-boom

1шт.

18

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

19

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

20

195-2155

WASHER,2 1/16" x 3" x .109"

- spacer, flat, 2" (51 mm) ID

1шт.

21

REF

INSTRUCTION

CYLINDER - dipper, see Fig. 48 or 50 for the correct assembly and components

1шт.

22

D72359

PIN,44.45mm OD x 142.24mm L

- dipper, Serial Range: cylinder-boom

1шт.

23

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

24

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4" (44 mm) ID

2шт.

25

D52522

PIN,44.45mm OD x 211.84mm L

- dipper, Serial Range: cylinder-dipper

1шт.

26

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - spacer, 1-3/4" (44 mm) ID

1шт.

27

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

28

D45523

PIN,50.8mm OD x 276.35mm L

-, Serial Range: boom-dipper

1шт.

29

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer, 2" (51 mm) ID .035" Thk

1шт.

30

72990

WASHER

- 2" (51 mm) ID x 1/16" (1.5 mm) thick

2шт.

31

195-2155

WASHER,2 1/16" x 3" x .109"

- 2" (51 mm) ID x 1/8" (2.7 mm) thick

2шт.

32

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

33

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

34

D83825

BLOCK

- tapped, welded to boom, USED WITH EXTENDABLE DIPPER

3шт.

35

D52843

BLOCK

- tapped, welded to boom, USED WITH EXTENDABLE DIPPER

2шт.

36

D50004

BLOCK

- tapped, welded to boom, if used, USED WITH EXTENDABLE DIPPER

1шт.

37

D52569

BLOCK

- tapped, welded to boom, if used, USED WITH EXTENDABLE DIPPER

1шт.

38

D45559

BRACKET

- tube clamp, welded to boom, USED WITH EXTENDABLE DIPPER

2шт.
