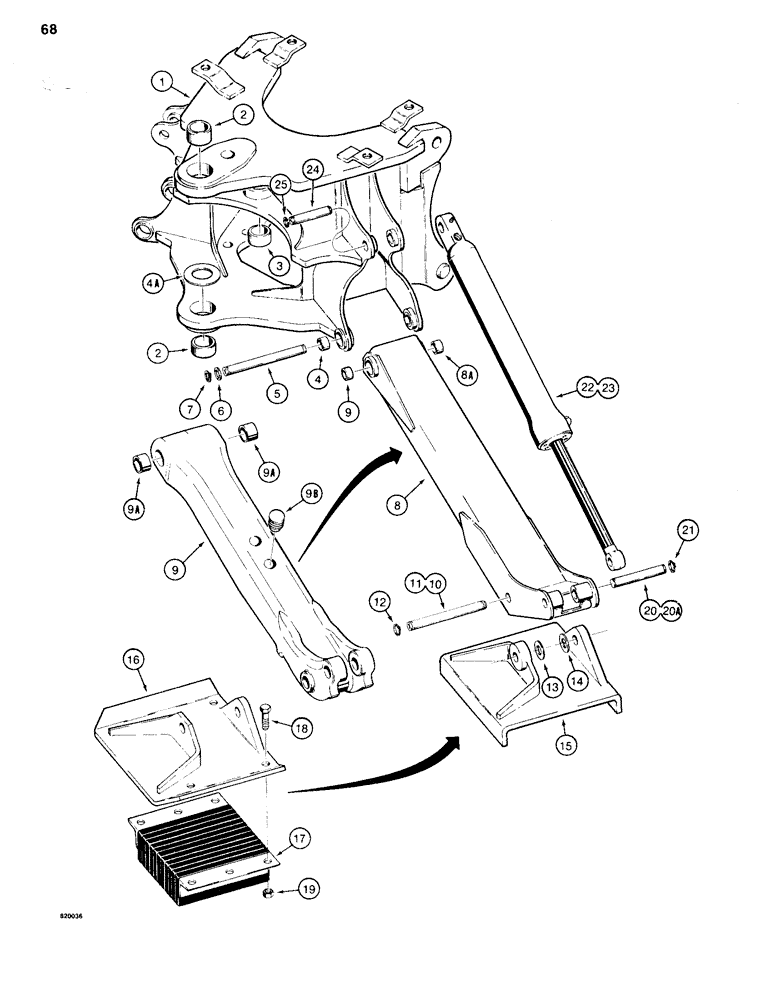

Запчасти Case 35WL (68) - MOUNTING FRAME AND STABILIZERS

1

D90810

FRAME

- backhoe mounting, Includes: Ref.#2 - 4A

1шт.

2

D90722

BUSHING,57.38mm ID x 76.2mm OD x 43mm L

- swing tower mounting, upper and lower

2шт.

3

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder plate

2шт.

4

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- stabilizers

4шт.

4a

D73848

WASHER,60mm ID x 120mm OD x 4mm L

- bearing, Serial Range: welds-frame

1шт.

5

D89838

PIN,44.45mm OD x 320mm L

- stabilizer leg to mounting frame

2шт.

6

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- spacer, 1-3/4" (44 mm) ID

4шт.

7

D25280

SNAP RING,#175, Ext

Ring, Snap, , D89838 pin #175, Ext

4шт.

8

D87732

STABILIZER

LEG - stabilizer, cast design, Includes Ref.#8A

2шт.

8a

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- leg to frame, Ref.#8 only

2шт.

9

D94215

STABILIZER

LEG - stabilizer, cast design, Includes Ref.#9A and 9B

2шт.

9a

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- leg to frame, Ref.# 8A only

2шт.

9b

D120450

PLUG

- leg, Ref.#8A only

4шт.

10

D28648

PIN,1.5" OD x 10 7/16" L

- D88427 stabilizer, Serial Range: plate-leg

2шт.

11

D50696

PIN,38.1mm OD x 225.55mm L

- D61376 stabilizer, Serial Range: plate-leg

2шт.

12

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

13

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- shim, 2-1/2" (63.5 mm) OD x 7/64" (3 mm) thick

1шт.

14

D31312

WASHER

- shim, 2-3/4" (70 mm) OD x 1/16" (1.6 mm) thick

1шт.

15

D88427

PLATE

- stabilizer, cleated, if used

2шт.

16

D61376

STABILIZER

PLATE - stabilizer, street or cemetary pad, if used, uses D61368 pad

2шт.

17

D61368

PAD

Rubber, D61376 stabilizer plate, if used

2шт.

18

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

19

129-108

NUT,3/4"-10, G5

8шт.

20

D50695

PIN,38.1mm OD x 195.33mm L

- stabilizer cylinder to leg, used with Ref.#8

2шт.

20a

D26002

PIN,38.1mm OD x 187.32mm L

- stabilizer cylinder to leg, used with Ref.#9

2шт.

21

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

22

G103252

CYLINDER

- stabilizer, right-hand, parts list Fig. 40

1шт.

23

G103253

CYLINDER

- stabilizer, left-hand, parts list Fig. 40, not shown

1шт.

24

D32930

PIN,38.1mm OD x 127mm L

- stabilizer, Serial Range: cylinder-frame

2шт.

25

D25279

SNAP RING,M35, Int

- pin retaining

4шт.
