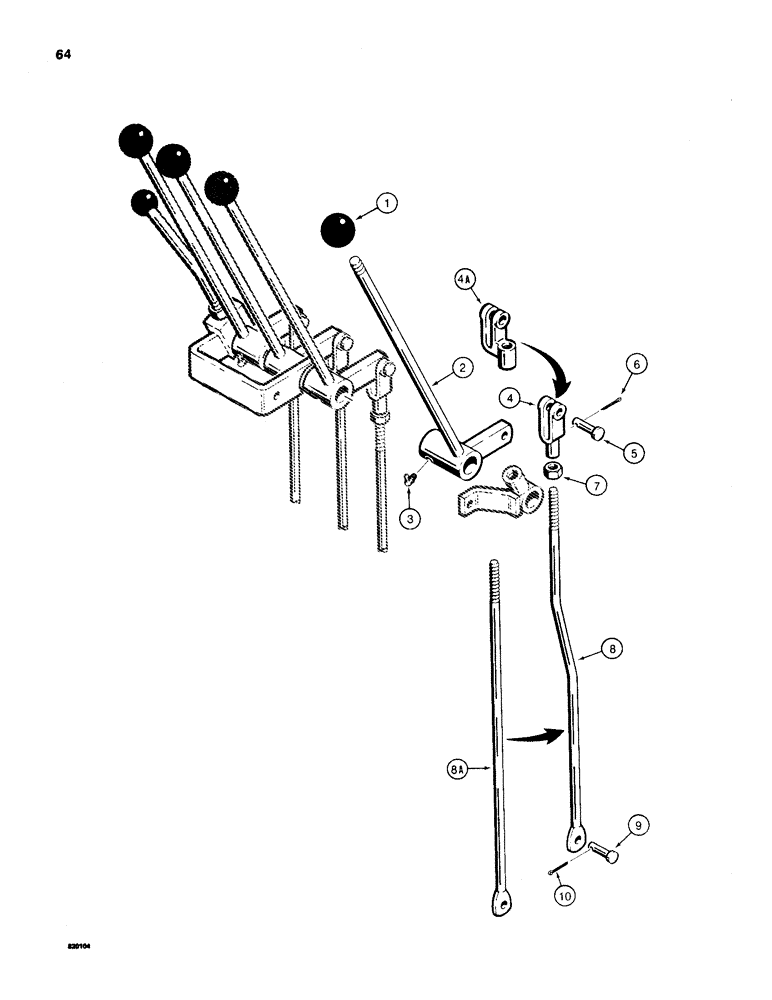

Запчасти Case 35WL (64) - EXTENDABLE DIPPER CONTROL

1

L54563

KNOB

- control lever

1шт.

2

D87528

LEVER

CONTROL LEVER - extendable dipper

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" -28 NF taper

1шт.

4

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8", straight, if used

1шт.

4a

L11182

YOKE,3/8" - 24

CLEVIS - 3/8" - offset, if used

1шт.

5

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

6

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

8

D85919

ROD

- extendable dipper control, bent, uses straight clevis, if used

1шт.

8a

D30821

ROD

- extendable dipper control, straight, uses offset clevis, if used

1шт.

9

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

10

132-26

COTTER PIN

- Split (Cotter), 3/32" x 3/4"

1шт.
