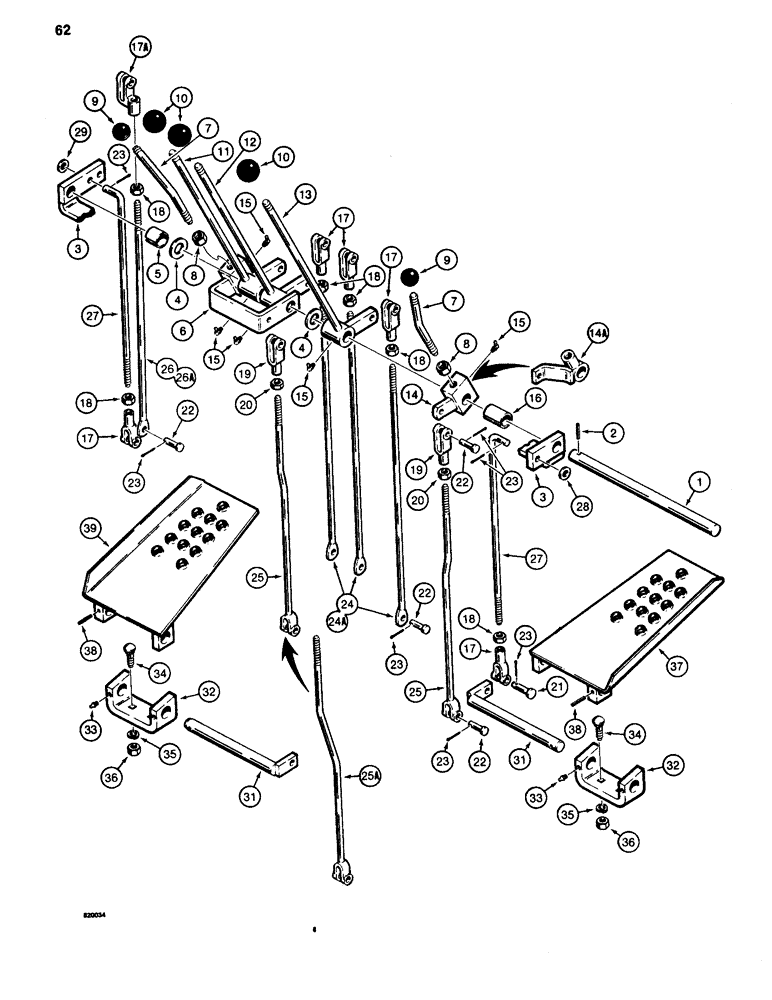

Запчасти Case 35WL (62) - BACKHOE CONTROLS

1

D79526

ROD

SHAFT - control levers

1шт.

2

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

3

D86082

BRACKET

- swing pivot

1шт.

4

195-45

WASHER,3/4"

Used as shim 3/4"

1шт.

5

D88212

BUSHING

SPACER - left-hand, not used with extendable dipper

1шт.

6

D92993

BRACKET

- right-hand stabilizer pivot

1шт.

7

D86249

LEVER

CONTROL LEVER - stabilizer

2шт.

8

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

2шт.

9

D59912

KNOB

- stabilizer control levers

2шт.

10

L54563

KNOB

- boom, dipper, and bucket control levers

3шт.

11

D79531

LEVER

CONTROL LEVER - bucket

1шт.

12

D79530

LEVER

CONTROL LEVER - dipper

1шт.

13

D79529

LEVER

CONTROL LEVER - boom

1шт.

14

D92995

LEVER

- pivot, right-hand stabilizer on models without extendable dipper

1шт.

14a

D87834

LEVER

- pivot, right-hand stabilizer on models with extendable dipper

1шт.

15

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 NF taper

5шт.

16

D88213

SPACER

- right-hand, not used with extendable dipper

1шт.

17

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8", straight

5шт.

17a

L11182

YOKE,3/8" - 24

CLEVIS - 3/8", offset, if used

1шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NC

6шт.

19

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - 5/16"

2шт.

20

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NC

2шт.

21

141-54

CLEVIS PIN,3/8" x 1 1/16"

6шт.

22

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

8шт.

23

132-26

COTTER PIN

- Split (Cotter), 3/32" x 3/4"

16шт.

24

D81902

ROD

- boom, dipper, and bucket control without extendable dipper

3шт.

24a

D30821

ROD

- boom, dipper, and bucket control with extendable dipper, straight, uses offset clevis, if used

3шт.

25

D85934

ROD

- stabilizer control

1-2шт.

25a

D87482

ROD

- left-hand stabilizer control on models with extendable dipper

1шт.

26

D85919

ROD

- swing bracket to valve, bent uses straight clevis, if used

1шт.

26a

D30821

ROD

- swing bracket to valve, straight uses offset clevis, if used, not shown

1шт.

27

D81905

ROD

- swing pedal, Serial Range: shafts-bracket

2шт.

28

195-25

WASHER,3/8"

RH 3/8"

1шт.

29

T40163

WASHER

- flat, left-hand

1шт.

31

D89317

SHAFT

- swing pedal

2шт.

32

D92817

BRACKET

- swing pedal shaft

2шт.

33

219-17

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16", drive

4шт.

34

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

- 3/8" - 16 NC x 1-1/4"

4шт.

35

92-6

LOCK WASHER,3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

37

D87886

PEDAL

- swing, right-hand

1шт.

38

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

39

D87888

PEDAL

- swing, left-hand

1шт.
