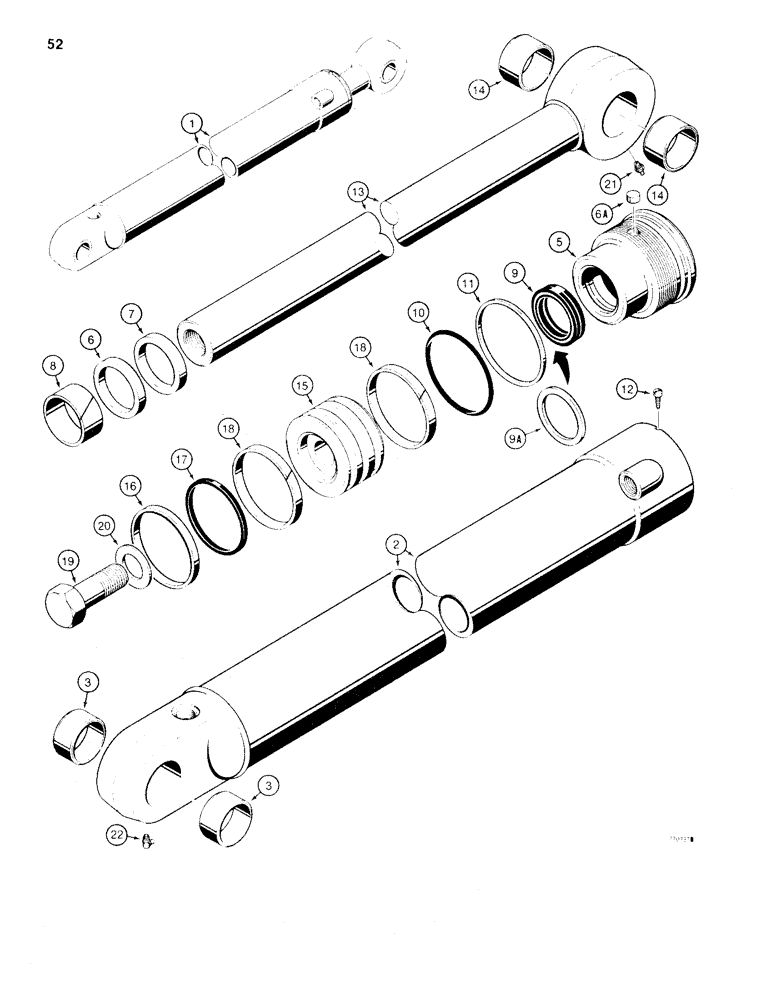

Запчасти Case 35WL (52) - G101176 BUCKET CYLINDER

1

G101176

CYLINDER

ASSEMBLY - bucket, 3-1/2" (89 mm) ID x1/2" (775 mm) stroke, Includes: Ref.#2 - 11

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

2

G32399

CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref.#3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G104402

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

6a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of seal kit P/N G105546

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit P/N G105546

1шт.

9

D36971

RING

SEAL - piston rod, wide

1шт.

Part of seal piston rod service option P/N G100778

1шт.

Part of seal kit P/N G105546

1шт.

9a

G102647

SEAL

- piston rod, narrow, used in addition to Ref.#9 in some glands

1шт.

Part of seal kit P/N G105546

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G105546

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G105546

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

13

G33162

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref.#14

1шт.

14

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

15

G100694

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G105546

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G105546

1шт.

18

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- wear, piston

2шт.

Part of seal kit P/N G105546

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G105546

SEAL

KIT - seal, Includes: Ref.# 7 - 11, 16, 17 and 18, same as G102402 kit plus Ref.# 9A above

1шт.

G100778

SEAL

- piston rod, service option - servere heat or cold, Includes: Ref. 9

1шт.
