Запчасти Case 35WL (38) - HYDRAULIC QUICK DISCONNECT COUPLINGS, BACKHOE LINES, D52800 FEMALE COUPLING - PIPE THREAD

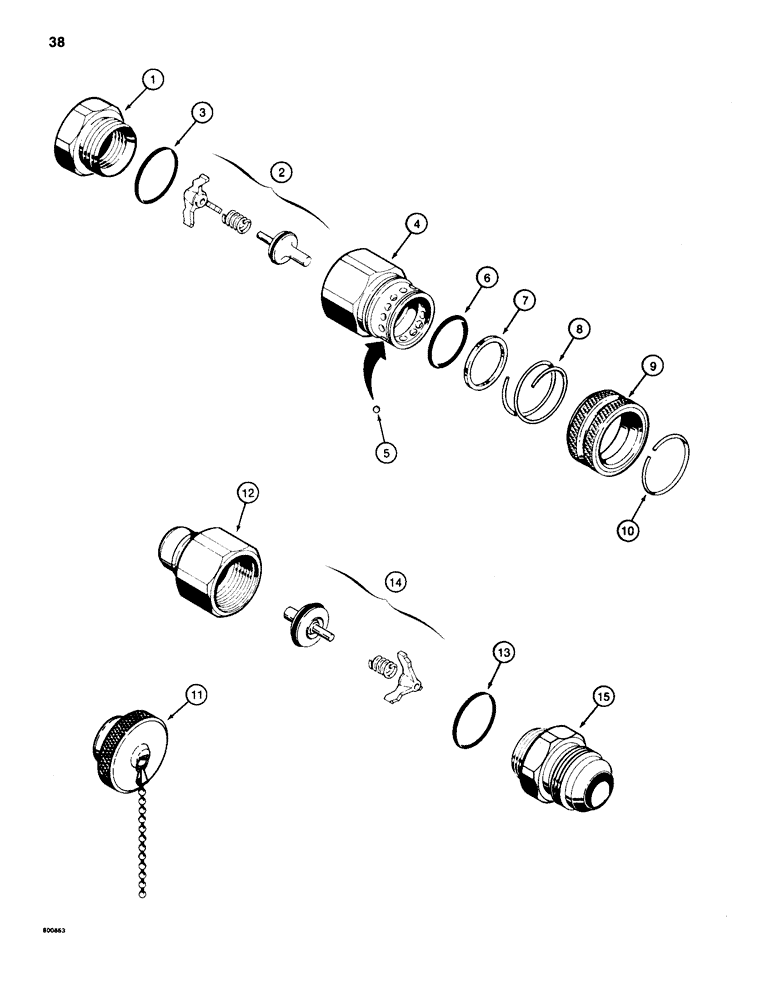

Схема запчастей Case 35WL - (38) - HYDRAULIC QUICK DISCONNECT COUPLINGS, BACKHOE LINES, D52800 FEMALE COUPLING - PIPE THREAD

Артикул

Название

Примечание

Количество

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, Includes: Ref.#1 - 10

1шт.

1

D31975

FITTING

- end, coupling

1шт.

2

D53915

VALVE

ASSEMBLY - coupling

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- coupling

1шт.

4

D53916

BODY

- coupling

1шт.

5

211-6

BALL,7/32" Dia

steel 7/32" Dia

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

O-RING - body, coupling

1шт.

7

D54276

RING

BACKUP RING - O-ring

1шт.

8

D31979

VALVE SPRING

SPRING - sleeve

1шт.

9

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining

1шт.

10

D31981

RING

RETAINING RING - sleeve

1шт.

11

D39924

PLUG

- dust, for female coupling

1шт.

D90260

FITTING

COUPLING - quick disconnect, male , D90260, Includes: Ref.#12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - coupling, male , D90260

1шт.

N6906

SET

KIT - valve and seal, coupling , D90260 MALE, Includes: Ref.#13 & 14

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- coupling , D90260 MALE

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - coupling , D90260 MALE

1шт.

15

NSS

NOT SOLD SEPARAT

FITTING - end, coupling , D90260 MALE

1шт.

Выбрано товаров: 18
