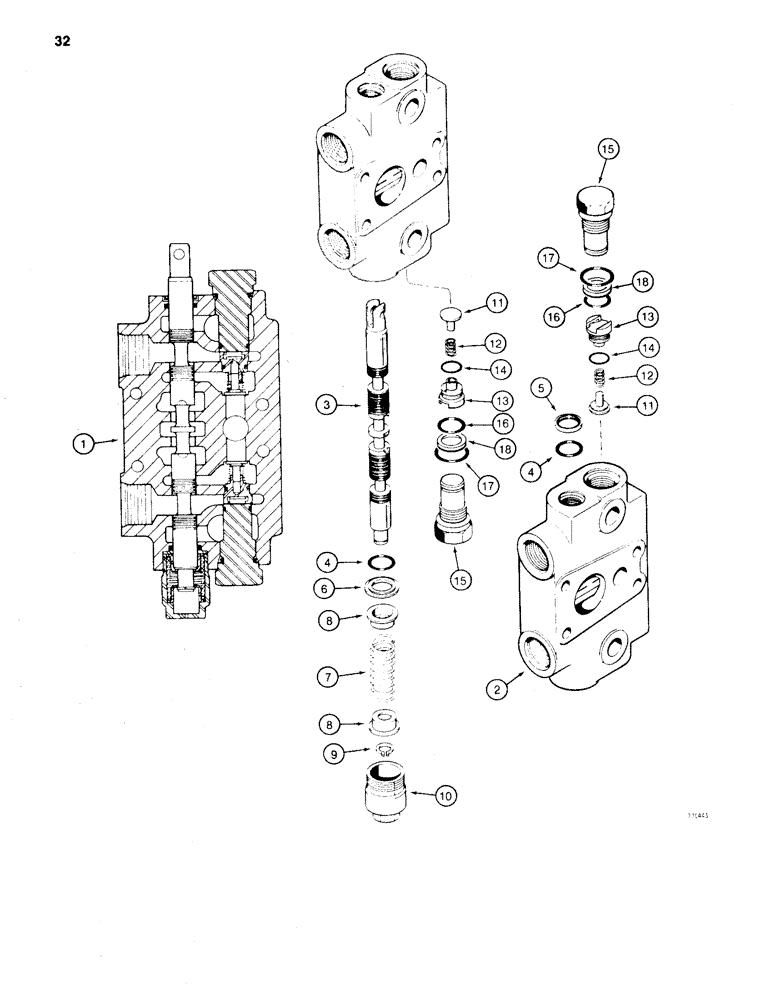

Запчасти Case 35WL (32) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION

1

G103404

SEGMENT

SECTION ASSEMBLY - dipper extension, Includes: Ref.#2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

6

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

7

G34463

SPRING

CENTERING SPRING - spool

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

10

G33080

CAP

- centering spring

1шт.

11

G33081

VALVE POPPET

POPPET - load check valve

2шт.

12

G33573

SPRING

- load check valve

1шт.

13

G33084

PLUG

- load check valve

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

15

G33122

PLUG,ORB

ASSEMBLY - circuit relief valve port, Includes: Ref.#16 -18

2шт.

16

G100959

O-RING,0.744" ID x 0.879" OD

- plug, small

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, large

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - O-ring, small, if used

1шт.
