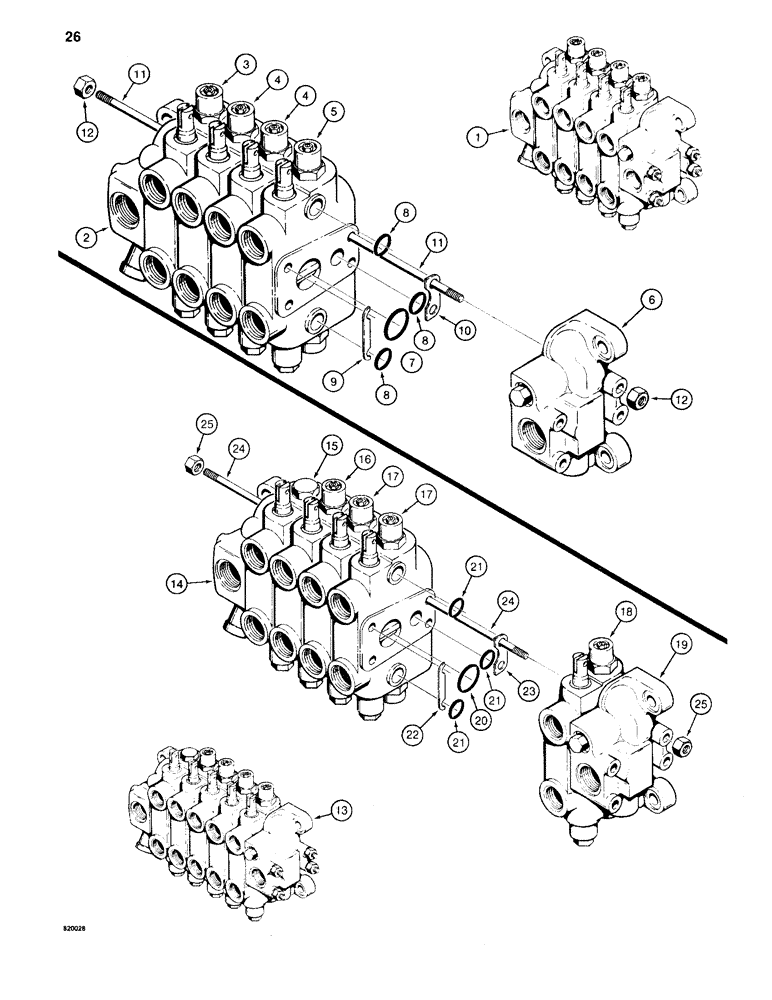

Запчасти Case 35WL (26) - BACKHOE CONTROL VALVES

1

G103392

VALVE

CONTROL VALVE ASSEMBLY - without extendable dipper, Includes: Ref.#2 - 12

1шт.

2

G33108

MANIFOLD

OUTLET SECTION - parts list Fig. 28

1шт.

3

G103398

VALVE BLOCK

BOOM SECTION - parts list Fig. 36, used with G103392 control valve assembly

1шт.

4

G103400

SEGMENT

DIPPER AND BUCKET SECTION - parts list Fig. 30, used with G103392 control vavle assembly

2шт.

5

G103402

BLOCK

SWING SECTION - parts list Fig.34, used with G103392 control valve assembly

1шт.

6

G33102

MANIFOLD

INLET SECTION - parts list Fig. 28

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

5шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, small

15шт.

9

G33964

SHIM,.002" Thk

Section, Port side of control valve .002" Thk

5шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

5шт.

11

G34942

TIE-ROD

STUD - tie, 3/8" - 16 NC x 13-3/4"

4шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

13

G103393

CONTROL VALVE ASSEMBLY - with extendable dipper, Includes: Ref.#14 - 25

1шт.

14

G33108

MANIFOLD

OUTLET SECTION - parts list Fig.28

1шт.

15

G103404

SEGMENT

DIPPER EXTENSION SECTION - parts list Fig. 32

1шт.

16

G103398

VALVE BLOCK

BOOM SECTION - parts list Fig. 36, used with G103393 control valve assembly

1шт.

17

G103400

SEGMENT

DIPPER AND BUCKET SECTION - parts list Fig.30, used with G103393 control valve assemblyø

2шт.

18

G103402

BLOCK

SWING SECTION - parts list Fig. 34, used with G103393 control valve assembly

1шт.

19

G33102

MANIFOLD

INLET SECTION - parts list Fig. 28

1шт.

20

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

6шт.

21

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, small

18шт.

22

G33964

SHIM,.002" Thk

Section, Port side of control valve .002" Thk

6шт.

23

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

6шт.

24

G34675

TIE-ROD

STUD - tie, 3/8" - 16 NC x 15-3/4"

4шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.
