Запчасти Case 35WL (22) - EXTENDABLE DIPPER HYDRAULIC CIRCUIT

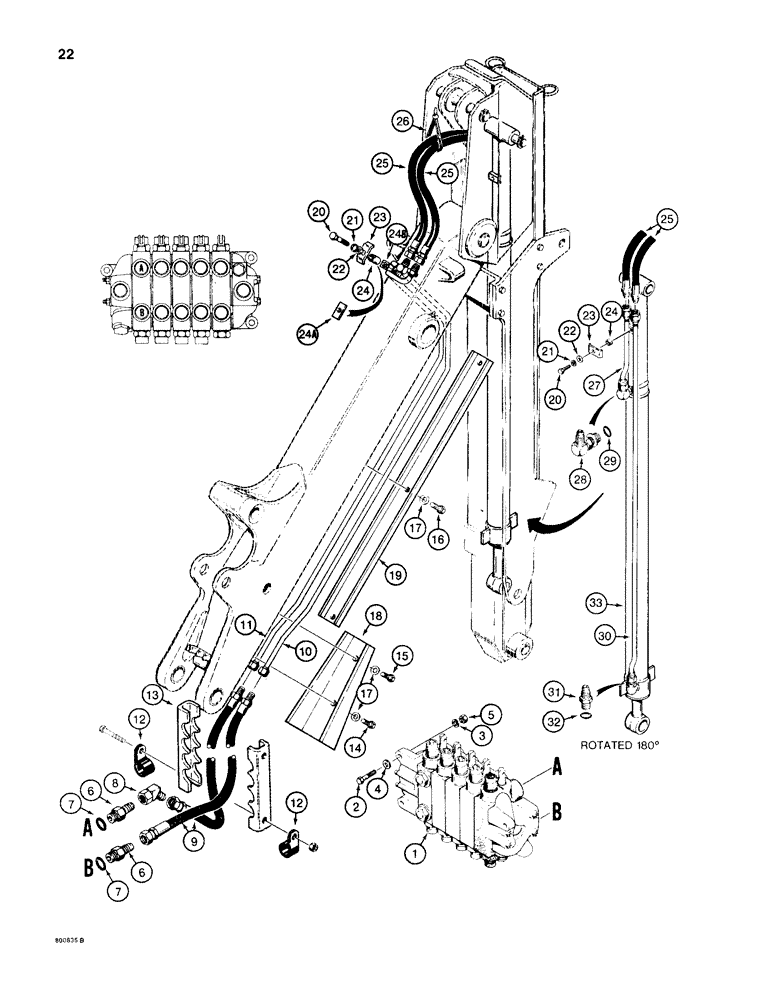

Схема запчастей Case 35WL - (22) - EXTENDABLE DIPPER HYDRAULIC CIRCUIT

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Fig. 26, for mounting plate, see Fig. 8

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref.#7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

8

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, upper port

1шт.

9

D93649

HOSE,12.7mm ID x 1200mm L, SAE 100R2

From Control Valve 12.70 mm ID x 1200.00 mm, SAE 100R2

2шт.

10

D93646

HYD TUBE

TUBE - right-hand

1шт.

11

D93648

HYD TUBE

TUBE - left-hand

1шт.

12

S88820

CLAMP

- hose

2шт.

13

REF

INSTRUCTION

CLAMP - hoses, see items 10-14 on Fig.20

1шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

16

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex head, 1/2" - 13 NC x 3/4"

3шт.

17

95-8

WASHER,1/2"

flat 1/2"

5шт.

18

D93678

GUARD

- tube, lower

1шт.

19

D54137

GUARD

- tube, upper

1шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" -16 NC x 1-1/2", used with one spacer

1-2шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Used with two spacers - Ref.# 24 and 24A Hex, 3/8"-16 x 1 3/4", G5

1шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

195-25

WASHER,3/8"

1шт.

23

D42504

CLAMP

- tube

2шт.

24

D76209

SPACER

- tube clamp

2шт.

24a

D76302

BLOCK

SPACER - flat, if used

1шт.

24b

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC, if used

1шт.

25

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- to cylinder, 40" (1016 mm) long

2шт.

26

L18331

CABLE TIE,375.9mm L, Nylon

STRAP - wire harness

1шт.

27

D52572

TUBE

- to cylinder, closed end

1шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, Incl. Ref.#29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

30

D52574

TUBE

- to cylinder, rod end

1шт.

31

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref.#32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

33

G101183

CYLINDER

- dipper extension, parts list Fig. 54

1шт.
