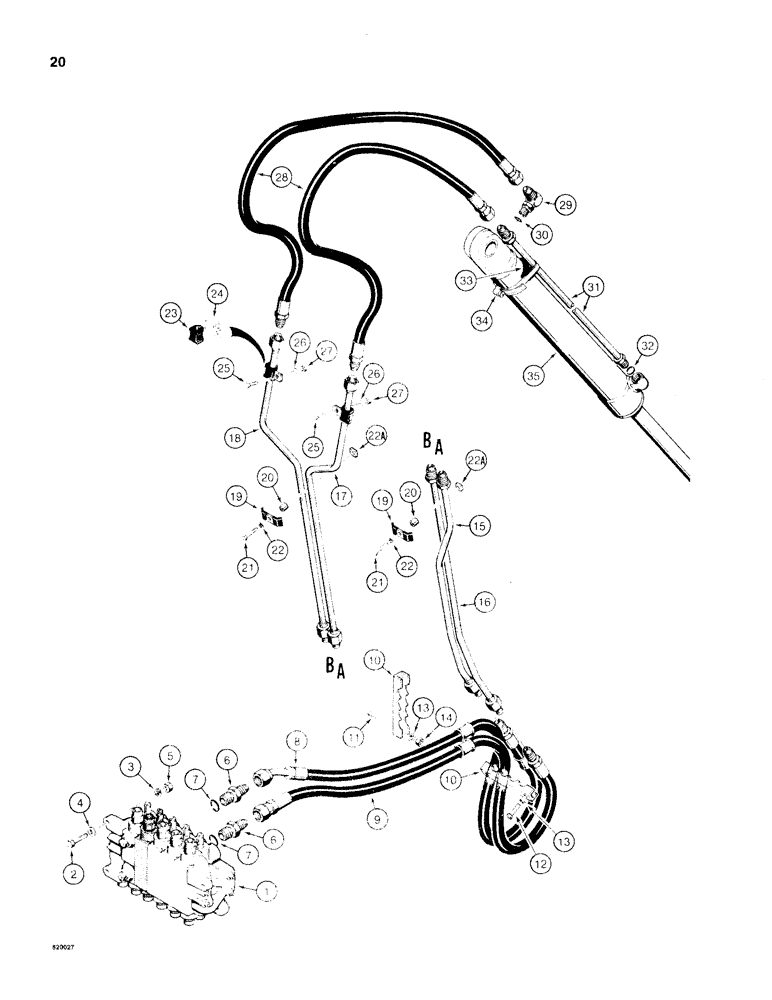

Запчасти Case 35WL (20) - BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 26, for valve mounting plate see Fig. 8

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref.#7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

8

D88973

HOSE,15.88mm ID x 1270mm L, SAE 100R2

- top port, 50" (1270 mm) long

1шт.

9

D88974

HOSE,15.88mm ID x 1190mm L, SAE 100R2

- bottom port, 46-7/8" (1190 mm) long

1шт.

10

D92721

CLAMP

- hose

2шт.

11

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

12

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex head, 1/2" - 13 NC x 1-3/4"

2шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

15

D89502

HYD TUBE,19.05 mm OD x 90, 971 mm L

TUBE - from top port

1шт.

16

D89500

HYD TUBE,19.05 mm OD x 1001, 101 mm L

TUBE - from bottom port

1шт.

17

D77848

TUBE

- right-hand, upper

1шт.

18

D77846

TUBE

- left-hand, upper

1шт.

19

D40236

CLAMP

-, Serial Range: tubes-boom

2шт.

20

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

22a

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC, if used

2шт.

23

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

2шт.

24

D74192

CLAMP

- tube

2шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

26

195-25

WASHER,3/8"

2шт.

27

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

28

D52566

HOSE

- to bucket cylinder, 70" (1778 mm) long

2шт.

29

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, at closed end port, Includes: Ref.#30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

31

D55050

HOSE

TUBE - to rod end port, Includes: Ref.#32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tube

1шт.

33

D38648

BLOCK

SPACER - tube, rubber

1шт.

34

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube

1шт.

35

G101176

CYLINDER

- bucket, parts list Fig.52

1шт.
