Запчасти Case 35C (8-14) - BOOM CYLINDER HYDRAULIC CIRCUIT, MODELS WITH TWO BOOM MOUNTING PINS AT SWING TOWER (08) - HYDRAULICS

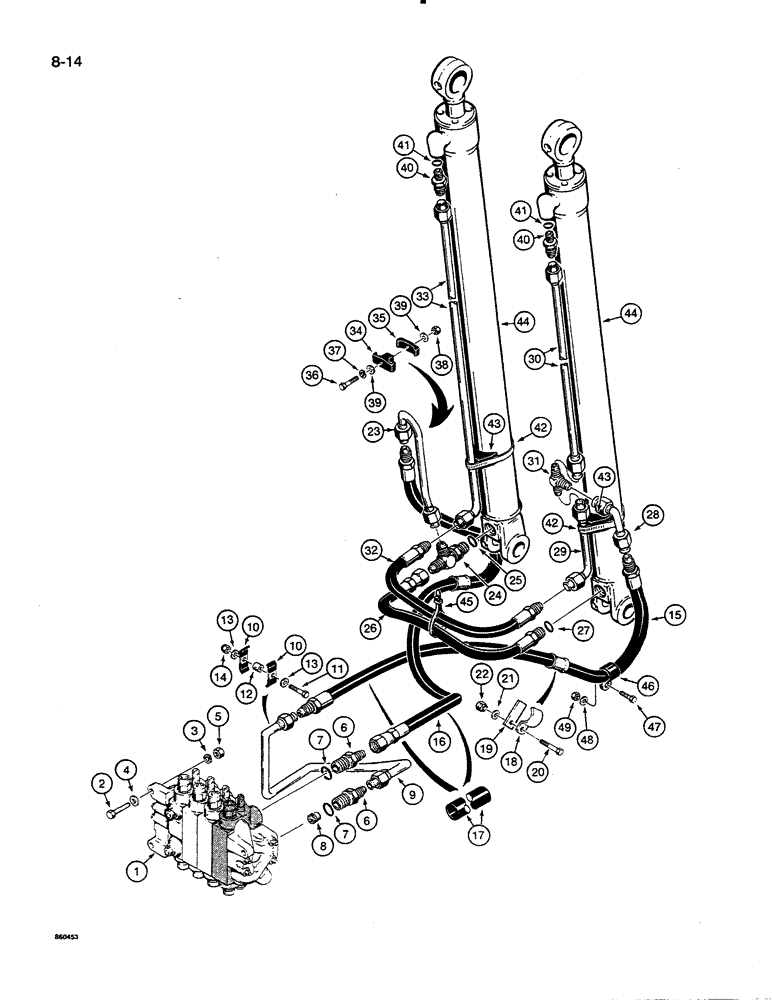

Схема запчастей Case 35C - (8-14) - BOOM CYLINDER HYDRAULIC CIRCUIT, MODELS WITH TWO BOOM MOUNTING PINS AT SWING TOWER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, backhoe, parts list Figure 8-40, for mounting plate see Figure 8-2

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

95-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 1/8 inch

3шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 7

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

D93207

FITTING

RESTRICTOR - check, lower port

1шт.

9

D88964

TUBE,0.75" OD

- lower port

1шт.

10

D40236

CLAMP

- metal, boom tube to swing tube

2шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

12

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- used with metal tube clamps

1шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

14

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

15

D129635

HOSE ASSY.,15.88mm ID x 1325mm L, SAE 100R2

HOSE - 52-1/8 inch (1325 mm) long, lower port, to right-hand cylinder

1шт.

16

D129634

HOSE ASSY.,15.88mm ID x 1336mm L, SAE 100R2

HOSE - 52-5/8 inch (1336 mm) long, upper port, to left-hand cylinder

1шт.

17

D131789

SLEEVE

- D129634 and D129635 hoses

2шт.

18

D93472

CLAMP

- hose, at swing tower

2шт.

19

D93471

PLATE

- clamp

2шт.

20

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

21

D41740

WASHER

- flat, 3/8 inch, hardened

2шт.

22

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

23

D69421

HYD TUBE,0.75" OD

TUBE - closed end of left-hand cylinder

1шт.

24

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch flare branch x flare x adj O-ring boss, Includes: Ref. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

26

D50732

HOSE,12.7mm ID x 652.78mm L, SAE 100R2

- 25-11/16 inch (653 mm) long, crossover, closed end circuit, Includes: Ref. 27

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

28

D121777

TUBE

- hose to right-hand cylinder tee

1шт.

29

D121779

TUBE

- tee at right-hand cylinder to crossover hose

1шт.

30

S207953

TUBE,19.05 mm OD x 760 mm L

- to rod end of right-hand cylinder

1шт.

31

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare, right-hand cylinder tubes

1шт.

32

D65886

HOSE,12.7mm ID x 457.2mm L, SAE 100R2

- 18 inch (457 mm) long, crossover, rod end circuit

1шт.

33

D69234

HYD TUBE,0.75" OD x 41.4, 2.75" L

TUBE - to rod end of left-hand cylinder

1шт.

34

D124301

CLAMP,3/4" ID

- plastic, tube, used with item 35

1шт.

35

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

- plastic, tube

1шт.

36

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

38

425-106

NUT,3/8"-16, Cl 5

1шт.

39

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

40

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 fl x 7/8-14 inch O-ring boss, Includes: Ref. 41

2шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

42

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 - 4-1/2 inch dia, cylinder tube

2шт.

43

D38648

BLOCK

SPACER - clamp

2шт.

44

G106168

CYLINDER,Double Acting, 44.45mm Rod, 1062.99mm Stroke

ASSEMBLY - boom, parts list Figure 8-72

2шт.

44

G106168R

REMAN-HYD CYLINDER

35C, 35C WL, Both BACKHOE, ASSEMBLY, boom

2шт.

44

G106168C

CORE-HYD CYLINDER

Return Number

2шт.

45

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

46

S88820

CLAMP

- hose, at swing tower

2шт.

47

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

48

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

49

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.
