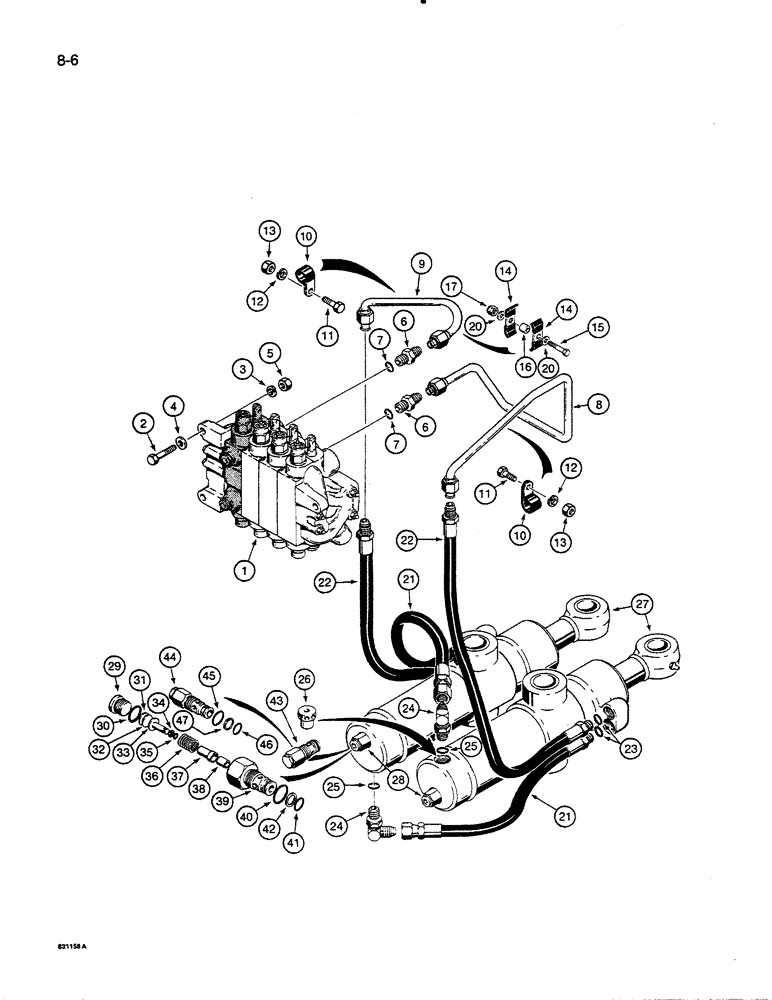

Запчасти Case 35C (8-06) - SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, backhoe, parts list Figure 8-40, for mounting plate see Figure 8-2

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

95-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 1/8 inch

3шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

6

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 7

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

D94546

HYD TUBE

TUBE - lower port to right-hand swing cylinder

1шт.

9

D94544

HYD TUBE,15.88 mm OD x 479, 70 mm L

TUBE - upper port to left-hand swing cylinder

1шт.

10

T50103

CLAMP

- P-type, tube

2шт.

11

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

D40236

CLAMP

- metal, swing tube to boom tube, replaces plastic tube clamps on some models

2шт.

15

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

16

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- used with metal tube clamp

1шт.

17

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

18

RESERVED

1шт.

19

RESERVED

1шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

21

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- 24 inch (610 mm) long, swing cylinders

2шт.

22

D94547

HOSE

- 22-3/4 inch (577 mm) long, tubes to swing cylinders, Includes: Ref. 23

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

D121828

VALVE

RESTRICTOR - flow control, with or without extendable dipper

2шт.

27

REF

INSTRUCTION

CYLINDER ASSEMBLY - swing, for correct assembly and components see Fig. 8-68 & 8-70

2шт.

28

D47557

VALVE

ASSEMBLY - relief, Allen head, if used, Includes: Ref. 29 - 42

2шт.

29

D40354

PLUG

- relief valve

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

31

D40355

SHIM,.005" Thk

Spring guide (0.127 mm) .005" Thk

1шт.

32

16917

SHIM

- spring guide, .0105 inch (0.267 mm) thick

1шт.

33

N7985

GUIDE

- spring

1шт.

34

D37147

RING

- backup, spring guide

1шт.

35

A51274

O-RING,0.145" ID x 0.285" OD

- spring guide

1шт.

36

D37148

SPRING

- plunger

1шт.

37

D37151

PLUNGER

- relief valve

1шт.

38

D37075

SEAT

- plunger

1шт.

39

D47667

CAP

BODY - relief valve

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

41

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- valve body

1шт.

42

D37031

REGULATOR

RING - backup, valve body seal

1шт.

43

D55017

VALVE

ASSEMBLY - relief, hex head, if used, for service order Ref. 28, Includes: Ref. 44 - 47

2шт.

44

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - relief valve

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

46

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- inner

1шт.

47

D37071

RING

- backup, inner o-ring

1шт.
