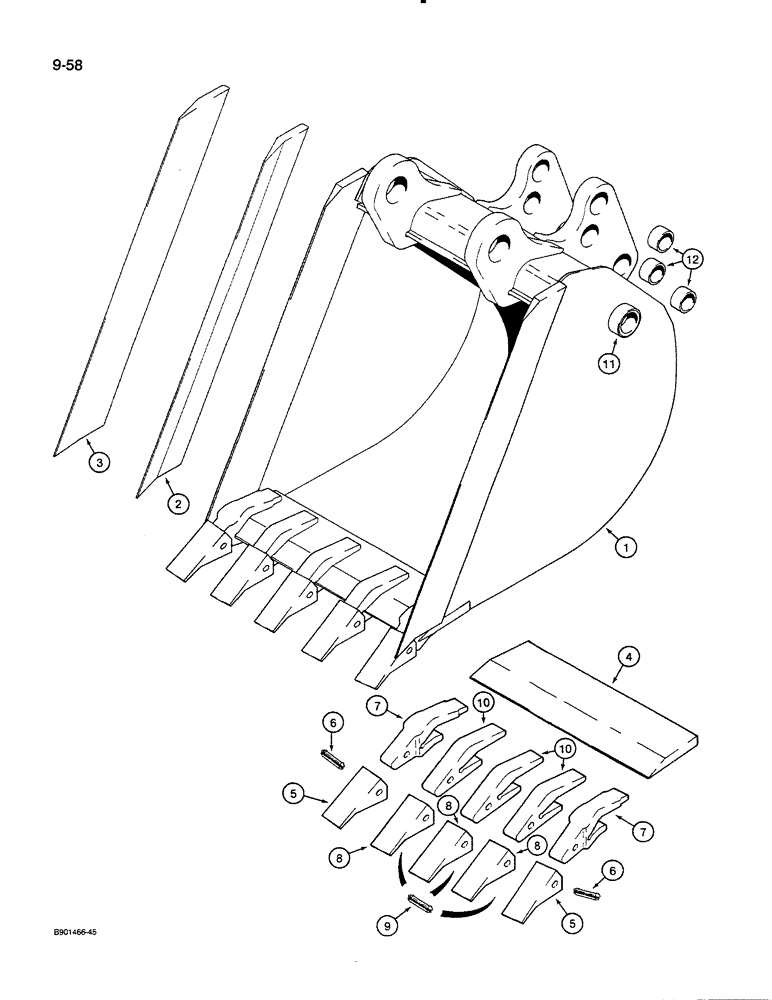

Запчасти Case 35C (9-58) - BACKHOE BUCKET, 855E CRAWLER MODELS - 24 INCH (610 MM) (09) - CHASSIS/ATTACHMENTS

1

D150348

BUCKET

ASSEMBLY - with 5 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 12

1шт.

2

D146421

EDGE, CUTTING

EDGE - cutting, right-hand side

1шт.

3

D146420

EDGE, CUTTING

EDGE - cutting, left-hand side

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

EDGE - cutting, center, 24 inch bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7

2шт.

5

D51750

BUCKET TOOTH POINT

POINT - tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, outer point and shank

1шт.

7

D138157

SHANK

- tooth, outer corners

2шт.

NSS

NOT SOLD SEPARAT

TOOTH ASSEMBLY - center, Includes: Ref. 8 - 10

3шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, center point and shank

1шт.

10

D48212

SHANK

- tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

6шт.
